| Kondisi | Used |
|---|---|
| Lokasi | KALIMANTAN TIMUR |

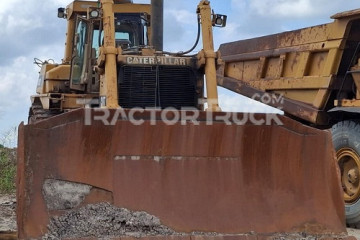

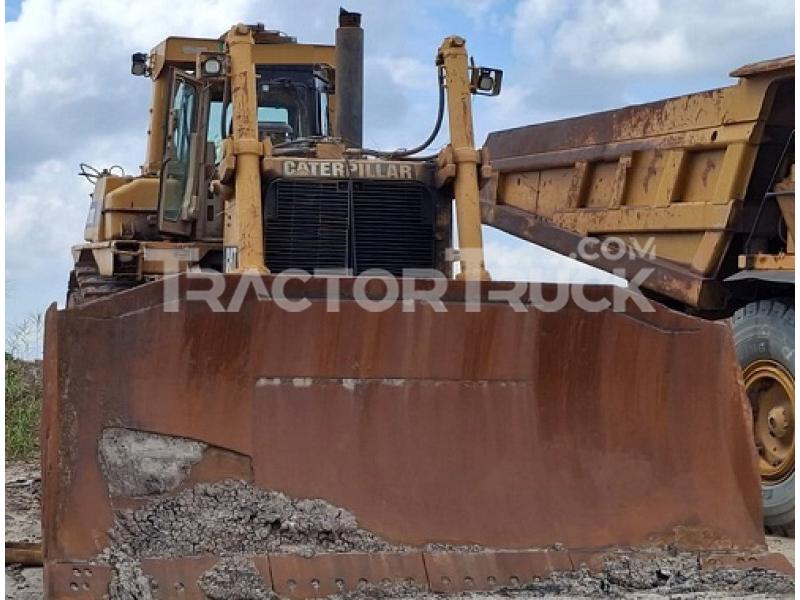

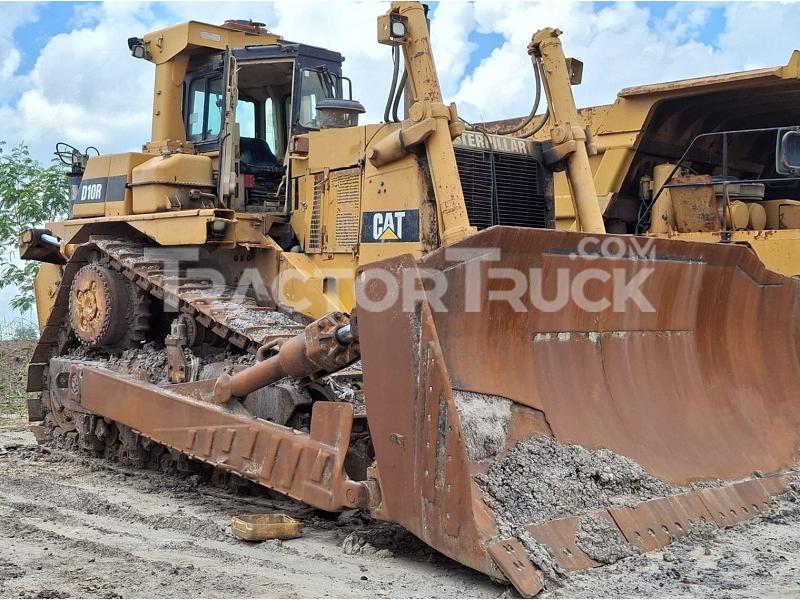

For Bulldozer :
- Brand Caterpillar
- Model D10R
- As Is Condition & Running
- Year Manufacturing 2008
- Location Kalimantan Jobsite - Indonesia
- Price ex Works US$ 195,000 per Unit
Rp. 195 Rb
Technical Specifications
| Length W/ Blade | 7754.1 mm |
|---|---|
| Width Over Tracks | 3160.8 mm |
| Height To Top Of Cab | 4102.6 mm |
| Length Of Track On Ground | 3880.1 mm |
| Ground Clearance | 615.7 mm |
| Length W/Blade | 5334 mm |
| Track Gauge | 213.4 mm |
| Standard Shoe Size | 610.1 mm |
| Ground Contact Area | 4.7 m2 |
| Number Of Track Rollers Per Side | 8 |
| Ground Pressure | 135.3 kPa |
| Number Of Cylinders | 12 |
| Engine Make | 2236 |
| Engine Model | 3412E |
| Gross Power | 457.1 kw |
| Net Power | 425 kw |
| Power Measured @ | 1900 rpm |
| Displacement | 27 L |
| Aspiration | Turbocharged and Aftercooled |
| Operating Weight | 65403.5 kg |
| Fuel Capacity | 1109.1 L |
| Cooling System Fluid Capacity | 132.1 L |
| Engine Oil Capacity | 60.2 L |
| Hydraulic Fluid Capacity | 108.3 L |
| Powertrain Fluid Capacity | 189.3 L |
| Final Drives Fluid Capacity | 23.1 L |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 75 amps |
| Transmission Type | Power shift |
| Number Of Forward Gears | 3 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 12.4 km/h |
| Max Speed - Reverse | 15.6 km/h |
| Relief Valve Pressure | 18615.8 kPa |
| Pump Flow Capacity | 408.8 L/min |
| Width | 5273 mm |
| Height | 2120.9 mm |
| Capacity | 22 m3 |
| Cutting Depth | 675.6 mm |
