| Kondisi | Used |
|---|---|
| Lokasi | BANTEN |
Dijual atas Unit bekas :

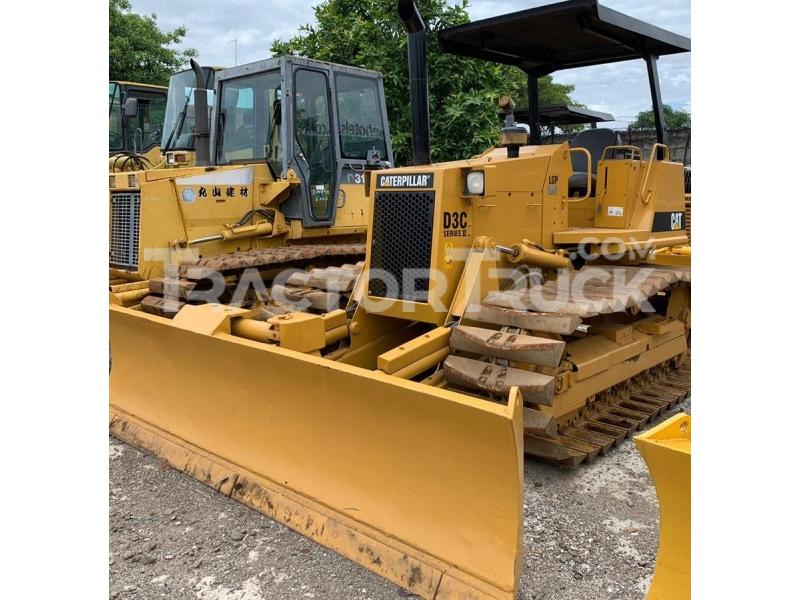

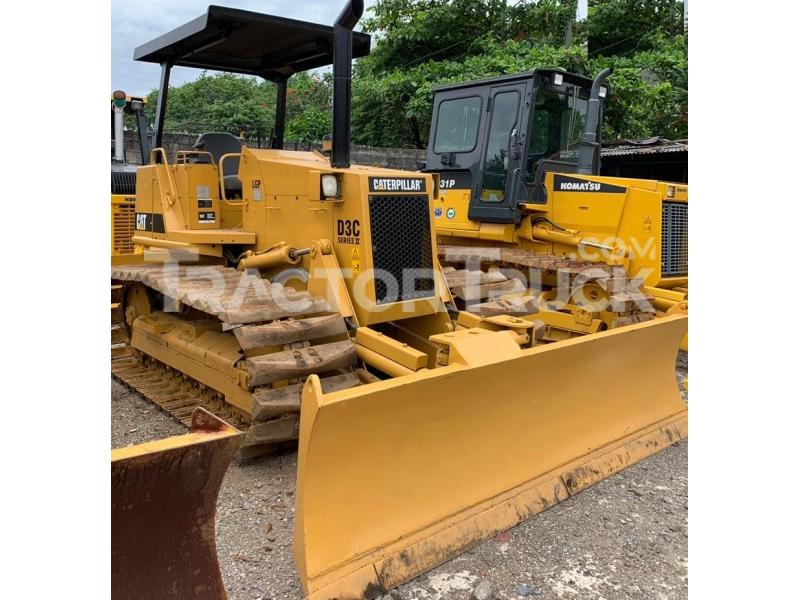

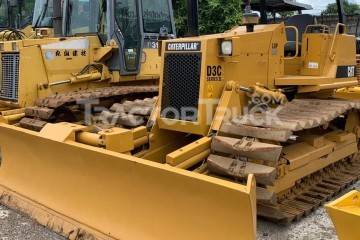

- Bulldozer / Crawler Tractor
- Merek Caterpillar
- Model D3C Seri II
- ex Import / Built Up
- Unit siap kerja
- Harga Rp. 645 Juta
Rp. 645 Jt
Technical Specifications
| Length W/ Blade | 3742.9 mm |
|---|---|
| Width Over Tracks | 1780 mm |
| Height To Top Of Cab | 2667 mm |
| Length Of Track On Ground | 1905 mm |
| Ground Clearance | 295.7 mm |
| Length W/Blade | 2764.5 mm |
| Track Gauge | 1420.4 mm |
| Standard Shoe Size | 356.1 mm |
| Number Of Shoes Per Side | 37 |
| Ground Pressure | 49.6 kPa |
| Ground Contact Area | 1.4 m2 |
| Number Of Track Rollers Per Side | 5 |
| Number Of Cylinders | 4 |
| Engine Make | 2236 |
| Engine Model | 3204 |
| Gross Power | 56.7 kw |
| Net Power | 52.2 kw |
| Power Measured @ | 2400 rpm |
| Displacement | 5.2 L |
| Operating Weight | 7001 kg |
| Fuel Capacity | 121.1 L |
| Cooling System Fluid Capacity | 20.1 L |
| Engine Oil Capacity | 12.1 L |
| Hydraulic Fluid Capacity | 57.2 L |
| Final Drives Fluid Capacity | 8.3 L |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 40 amps |
| Transmission Type | planetary power shift |
| Number Of Forward Gears | 3 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 10.8 km/h |
| Max Speed - Reverse | 11.4 km/h |
| Pump Type | Single-section gear pump |
| Relief Valve Pressure | 17236.9 kPa |
| Pump Flow Capacity | 55.3 L/min |
| Width | 2438.4 mm |
| Height | 840.7 mm |
| Capacity | 1.3 m3 |
| Blade Angle (Both Directions) | 25 degrees |
| Cutting Depth | 398.8 mm |
