Kondisi | Used |
---|---|
Lokasi | JAWA BARAT |

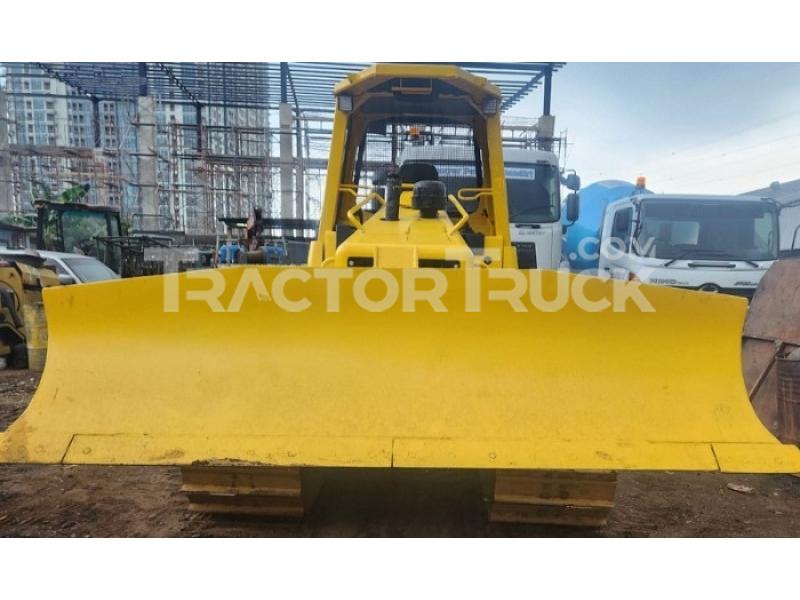

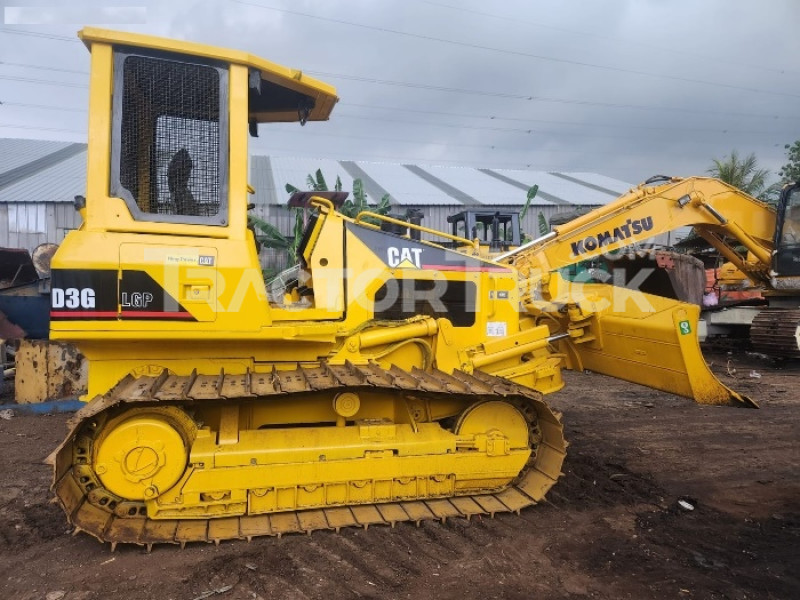

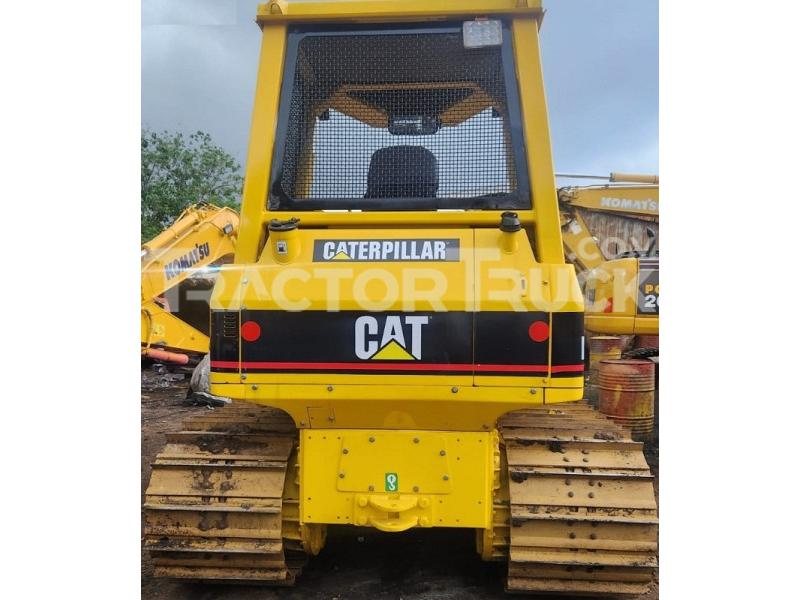

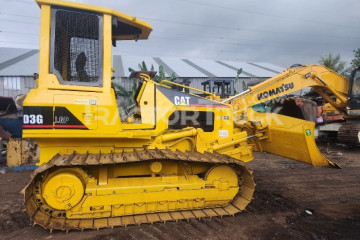

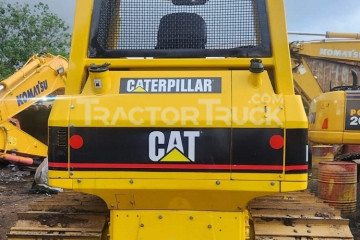

Dijual atas Bulldozer :
- Merek Caterpillar
- Model D3G LGP
- Ex Import /Built Up
- Masuk Indonesia tahun 2017
- Unut siap kerja
- Harga Rp. 585 Juta
Rp. 585 Jt
Technical Specifications
Length W/ Blade | 4020.3 mm |
---|---|
Width Over Tracks | 2310.4 mm |
Height To Top Of Cab | 2770.6 mm |
Length Of Track On Ground | 2057.4 mm |
Ground Clearance | 371.9 mm |
Length W/Blade | 3102.9 mm |
Track Gauge | 1676.4 mm |
Standard Shoe Size | 635 mm |
Number Of Shoes Per Side | 39 |
Ground Pressure | 29.2 kPa |
Ground Contact Area | 2.6 m2 |
Number Of Track Rollers Per Side | 6 |
Engine Make | 2236 |
Engine Model | 3046T |
Gross Power | 57.4 kw |
Net Power | 52.2 kw |
Power Measured @ | 2200 rpm |
Displacement | 5 L |
Operating Weight | 7783.6 kg |
Fuel Capacity | 165 L |
Cooling System Fluid Capacity | 20.8 L |
Engine Oil Capacity | 12.9 L |
Hydraulic Fluid Capacity | 45.4 L |
Final Drives Fluid Capacity | 20.4 L |
Operating Voltage | 12 V |
Alternator Supplied Amperage | 120 amps |
Transmission Type | Hydrostatic |
Number Of Forward Gears | 1 |
Number Of Reverse Gears | 1 |
Max Speed - Forward | 9 km/h |
Max Speed - Reverse | 9.7 km/h |
Relief Valve Pressure | 19994.8 kPa |
Pump Flow Capacity | 60.9 L/min |
Width | 3169.9 mm |
Height | 843.3 mm |
Capacity | 1.5 m3 |
Blade Angle (Both Directions) | 25 degrees |
Cutting Depth | 525.8 mm |
