| Kondisi | Used |
|---|---|
| Lokasi | DKI JAKARTA |

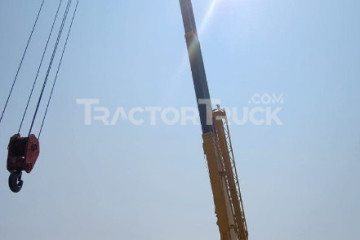

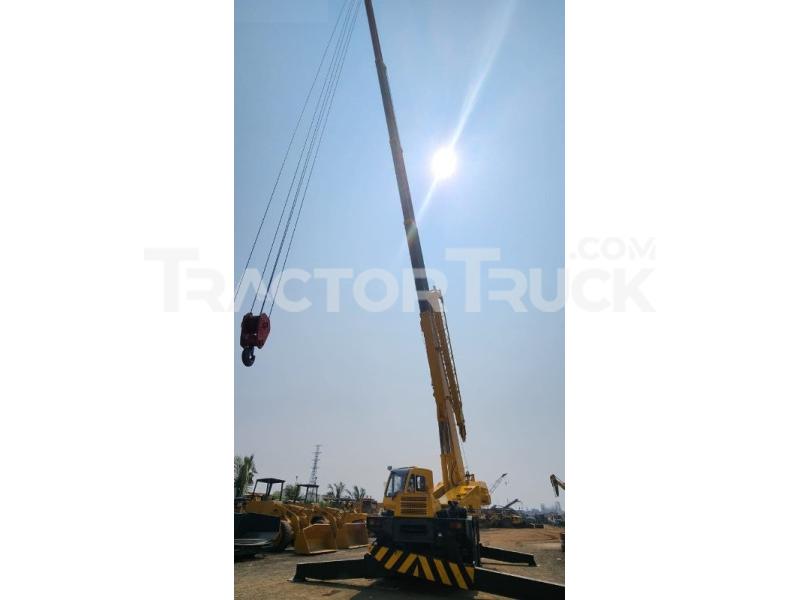

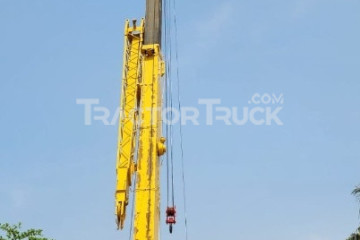

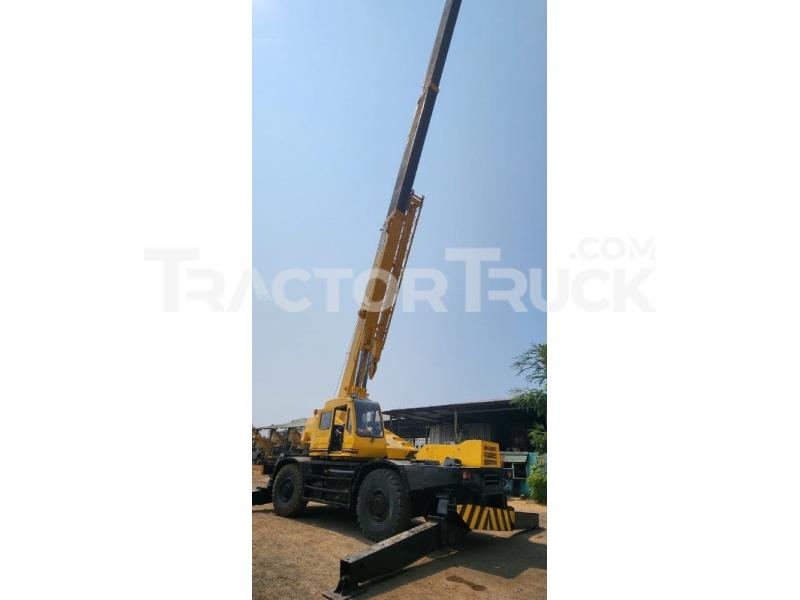

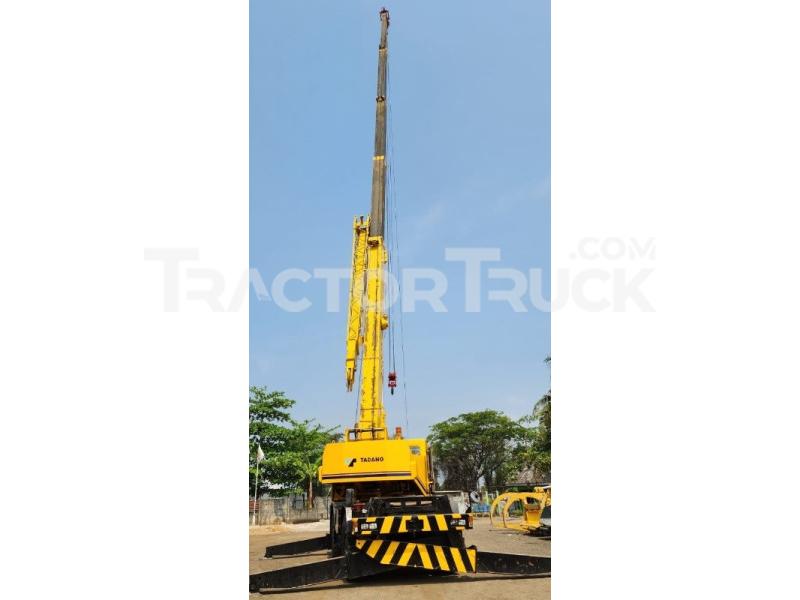

Dijual Rough terrain Crane :
- Merek Tadano
- Model TR350M
- Kapasitas 35 Ton
- Unit siap kerja
- Harga Rp. 1,65 Milyar
Rp. 1,65 M
Technical Specifications
| Min Height @ Max Raise Angle | 9000.7 mm |
|---|---|
| Max Height @ Max Raise Angle - No Jib | 34000.4 mm |
| Max Elevating Angle | 83 degrees |
| Number Of Sections | 5 |
| Swing Speed | 3 rpm |
| Transport Length | 10985 mm |
| Transport Width | 2270.8 mm |
| Transport Height | 3581.4 mm |
| Wheelbase | 3800.1 mm |
| Width W/ Outriggers Extended | 6602 mm |
| Carrier/Base Length | 7655000.2 mm |
| Upper Structure Tail Swing Radius | 3121.2 mm |
| Number Of Cylinders | 6 |
| Engine Make | Mitsubishi |
| Engine Model | 6D16 |
| Engine Type | Direct Injection Diesel |
| Gross Power | 158.2 kw |
| Power Measured @ | 2800 rpm |
| Max Torque | 637.5 Nm |
| Torque Measured @ | 1800 rpm |
| Displacement | 7.5 L |
| Operating Weight | 29450 kg |
| Fuel Capacity | 300.2 L |
| Hydraulic System Fluid Capacity | 465.2 L |
| Operating Voltage | 24 V |
| Tire Size | 16.00-25-28PR |
| Transmission Type | Full powershift |
| Number Of Forward Gears | 3 |
| Number Of Reverse Gears | 1 |
| Max Speed - Forward | 45.1 km/h |
