Alat Berat

Crane Tadano TR350M-1

SKU: 0111180049
Last Update: 2020-09-16
Kondisi Used
Kapasitas 25 Ton
Lokasi DKI JAKARTA

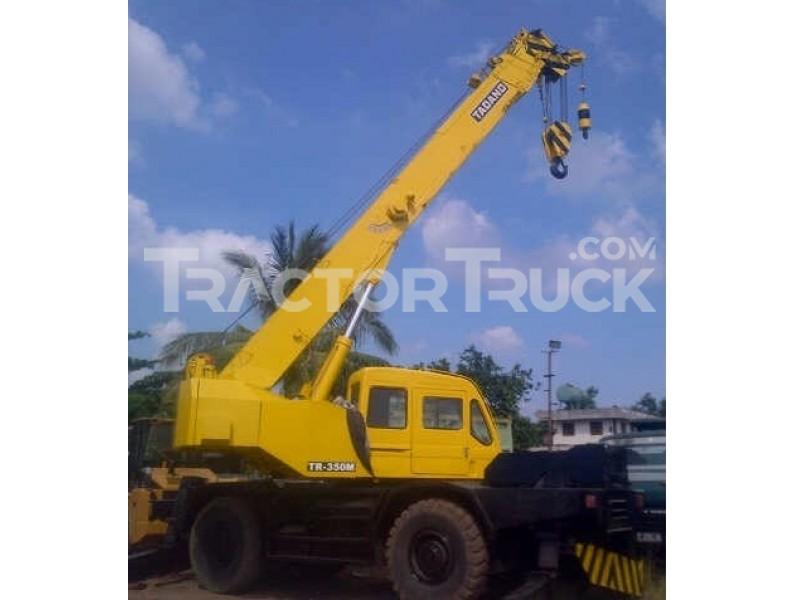

Dijual Rough Terrain Crane :
- Merek Tadano
- Model TR350M-1
- Kapasitas 35 Ton
- Harga Rp. 1,75 Milyar

Rp. 1,75 M
Share:

Technical Specifications

Min Height @ Max Raise Angle 9000.7 mm
Max Height @ Max Raise Angle - No Jib 34000.4 mm
Max Elevating Angle 83 degrees
Number Of Sections 5
Swing Speed 3 rpm
Transport Length 10985 mm
Transport Width 2270.8 mm
Transport Height 3581.4 mm
Wheelbase 3800.1 mm
Width W/ Outriggers Extended 6602 mm
Carrier/Base Length 7655000.2 mm
Upper Structure Tail Swing Radius 3121.2 mm
Number Of Cylinders 6
Engine Make Mitsubishi
Engine Model 6D16
Engine Type Direct Injection Diesel
Gross Power 158.2 kw
Power Measured @ 2800 rpm
Max Torque 637.5 Nm
Torque Measured @ 1800 rpm
Displacement 7.5 L
Operating Weight 29450 kg
Fuel Capacity 300.2 L
Hydraulic System Fluid Capacity 465.2 L
Operating Voltage 24 V
Tire Size 16.00-25-28PR
Transmission Type Full powershift
Number Of Forward Gears 3
Number Of Reverse Gears 1
Max Speed - Forward 45.1 km/h
