| Kondisi | Used |
|---|---|
| Lokasi | BANTEN |

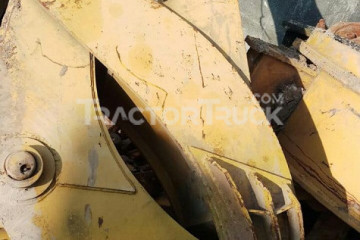

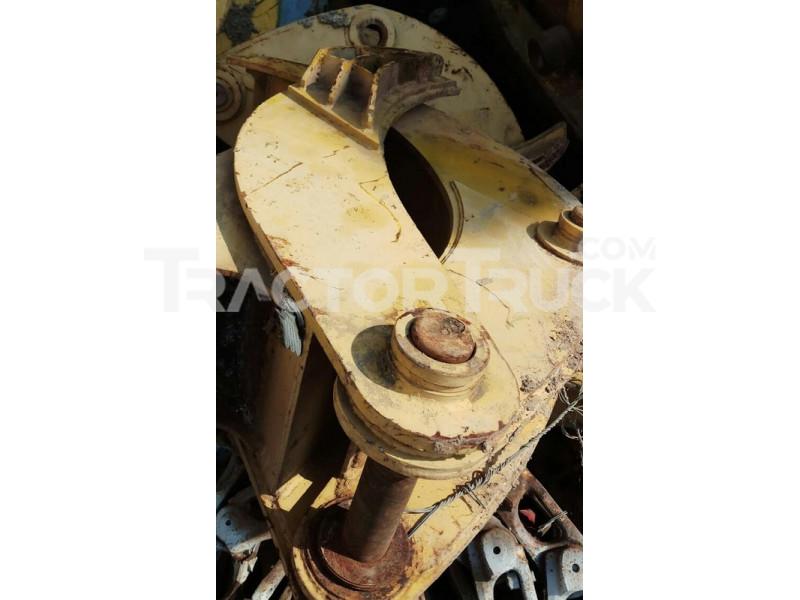

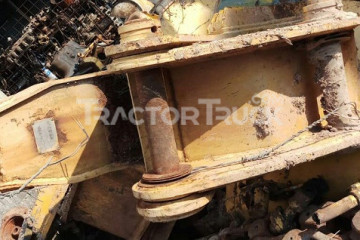

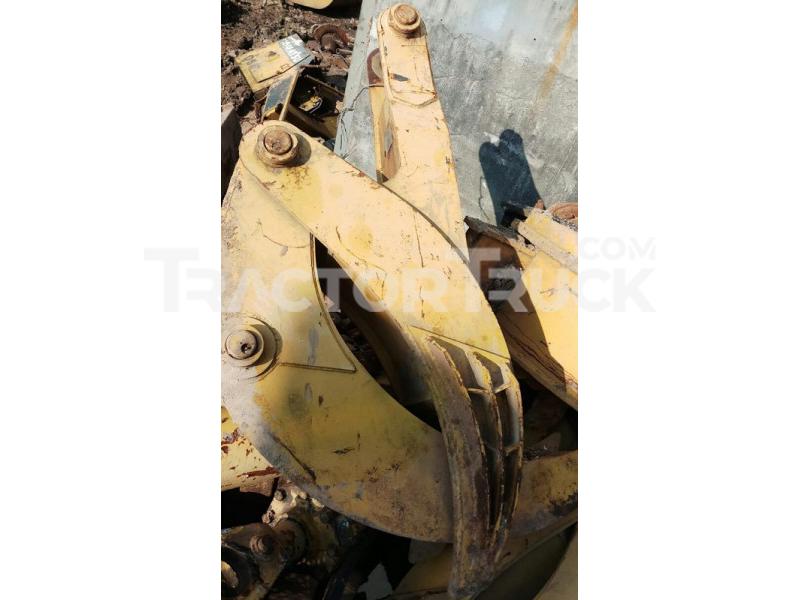

Dijual Log Grapple (Capit) :
- Dapat dipasang di Komatsu Excavator PC130F atas sekelasnya
- Kondisi Baru (belum pernah dipakai)
- Harga Rp. 18,5 Juta
Rp. 19 Jt
Technical Specifications
| Length Of Track On Ground | 2880 mm |
|---|---|
| Ground Clearance | 400 mm |
| Height To Top Of Cab | 2855 mm |
| Tail Swing Radius | 2190 mm |
| Track Gauge | 1990 mm |
| Track Length On Ground | 2880 mm |
| Overall Height | 2875 mm |
| Overall Length | 7590 mm |
| Overall Track Width | 2500 mm |
| Removal Counterweight Clearance | 895 mm |
| Shoe Size | 500 mm |
| Seal Of Track | Sealed track |
| Shoe Type | triple grouser |
| Number Of Shoes (Each Side) | 43 |
| Number Of Track Rollers Per Side | 7 |
| Track Adjuster | Hydraulic |
| Track Frame | Box-section |
| Centre Frame | X-frame |
| Number Of Carrier Rollers Per Side | 1 |
| Alternator | 24V, 60 Ampere |
| Starter | 24V/4.5 kW |
| Batteries | standard, 2 x 12 V/64 Ah |
| Voltage Reducer | 24v to 12v, in cabin with socket |
| Swing Reduction | Planetary gear |
| Swing Circle Lubrication | Grease-bathed |
| Driven By | Hydraulic motor |
| Swing Lock | Mechanical disc brake |
| Horsepower, Gross-Sae J1995 | 72.1 kw |
| Horsepower, Net-Iso 9249 | 68.4 kw |
| Horsepower, Net-Sae J1349 | 68.4 kw |
| Number Of Cylinders | 4 |
| Engine Make | 2238 |
| Engine Model | SAA4D95LE-5 |
| Engine Type | Water-cooled, 4-cycle, direct injection |
| Governor | All-speed control, electronic |
| Power Measured @ | 2200 rpm |
| Displacement | 3.3 L |
| Aspiration | Turbocharged, aftercooled |
| Bore | 95 mm |
| Stroke | 115 mm |
| Fan Drive Type | Mechanical |
| Drawbar Pull, Maximum (Kg) | 12500 |
| Gradeability | 70 % |
| Travel Speed | 2.9/5.5 |
| Coolant (Engine) | 13.9 L |
| Swing Drive | 2.5 L |
| Fuel Tank | 247 L |
| Final Drive | 2.1 L |
| Engine Oil | 11.5 L |
| Hydraulic | 90 L |
| Boom Size | 4.6 m |
| Boom Type | Standard |
| Arm Size | 2.5 m |
| Swing Radius | 2190 mm |
| Arm Type | Standard |
| Bucket Size – Kga Standard Gp | 0.6 m3 |
| Arm Crowd Force – Iso | 6880 |
| Digging Reach – Maximum | 6935 mm |
| Digging Depth – Maximum | 5520 mm |
| Maximum Reach @ Ground Level | 8170 mm |
| Bucket Crowd Force – Iso | 9520 |
| Operating Weight | 13000 kg |
| Bucket Weight - Kga Gp | 450 kg |
| Quick Hitch Weight – Kga | 178 kg |
| Hydraulic System Type | HydrauMind System |
| Selectable Work Modes | 5 |
| Economy Sub-Mode Selections | 4 |
| Main Pump Type | Variable displacement, axial piston |
| Maximum Flow Rate | 241.5 L/min |
| Hydraulic Motor (Travel) | 2 x axial piston motor with parking brake |
| Hydraulic Motor (Swing) | 1 x axial piston motor with swing holding brake |
| Parking Brake | Mechanical disc |
| Service Brake | Hydraulic lock |
