| Kondisi | Used |
|---|---|
| Lokasi | JAWA BARAT |

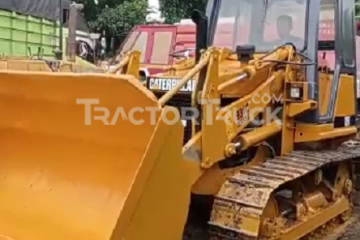

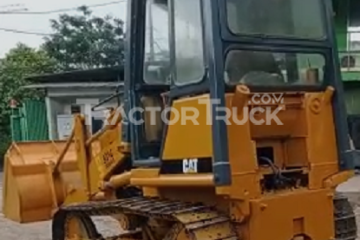

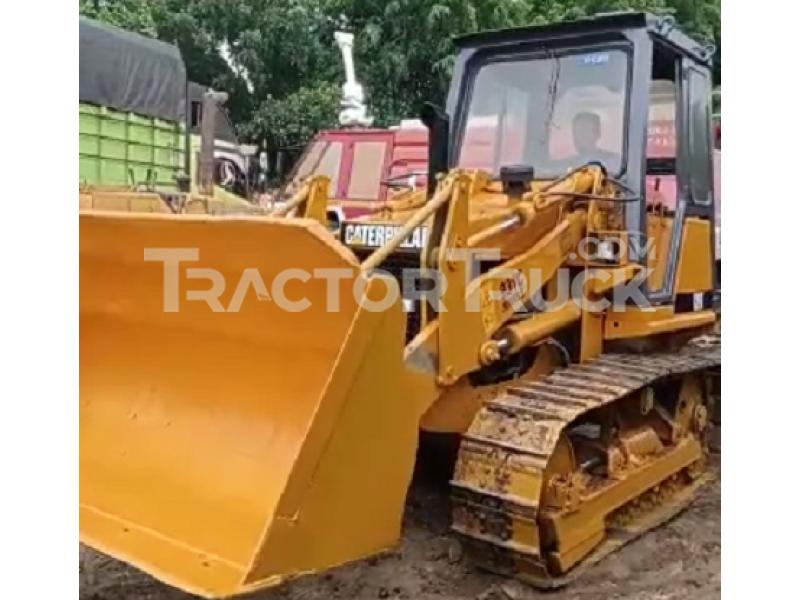

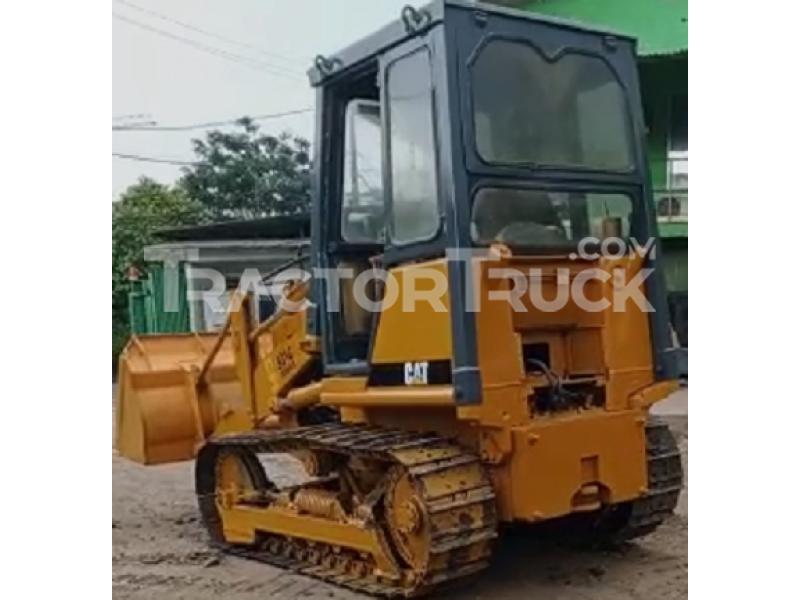

Dijual atas Unit Track / Crawler Loader :
- Merek Caterpillar
- Model 931C
- Tahun 2010
- Memakai Cabin
- Unit siap kerja
- Harga Rp. 375 Juta
Rp. 375 Jt
Technical Specifications
| Length With Bucket On Ground | 4142.2 mm |
|---|---|
| Ground Clearance | 310.9 mm |
| Width To Outside Of Tracks | 1780 mm |
| Height To Top Of Cab | 2679.2 mm |
| Clearance At Full Height And Dump | 2621.3 mm |
| Reach At Dump Height | 829.1 mm |
| Length To Front Of Track | 2816.4 mm |
| Track Gauge | 1422.1 mm |
| Length Of Track On Ground | 1902 mm |
| Number Of Shoes Per Side | 37 |
| Ground Contact Area | 1.4 m2 |
| Ground Pressure | 58.6 kPa |
| Number Of Track Rollers Per Side | 5 |
| Track Shoe Width | 355.6 mm |
| Number Of Cylinders | 4 |
| Engine Make | 2236 |
| Engine Model | 3204 |
| Net Power | 52 kw |
| Power Measured @ | 2400 rpm |
| Displacement | 5.2 L |
| Operating Weight | 8047 kg |
| Fuel Capacity | 116.2 L |
| Cooling System Fluid Capacity | 20.1 L |
| Engine Oil Capacity | 12.1 L |
| Final Drive Fluid Capacity - Each | 8.3 L |
| Hydraulic System Fluid Capacity | 57.2 L |
| Static Tipping Load | 4895 kg |
| Breakout Force - Std Bucket | 6472.8 kg |
| Bucket Capacity - Struck | 0.7 m3 |
| Bucket Capacity - Heaped | 0.8 m3 |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 40 amps |
| Max Speed | 11.3 km/h |
| Pump Type | single-section gear |
| Pump Flow Capacity | 85.9 L/min |
| Relief Valve Pressure | 17236.9 kPa |
| Raise Time | 6 sec |
| Dump Time | 2.7 sec |
| Lower Time | 3.1 sec |
