| Kondisi | Used |
|---|---|
| Lokasi | JAWA BARAT |

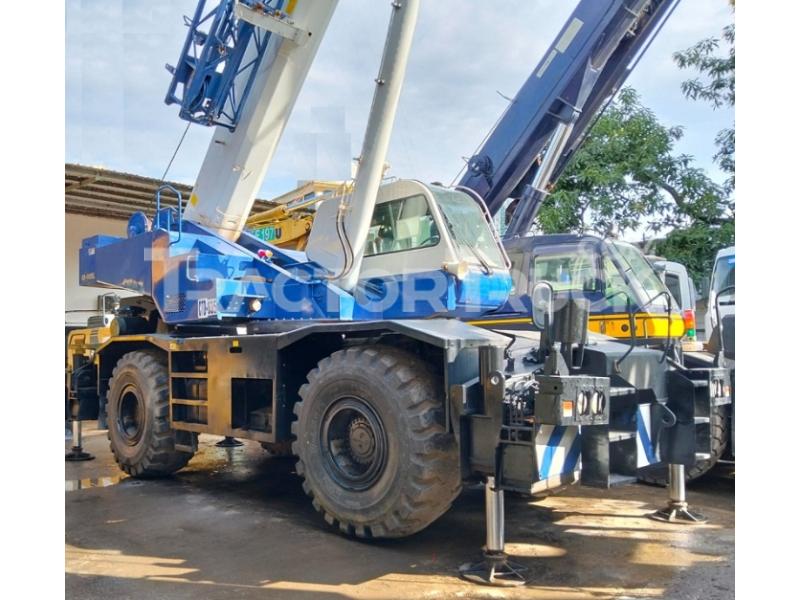

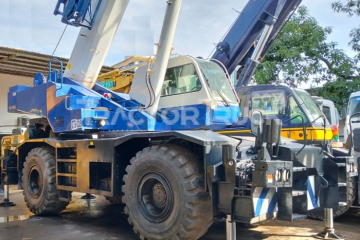

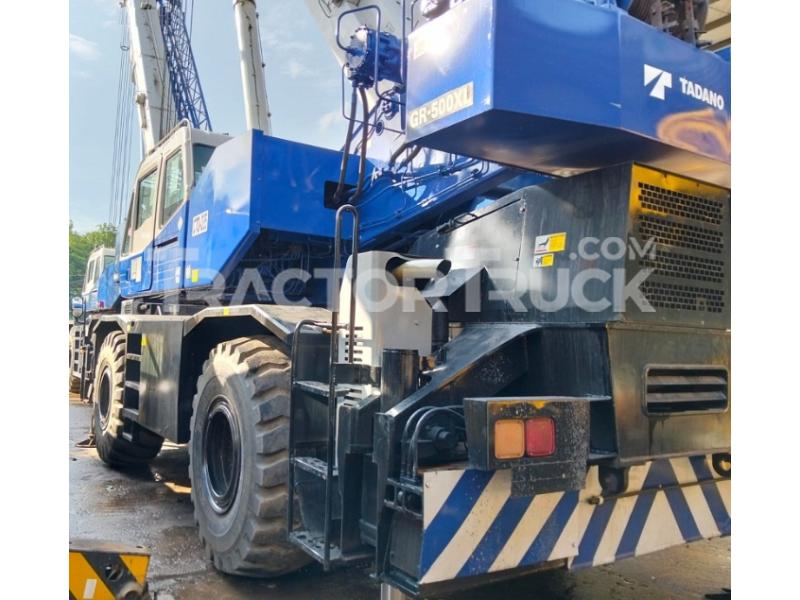

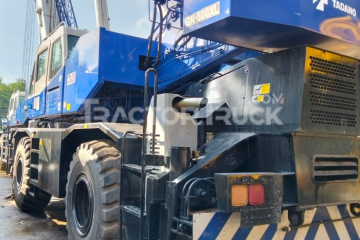

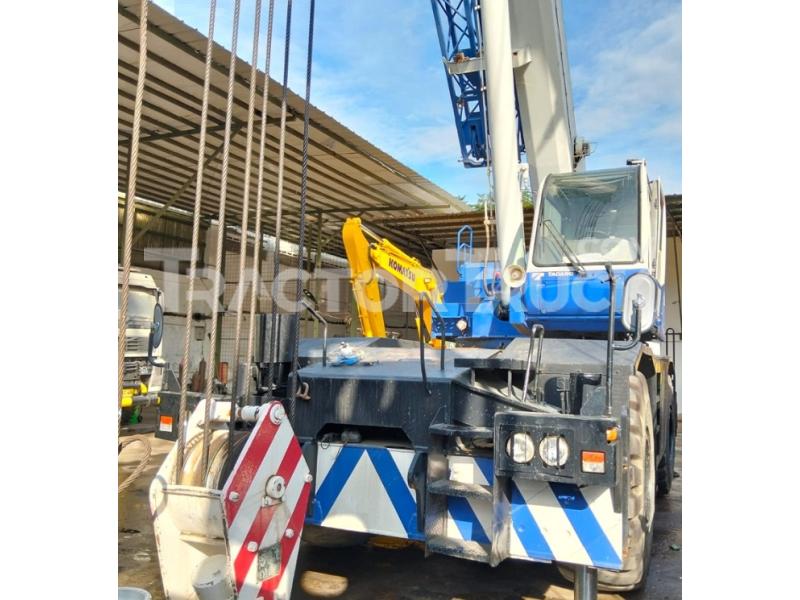

Dijual atas Rough Terrain Crane :
- Merek Tadano
- Model GR500XL-1
- Kapasitas 50 Ton
- Pembuatan 2012
- Unit siap kerja
- Harga Rp. 2,55 Milyar
Rp. 2,55 M
Technical Specifications
| Min Height @ Max Raise Angle | 12801.6 mm |
|---|---|
| Max Height @ Max Raise Angle - No Jib | 35966.4 mm |
| Min Operating Radius | 3048 mm |
| Max Elevating Angle | 80 degrees |
| Max Operating Radius | 30480 mm |
| Swing Speed | 2.7 rpm |
| Max Lift Capacity | 45359.2 kg |
| Number Of Sections | 4 |
| Transport Length | 12536.4 mm |
| Transport Width | 2980.9 mm |
| Transport Height | 3721.6 mm |
| Wheelbase | 316.7 mm |
| Ground Clearance | 390.1 mm |
| Width W/ Outriggers Extended | 7001.3 mm |
| Upper Structure Tail Swing Radius | 4120.9 mm |
| Engine Make | 2251 |
| Engine Model | 6M60-TLA3B |
| Gross Power | 199.1 kw |
| Power Measured @ | 2600 rpm |
| Max Torque | 785 Nm |
| Torque Measured @ | 1400 rpm |
| Displacement | 7.5 L |
| Aspiration | turbocharged |
| Operating Weight | 31202.6 kg |
| Fuel Capacity | 300.2 L |
| Hydraulic System Fluid Capacity | 560.2 L |
| Engine Oil Capacity | 15.1 L |
| Cooling System Fluid Capacity | 13.2 L |
| Operating Voltage | 24 V |
| Tire Size | 23.5-25 20PR |
| Transmission Type | full automatic powershift |
| Number Of Forward Gears | 6 |
| Number Of Reverse Gears | 2 |
| Max Speed - Forward | 48.1 km/h |
