| Kondisi | Used |
|---|---|
| Lokasi | KALIMANTAN TIMUR |

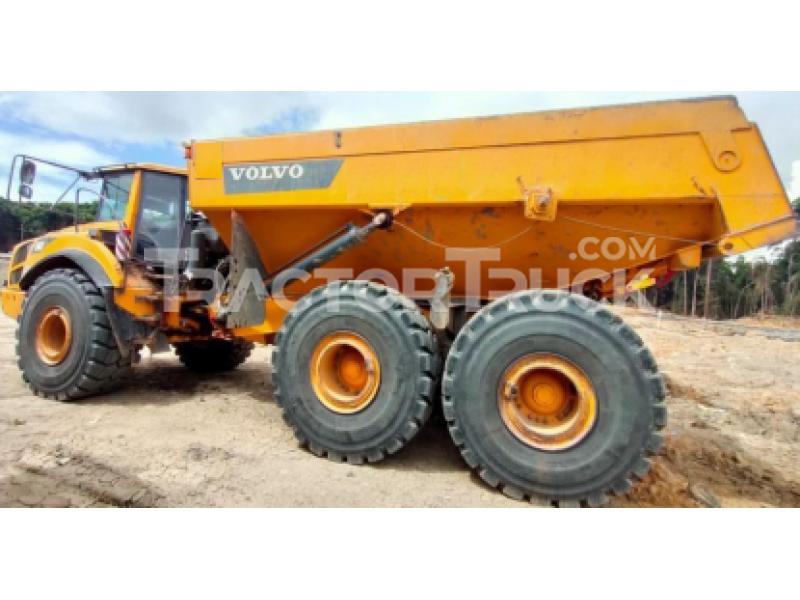

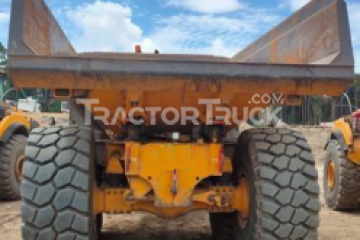

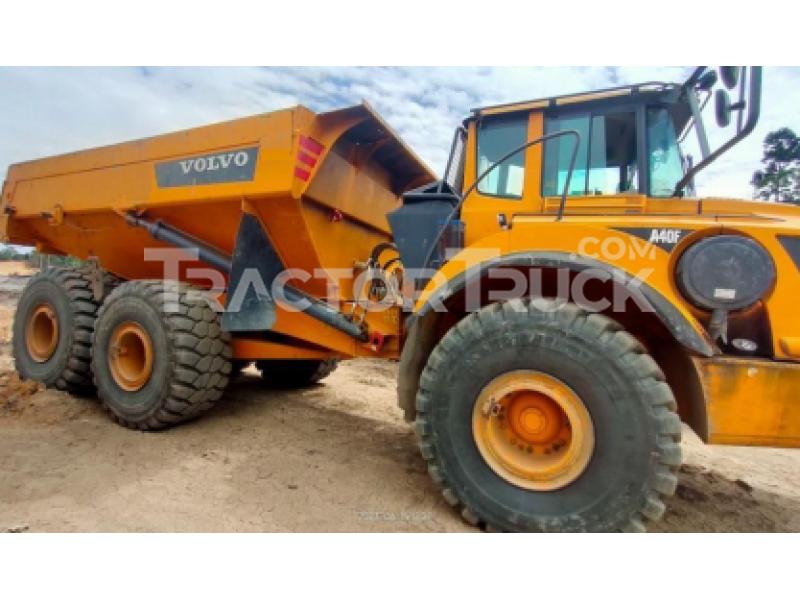

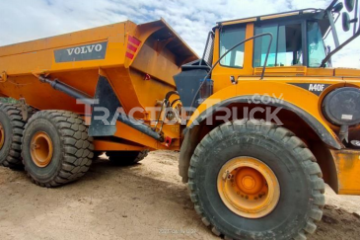

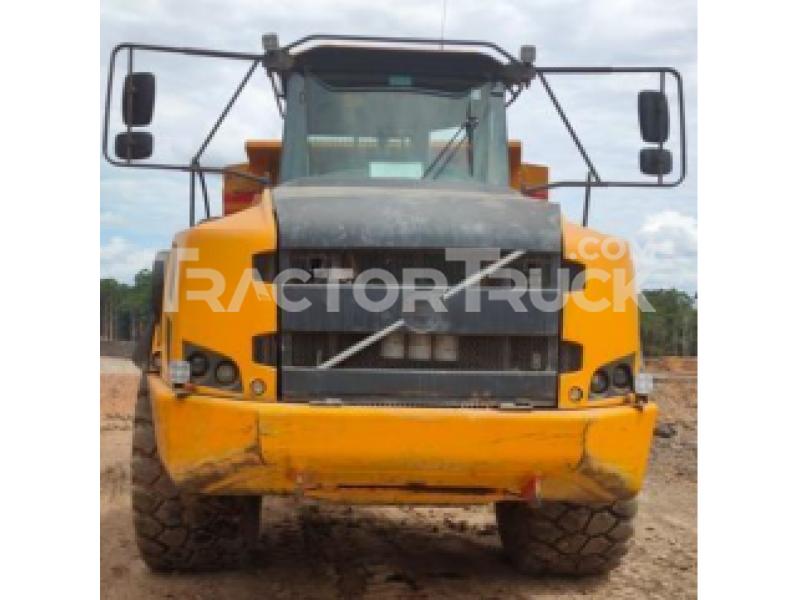

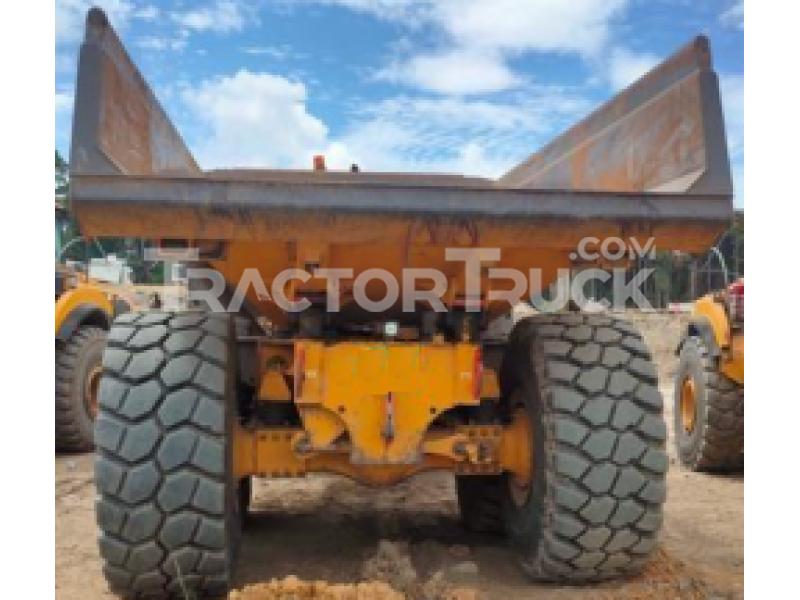

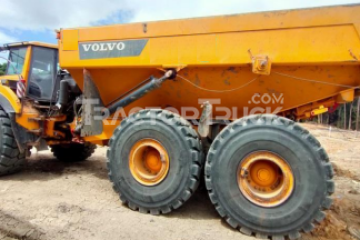

For Articulated Dump Truck (ADT) :
- Brand Volvo
- Model A40F
- As Is Condition dan Ready for Use (RFU)
- Year Manufacturing 2013
- Location Kalimantan / Borneo Jobsite - Indonesia
- Available 9 Units
- Price US$ 123,300 per Unit
Rp. Call
Technical Specifications
| Overall Length | 11265.4 mm |
|---|---|
| Overall Width | 3435.1 mm |
| Overall Height | 3675.9 mm |
| Wheelbase | 5489.4 mm |
| Ground Clearance | 573 mm |
| Dump Height | 7287.8 mm |
| Dump Ground Clearance | 844.3 mm |
| Dump Angle | 70 degrees |
| Lower Time | 10 sec |
| Rated Payload | 39000 kg |
| Capacity - Struck | 18.4 m3 |
| Raise Time | 12 sec |
| Capacity - Heaped | 24 m3 |
| Number Of Cylinders | 6 |
| Engine Make | 2244 |
| Engine Model | D13H-A |
| Gross Power | 355 kw |
| Net Power | 346.8 kw |
| Power Measured @ | 1800 rpm |
| Max Torque | 2524.5 Nm |
| Torque Measured @ | 1050 rpm |
| Aspiration | Turbocharged |
| Displacement | 16.1 L |
| Fuel Capacity | 545.1 L |
| Hydraulic System Fluid Capacity | 262.3 L |
| Cooling System Fluid Capacity | 95 L |
| Engine Oil Capacity | 54.1 L |
| Transmission Fluid Capacity | 45.8 L |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 80 amps |
| Tire Size | 29.5R25 |
| Transmission Type | PT2519 |
| Number Of Forward Gears | 9 |
| Number Of Reverse Gears | 3 |
| Max Speed | 56.3 km/h |
| Front Axle - Empty | 16550 kg |
| Rear Axle - Empty | 14250 kg |
| Front Axle - Loaded | 45194.8 % |
| Rear Axle - Loaded | 49300 kg |
| Total Empty | 30800 kg |
| Total Loaded | 69800 kg |
