| Kondisi | Used |
|---|---|
| Lokasi | BANTEN |

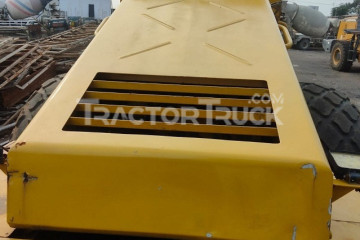

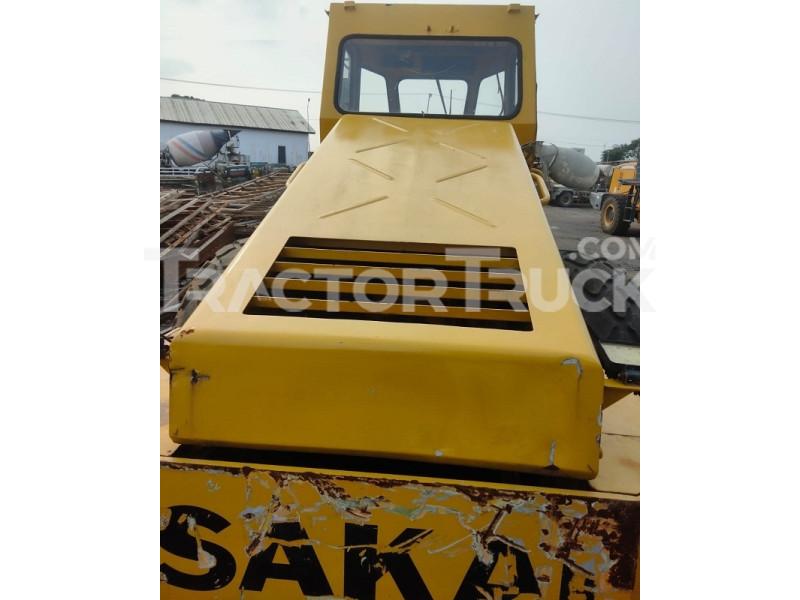

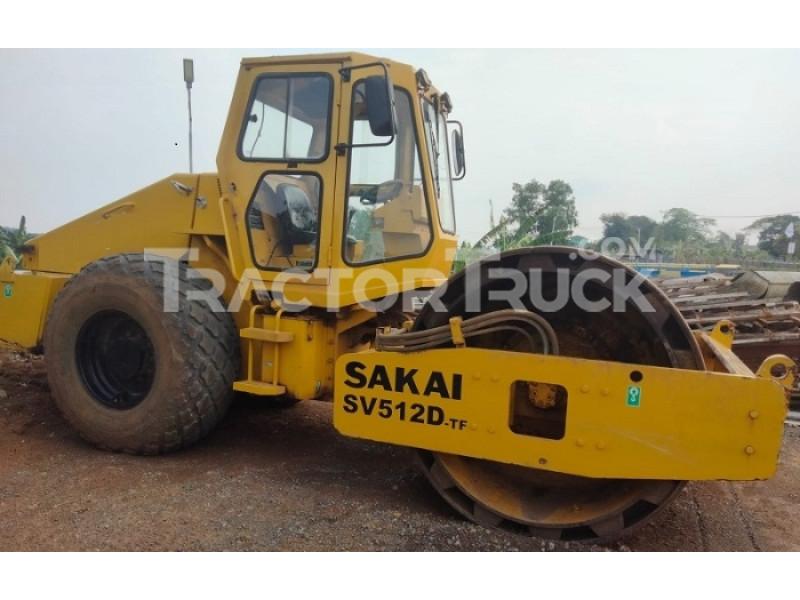

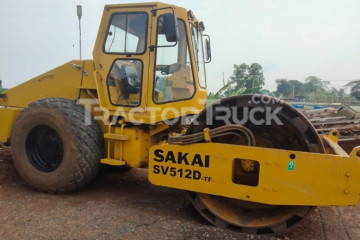

Dijual atas Compactor / Vibro :
- Merek Sakai
- Model SV512TF
- Tahun 2013
- Kapasitas 10 -12 Ton
- Smooth Drum dan Pad Foot
- Cabin
- Harga Rp. 550 Juta
Rp. 550 Jt
Technical Specifications
| Overall Length W/Blade | 5742.4 mm |
|---|---|
| Width Over Tires | 2301.2 mm |
| Height To Top Of Cab | 2822.4 mm |
| Wheelbase | 247.7 mm |
| Ground Clearance | 435.1 mm |
| Drum Diameter | 1650.2 mm |
| Pad Height | 100.1 mm |
| Vibration Frequency 1 | 36.71 Hz |
| Vibratory Frequency 2 | 27.5 Hz |
| Nominal Amplitude - Low | 1 mm |
| Centrifugal Force - Low | 18966.7 kg |
| Drum Width | 2130 mm |
| Nominal Amplitude - High | 1.8 mm |
| Centrifugal Force - High | 24983.1 kg |
| Number Of Pads | 140 |
| Engine Make | 2351 |
| Engine Model | "1004-40TW" diesel engine |
| Gross Power | 85.5 kw |
| Displacement | 4 L |
| Aspiration | turbocharged |
| Operating Weight | 13000 kg |
| Fuel Capacity | 250.2 L |
| Hydraulic System Fluid Capacity | 50.3 L |
| Max Speed | 10.1 km/h |
| Tires | 23.1-26-8PR(OR) |
| Operating Voltage | 24 V |
