| Kondisi | Used |
|---|---|
| Lokasi | BANTEN |

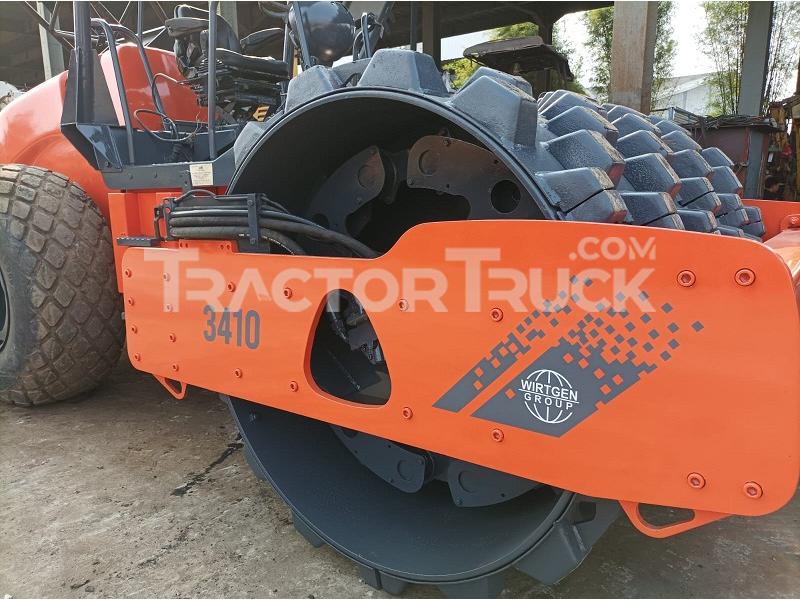

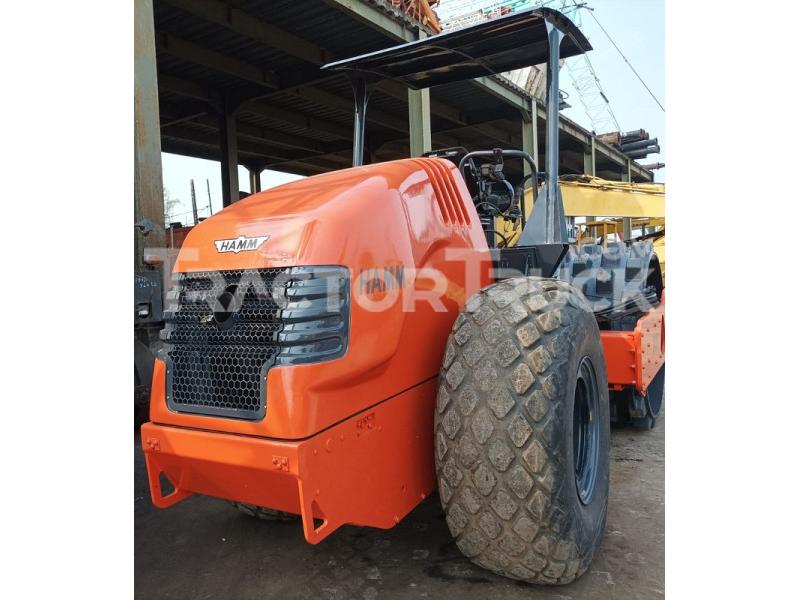

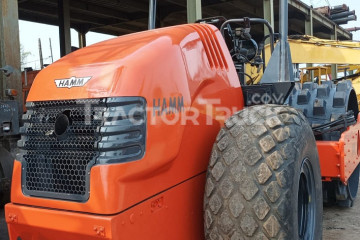

Dijual atas Compactor/Vibro :
- Merek Hamm
- Model 3410
- Ex Import / Built Up
- Masuk Indonesia tahun 2013
- Single Drum Roller
- Memakai Pad Foot
- Kapasitas 10-12 Ton
- Harga Rp. 665 Juta
Rp. 665 Jt
Technical Specifications
| Overall Length | 5695 mm |
|---|---|
| Height To Top Of Cab | 3020 mm |
| Wheelbase | 3005 mm |
| Ground Clearance | 375 mm |
| Angle Of Driving Slope-Front | 31 degrees |
| Width Over Cab | 2250 mm |
| Angle Of Driving Slope-Rear | 34 degrees |
| Loadover Height | 2.32 m |
| Turning Radius - Inside | 4005 mm |
| Oscillating Angle | 10 degrees |
| Steering Method | Articulated steering |
| Speed - Working Gear | 11.3 km/h |
| Speed - Transportation Gear | 19.4 km/h |
| Size Of Tyres, Rear | AW 23.1-26 12 PR |
| Emissions Certification | EU Stage IIIA / EPA Tier 3 |
| Exhaust Gas Recirculation (Egr) | DOC-DPF-SCR |
| Engine Power@Iso 14396 | 100 kw |
| Engine Power@Saej1349 | 100 kw |
| Number Of Cylinders | 4 |
| Engine Make | Deutz |
| Engine Model | TCD 2012 L04 2V |
| Power Measured @ | 2300 rpm |
| Operating Weight Cabin | 10535 kg |
| Operating Weight Rops | 10315 kg |
| Fuel Capacity | 290 L |
| Max Weight | 12060 kg |
| Axle Load - Front | 5690 kg |
| Axle Load - Rear | 4845 kg |
| Drum Thickness | 45 mm |
| Drum Type | smooth |
| Drum Width | 2140 mm |
| Drum Diameter | 1600 mm |
| Static Linear Load | 26.6 kg/cm |
| Vibration Frequency 1 | 27 Hz |
| Nominal Amplitude - High | 1.9 mm |
| Vibration Frequency 2 | 37 Hz |
| Nominal Amplitude - Low | 0.8 mm |
| Centrifugal Force - High | 246 kN |
| Centrifugal Force - Low | 144 kN |
