| Kondisi | Used |
|---|---|
| Lokasi | JAWA BARAT |

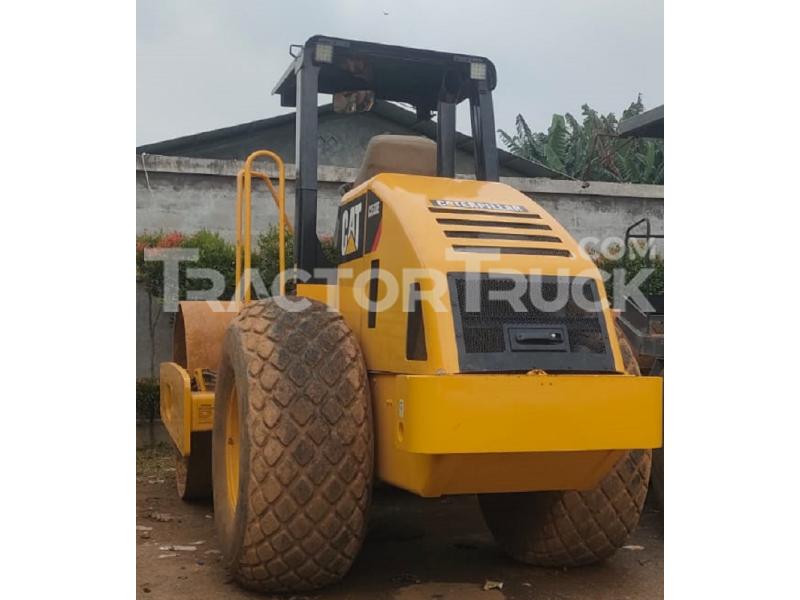

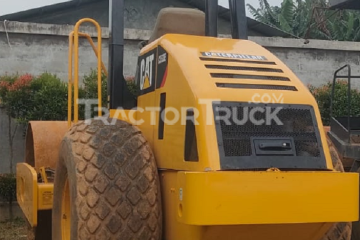

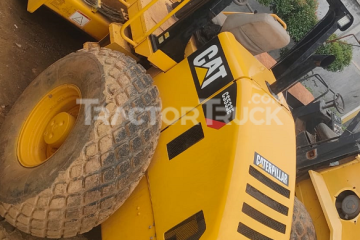

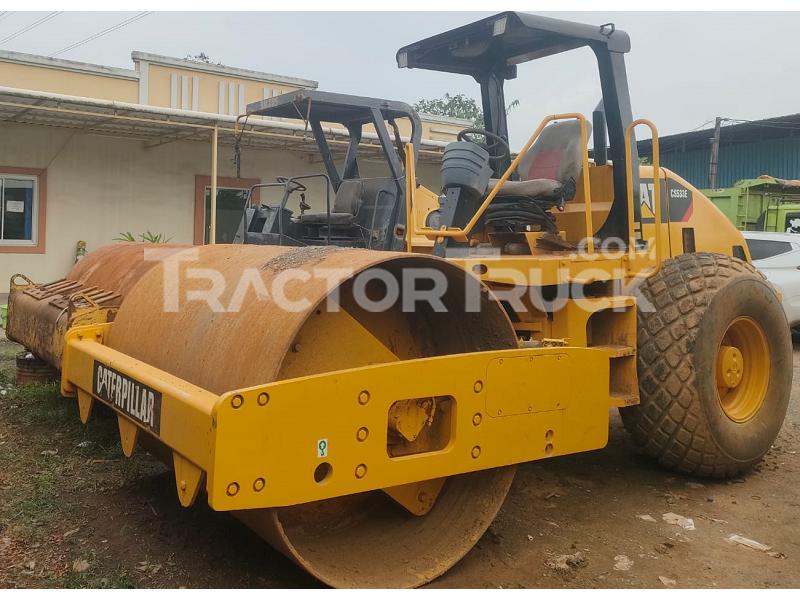

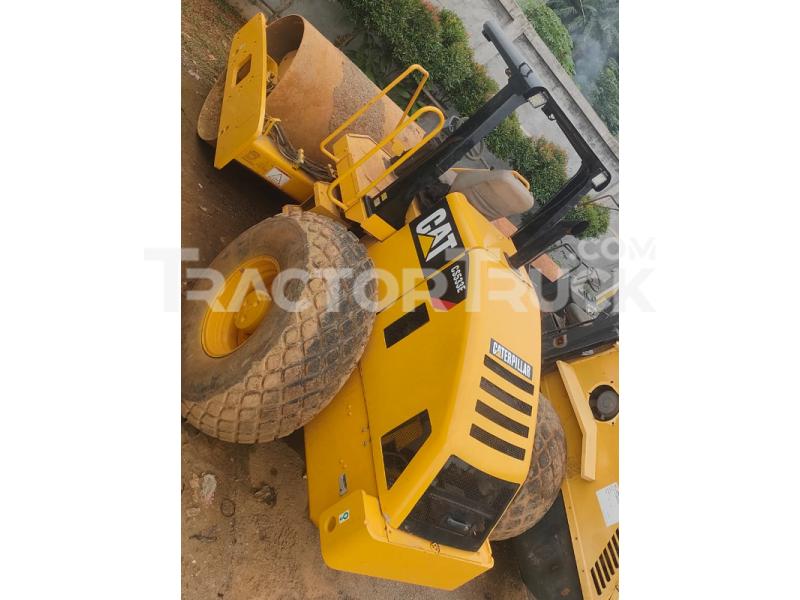

Dijual atas Compactor/Vibro :
- Merek Caterpillar
- Model CS533E
- Tahun 2013
- Unit siap kerja
- Harga Rp. 475 Juta
Rp. 475 Jt
Technical Specifications
| Overall Length | 459.2 mm |
|---|---|
| Overall Width | 2316.5 mm |
| Height To Top Of Cab | 3072.4 mm |
| Wheelbase | 241.8 mm |
| Ground Clearance | 543.1 mm |
| Engine Make | 2236 |
| Engine Model | 3054C |
| Gross Power | 97 kw |
| Net Power | 93.1 kw |
| Displacement | 4.4 L |
| Aspiration | turbocharged |
| Operating Weight | 10840 kg |
| Fuel Capacity | 200.2 L |
| Cooling System Fluid Capacity | 19.3 L |
| Engine Oil Capacity | 9.1 L |
| Hydraulic System Fluid Capacity | 60.2 L |
| Max Speed | 12.1 km/h |
| Tires *If Applicable | 23.1x26 |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 55 amps |
| Drum Width | 2136.1 mm |
| Drum Diameter | 1534.2 mm |
| Static Linear Load | 384.1 lb/in |
| Vibration Frequency 1 | 31 Hz |
| Nominal Amplitude - High | 2.5 mm |
| Vibration Frequency 2 | 34 Hz |
| Nominal Amplitude - Low | 2.5 mm |
| Centrifugal Force - High | 23861.4 kg |
| Centrifugal Force - Low | 13562.2 kg |
