| Kondisi | Used |
|---|---|
| Lokasi | JAWA BARAT |

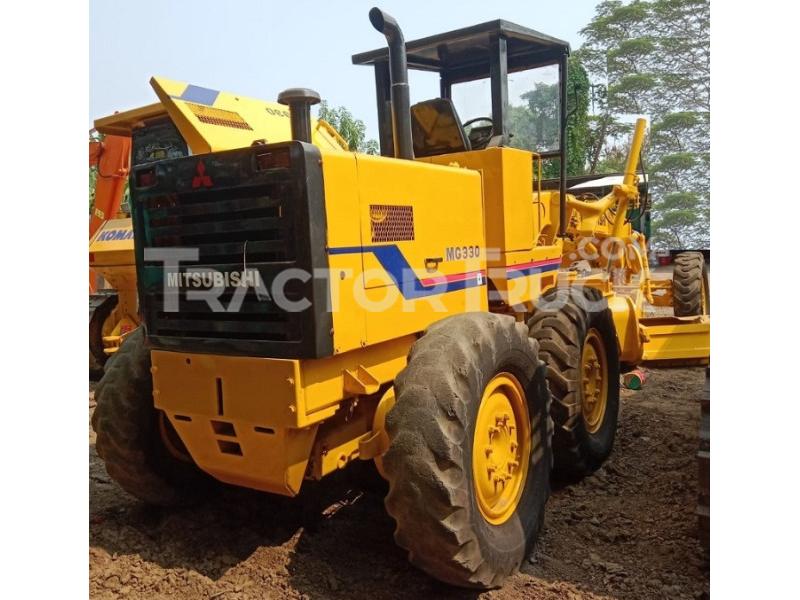

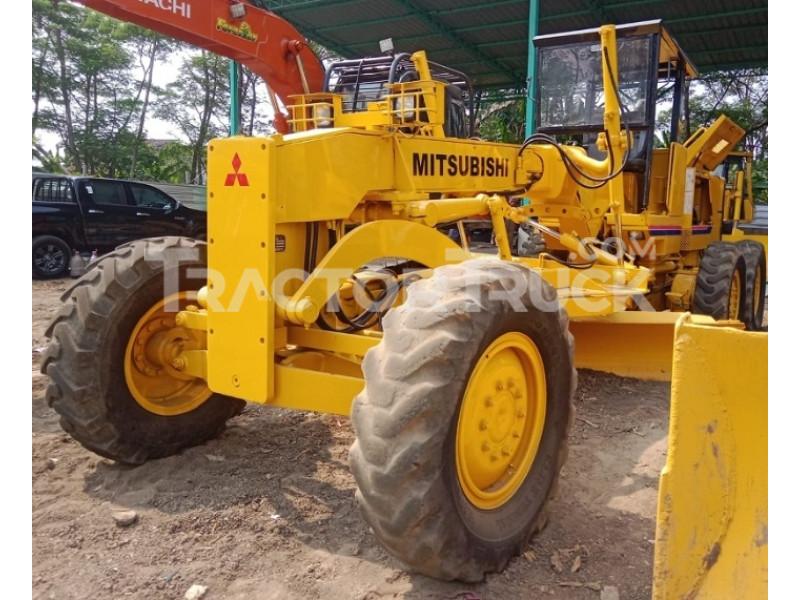

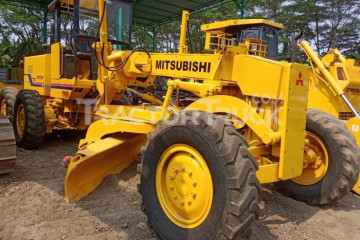

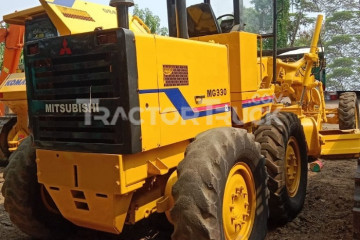

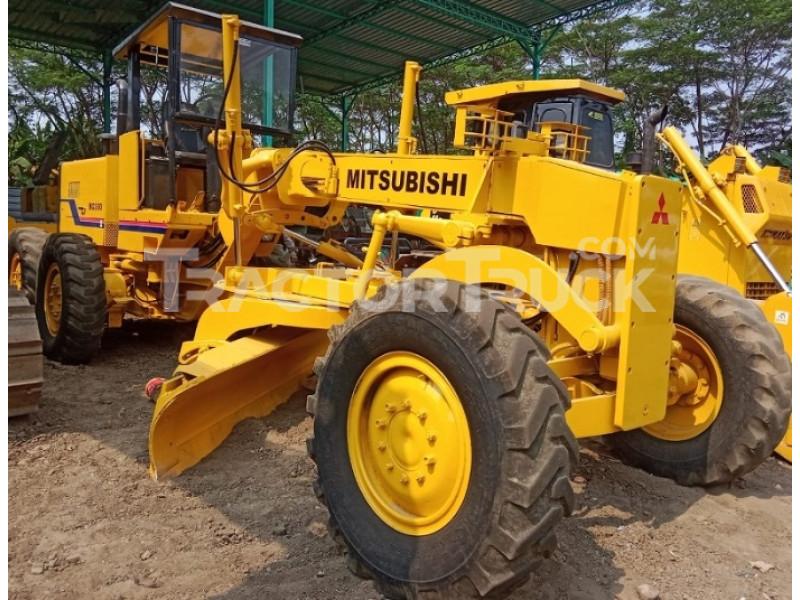

Dijual atas Unit Motor Grader :
- Merek Mitsubishi
- Model MG330
- Tahun 2005
- Unit sudah dipersiapkan
- Harga Rp. 650 Juta
Rp. 650 Jt
Technical Specifications
| Overall Length | 7821.2 mm |
|---|---|
| Width Over Tires | 2380.5 mm |
| Wheelbase | 5300.5 mm |
| Height To Top Of Isomount Cab | 2801.1 mm |
| Engine Make | 2251 |
| Engine Model | C 6D16-TE1 |
| Power Measured @ | 2200 rpm |
| Net Power Gear 5-6 | 100.7 kw |
| Max Power | 100.7 kw |
| Displacement | 7.5 L |
| Std Operation Weight - Total | 10955 kg |
| Tire Size | 13.00-24-8PR |
| Operating Voltage | 24 V |
| Turning Radius | 6614.2 mm |
| Transmission Type | power shift planetary gear |
| Number Of Gears - Forward | 6 |
| Number Of Gears - Reverse | 6 |
| Max Speed - Forward | 42.6 km/h |
| Max Speed - Reverse | 43.5 km/h |
| Moldboard Width | 3718.6 mm |
| Moldboard Height | 612.1 mm |
| Moldboard Thickness | 20.3 mm |
