| Kondisi | Used |
|---|---|
| Lokasi | BANTEN |

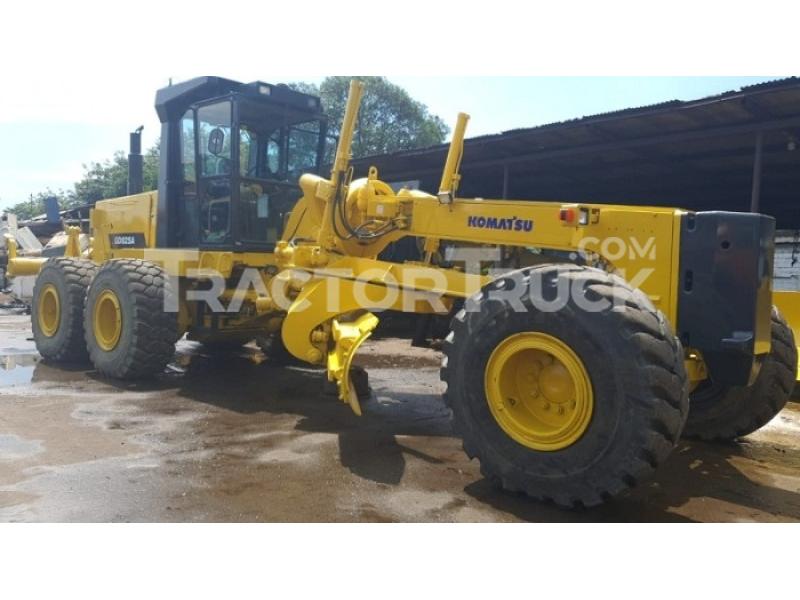

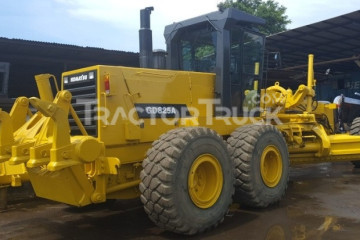

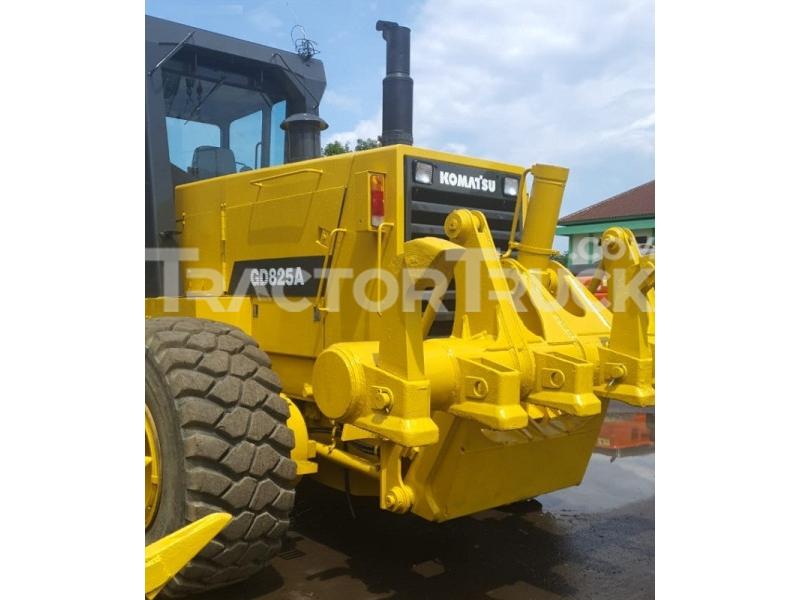

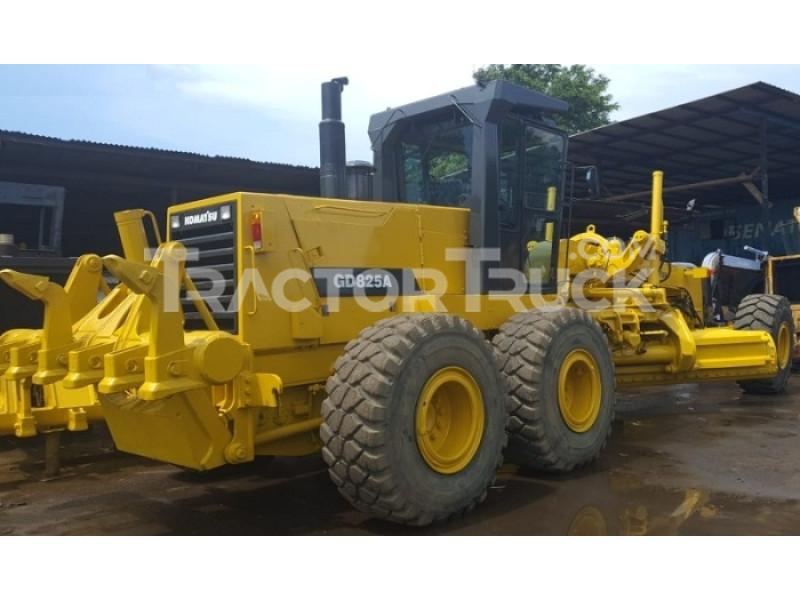

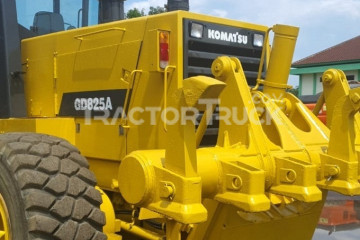

Dijual atas Unit Motor Grader :
- Merek Komatsu
- Model GD825A-2
- Ex Import / Built Up
- Masuk Indonesia tahun 2018
- Memakai Cabin
- Ada Ripper
- Unit siap kerja
- Harga Rp. 2,5 Milyar
Rp. 2,5 M
Technical Specifications
| Overall Length | 10012.7 mm |
|---|---|
| Width Over Tires | 3310.1 mm |
| Wheelbase | 7132.3 mm |
| Tandem Axle Wheelbase | 1828.8 mm |
| Blade Base | 3102.9 mm |
| Height To Top Of Isomount Cab | 3557 mm |
| Minimum Turning Radius | 7900.4 mm |
| Articulation Angle | 25 degrees |
| Number Of Cylinders | 6 |
| Piston Displacement | 6.7 L |
| Engine Make | 2238 |
| Engine Model | S6D140E |
| Front Frame Structure - Height | 426.7 mm |
| Front Frame Structure - Width | 365.8 mm |
| Power Measured @ | 2100 rpm |
| Max Power | 208.8 kw |
| Net Power Gears 7-8 | 208.8 kw |
| Displacement | 5.9 L |
| Aspiration | Turbocharged Diesel engine |
| Fuel Tank - Diesel | 500.1 L |
| Hydraulic Tank | 80.3 L |
| Transmission | 25.4 L |
| Final Drive | 63.2 L |
| Tandem Housing | 190 L |
| Engine Oil | 38.2 L |
| Coolant | 58.3 L |
| Hydraulic System Fluid Capacity | 79.9 L |
| Max Operation Weight - Front Axle | 7969.6 kg |
| Max Operation Weight - Rear Axle | 18452.1 kg |
| Oil System Fluid Capacity | 38.2 L |
| Max Operation Weight - Total | 26421.8 kg |
| Fuel Capacity | 500.1 L |
| Cooling System Fluid Capacity | 57.9 L |
| Transmission Fluid Capacity | 25 L |
| Tandem Case Fluid Capacity (Each) | 190 L |
| Tire Size | 23.5 X 25-12PR (L3) tires |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 50 amps |
| Articulation Angle | 25 degrees |
| Turning Radius | 7924.8 mm |
| Transmission Type | komatsu HYDROSHIFT Transmission |
| Number Of Gears - Forward | 8 |
| Number Of Gears - Reverse | 8 |
| Max Speed - Forward | 44.9 km/h |
| Max Speed - Reverse | 48 km/h |
| Operating Weight - On Rear Wheels | 18380 kg |
| Total Operating Weight | 26350 kg |
| Operating Weight - On Front Wheels | 7970 kg |
| Wheel Lean | 14.5 degrees |
| Oscillation - Total | 32 degrees |
| Ground Clearance | 701 mm |
| Maximum Shoulder Reach Outside Rear Tyres (Frame Straight): Right | 2407.9 mm |
| Maximum Shoulder Reach Outside Rear Tyres (Frame Straight): Left | 2407.9 mm |
| Maximum Lift Above Ground | 426.7 mm |
| Blade Tip Angle | 49° forward 5 ° reverse |
| Moldboard Width | 4937.8 mm |
| Moldboard Height | 787.4 mm |
| Moldboard Thickness | 25.4 mm |
| Max Depth Of Cut | 482.6 mm |
| Blade Pull At Max Weight | 13721.2 kg |
| Pump Type | Double-acting piston-type hydraulic cylinders |
| Relief Valve Pressure | 24545.3 kPa |
| Diameter | 1778 mm |
| Rotation | 360 degrees |
| Max Reach Outside Tires - Left | 2387.6 mm |
| Max Reach Outside Tires - Right | 2387.6 mm |
| Max Lift Above Ground | 482.6 mm |
| Blade Tip Angle - Front | 49 degrees |
| Blade Tip Angle - Rear | 5 degrees |
