| Kondisi | Used |
|---|---|
| Lokasi | BANTEN |

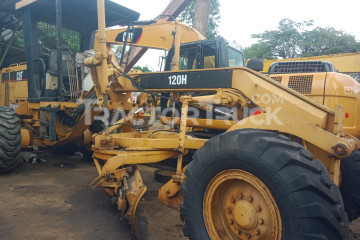

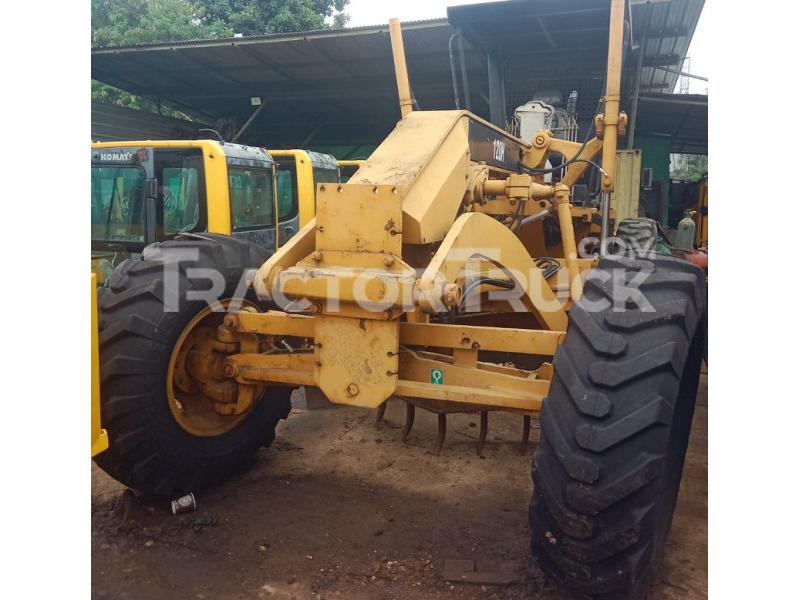

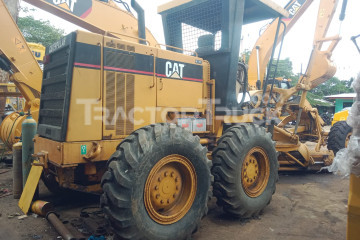

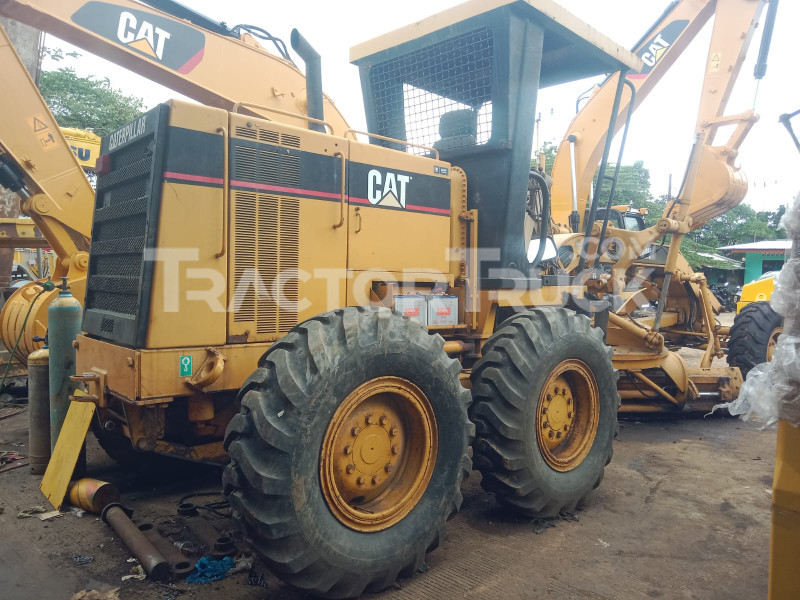

Dijual atas Motor Grader :
- Merek Caterpillar
- Model 120H
- Tahun 2009
- Belum pernah dipakai di Lokal
- Cabin
- Harga Rp. 675 Juta
Rp. 675 Jt
Technical Specifications
| Overall Length | 8141.2 mm |
|---|---|
| Width Over Tires | 2441.4 mm |
| Wheelbase | 5870.4 mm |
| Tandem Axle Wheelbase | 1511.8 mm |
| Front Ground Clearance | 609.6 mm |
| Height To Top Of Isomount Cab | 3112 mm |
| Number Of Cylinders | 6 |
| Net Power Gear 4-6 | 93.2 kw |
| Engine Make | 2236 |
| Engine Model | 3116 DITA |
| Power Measured @ | 2000 rpm |
| Torque Measured @ | 1400 rpm |
| Max Power | 104.4 kw |
| Net Power Gears 7-8 | 104.4 kw |
| Displacement | 6.6 L |
| Aspiration | turbocharged |
| Std Operation Weight - Front Axle | 3574.3 kg |
| Std Operation Weight - Rear Axle | 8944.8 kg |
| Hydraulic System Fluid Capacity | 68.1 L |
| Std Operation Weight - Total | 11358 kg |
| Oil System Fluid Capacity | 23.1 L |
| Fuel Capacity | 340.3 L |
| Cooling System Fluid Capacity | 40.1 L |
| Rear Diff/Final Drive Fluid Capacity | 47.3 L |
| Circle Gearbox Fluid Capacity | 7.2 L |
| Tandem Case Fluid Capacity (Each) | 49.2 L |
| Tire Size | 13-24 (10 PR) (G-2) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 35 amps |
| Articulation Angle | 20 degrees |
| Turning Radius | 7223.8 mm |
| Transmission Type | direct drive powershift |
| Number Of Gears - Forward | 8 |
| Number Of Gears - Reverse | 6 |
| Max Speed - Forward | 42.6 km/h |
| Max Speed - Reverse | 33.8 km/h |
| Wheel Lean | 18 degrees |
| Oscillation - Total | 32 degrees |
| Ground Clearance | 609.6 mm |
| Moldboard Width | 3688.1 mm |
| Moldboard Height | 612.1 mm |
| Moldboard Thickness | 22.9 mm |
| Max Depth Of Cut | 777.2 mm |
| Side Shift Left | 525.8 mm |
| Side Shift Right | 660.4 mm |
| Blade Pull At Max Weight | 10661 kg |
| Blade Down Pressure | 9100 kg |
| Pump Type | Axial Piston |
| Pump Flow | 148 L/min |
| Relief Valve Pressure | 24131.7 kPa |
| Diameter | 1531.6 mm |
| Rotation | 360 degrees |
| Shift Left | 627.4 mm |
| Shift Right | 629.9 mm |
| Max Reach Outside Tires - Left | 1841.5 mm |
| Max Reach Outside Tires - Right | 1912.6 mm |
| Max Lift Above Ground | 457.2 mm |
| Blade Tip Angle - Front | 40 degrees |
| Blade Tip Angle - Rear | 5 degrees |
