| Kondisi | New |
|---|---|
| Lokasi | KALIMANTAN SELATAN |
Dijual

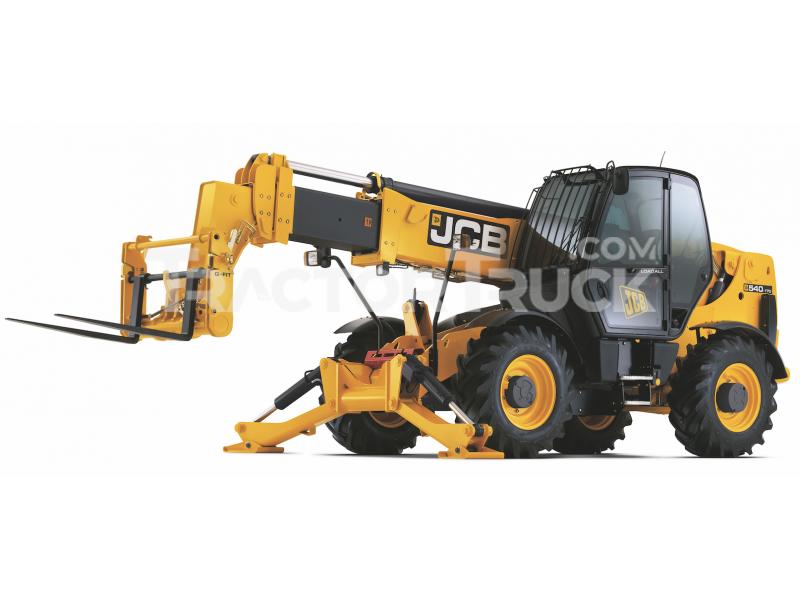

- Tele Handler / Telescopic / telehandler
- Merek JCB
- Model 540-170
- Area Kalimantan
- Harga IDR 2.030.000.000 (belum termasuk PPN 10%)
- Harga dan stock tidak mengikat serta dapat berubah sewaktu-waktu
Rp. 2,03 M

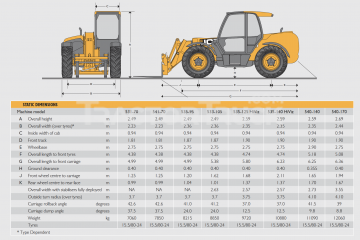

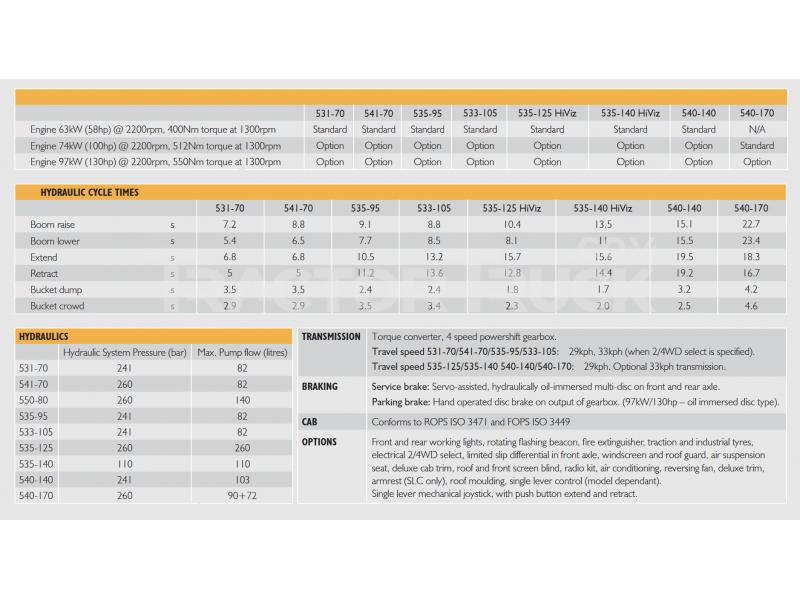

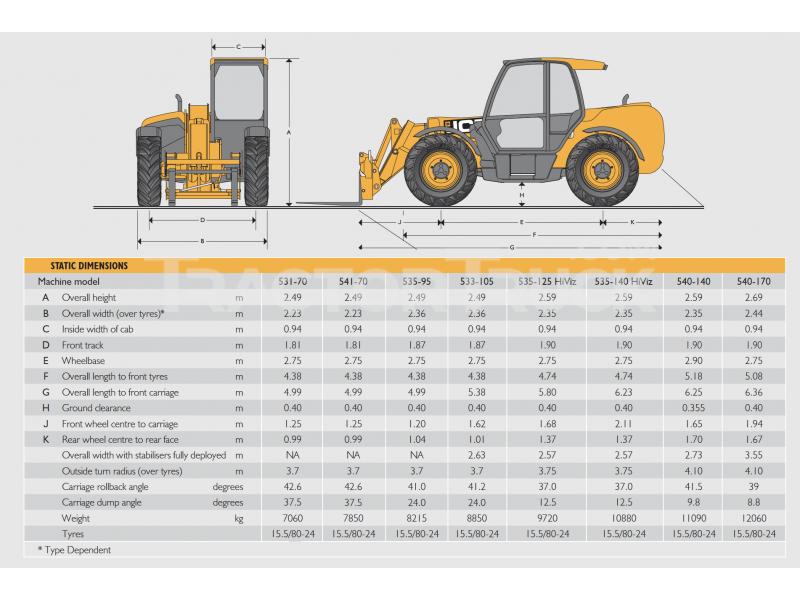

Technical Specifications
| Length To Fork Face | 6361.2 mm |
|---|---|
| Ground Clearance | 402.3 mm |
| Width Over Tires | 2441.4 mm |
| Overall Height | 2691.4 mm |
| Wheelbase | 2752.3 mm |
| Dump Angle | 8.81 degrees |
| Lift Capacity To Full Height | 1500 kg |
| Turning Radius Outside Tires | 4102.6 mm |
| Weight | 12060 kg |
| Max Lift Height | 16700 mm |
| Max Forward Reach | 12502.9 mm |
| Max Lift Capacity | 4000 kg |
| Max Load At Max Height | 2500 kg |
| Max Load At Max Reach | 600 kg |
| Number Of Cylinders | 4 |
| Engine Make | 2257 |
| Engine Model | JCB EcoMAX T4i/IIIB |
| Gross Power | 74.6 kw |
| Power Measured @ | 2200 rpm |
| Max Torque | 425 Nm |
| Torque Measured @ | 1200 rpm |
| Displacement | 4.4 L |
| Aspiration | turbocharged cooled |
| Operating Weight | 4000 kg |
| Fuel Capacity | 125.3 L |
| Hydraulic System Fluid Capacity | 150.3 L |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 65 amps |
| Tire Size | 15.5/80-24 |
| Transmission Type | 4-speed powershift |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 4 |
| Max Speed - Forward | 25.1 km/h |
| Max Speed - Reverse | 25.1 km/h |
| Extend | 18.3 sec |
| Bucket Crowd | 4.6 sec |
| Retract | 16.7 sec |
| Max Operating Pressure | 260 bar |
| Main Hydraulic Pumps | 90+72 L |
| Pump Flow Capacity | 162 L/min |
| Relief Valve Pressure | 25993.2 kPa |
| Raise Time | 22.7 sec |
| Dump Time | 4.2 sec |
| Lower Time | 23.4 sec |
