| Kondisi | Used |
|---|---|
| Lokasi | BANTEN |

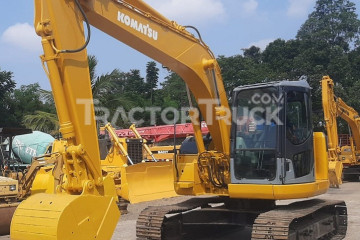

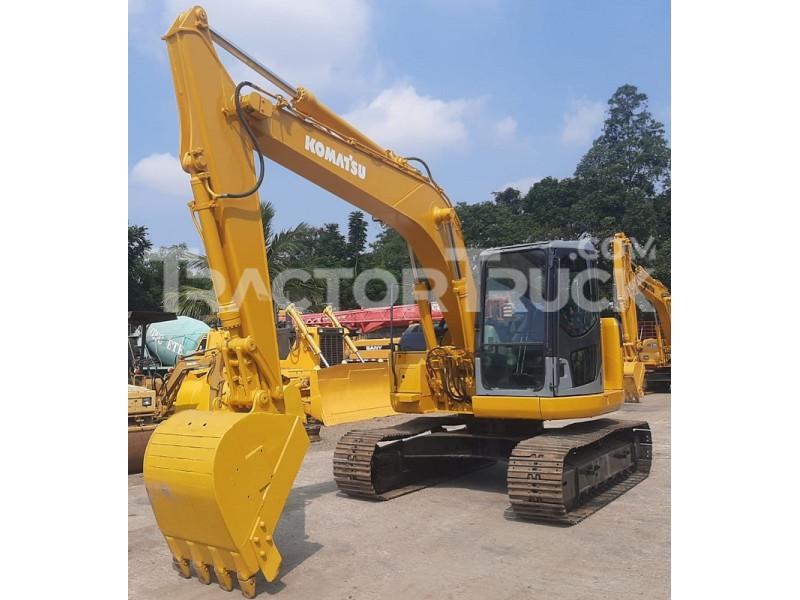

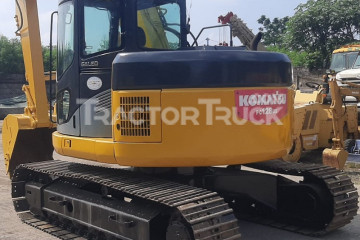

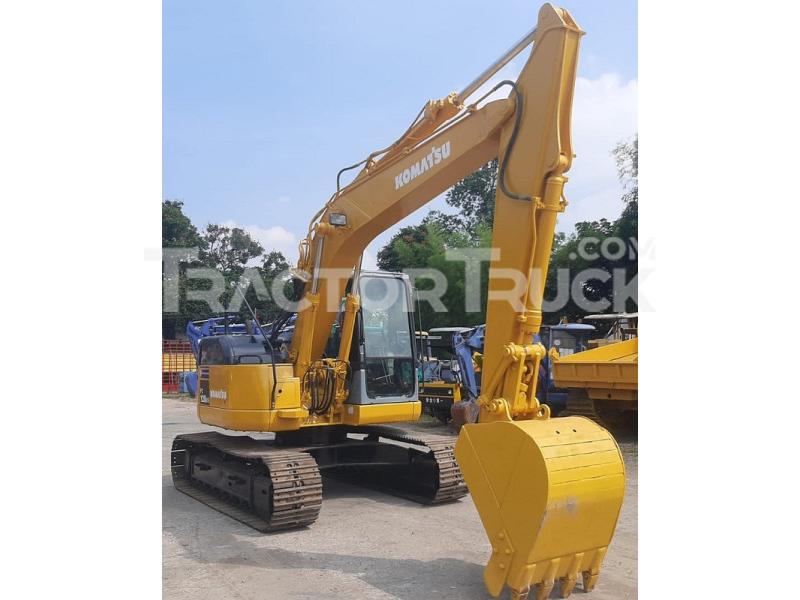

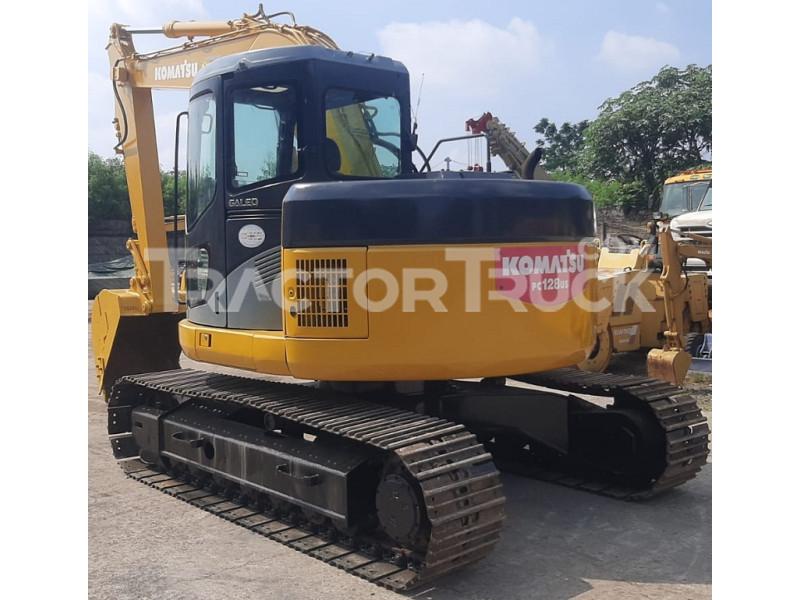

Dijual atas Excavator :
- Merek Komatsu
- Model PC128US-2
- Ex Import / Built Up
- Masuk Indonesia tahun 2022
- Ada Blade
- Belum pernah dipakai di Indonesia
- Kondisi siap kerja
- Harga Rp. 785 Juta
Rp. 785 Jt
Technical Specifications
| Shipping Length Of Unit | 7223.8 mm |
|---|---|
| Shipping Height Of Unit | 2813.3 mm |
| Max Cutting Height | 8945.9 mm |
| Max Loading Height | 6595.9 mm |
| Max Reach Along Ground | 7732.8 mm |
| Max Vertical Wall Digging Depth | 4465.3 mm |
| Max Digging Depth | 5001.8 mm |
| Boom/Stick Option (Hex) 1 | boom 4600 mm w/ arm 2100mm |
| Shipping Length Of Unit | 7220.7 mm |
| Max Cutting Height | 9262.9 mm |
| Shipping Height Of Unit | 2849.9 mm |
| Max Loading Height | 6912.9 mm |
| Max Reach Along Ground | 8110.7 mm |
| Max Vertical Wall Digging Depth | 4861.6 mm |
| Max Digging Depth | 5407.2 mm |
| Boom/Stick Option (Hex) 2 | boom 4600 mm w/ arm 2600mm |
| Shipping Length Of Unit | 7120.1 mm |
| Max Cutting Height | 9695.7 mm |
| Max Loading Height | 7345.7 mm |
| Shipping Height Of Unit | 3188.2 mm |
| Max Reach Along Ground | 8601.5 mm |
| Max Vertical Wall Digging Depth | 5346.2 mm |
| Max Digging Depth | 5907 mm |
| Boom/Stick Option (Hex) 3 | boom 4600mm w/ arm 3000mm |
| Ground Clearance | 390.1 mm |
| Height To Top Of Cab | 2810.3 mm |
| Width To Outside Of Tracks | 2490.2 mm |
| Length Of Track On Ground | 2752.3 mm |
| Tail Swing Radius | 1481.3 mm |
| Removal Counterweight Clearance | 896.1 mm |
| Track Gauge | 1990.3 mm |
| Shoe Size | 500.1 mm |
| Max Travel Speed | 5.1 km/h |
| Ground Pressure | 43.2 kPa |
| Number Of Shoes Per Side | 42 |
| Number Of Carrier Rollers Per Side | 1 |
| Number Of Track Rollers Per Side | 7 |
| Drawbar Pull | 11216.9 kg |
| Number Of Cylinders | 4 |
| Engine Make | 2238 |
| Engine Model | S4D102E |
| Gross Power | 64.1 kw |
| Power Measured @ | 2200 rpm |
| Displacement | 3.9 L |
| Aspiration | Turbochaged |
| Operating Weight | 13000 kg |
| Fuel Capacity | 200.2 L |
| Cooling System Fluid Capacity | 18.5 L |
| Hydraulic System Fluid Capacity | 69.3 L |
| Engine Oil Capacity | 17 L |
| Operating Voltage | 24 V |
| Swing Drive Fluid Capacity | 2.6 L |
| Alternator Supplied Amperage | 25 amps |
| Hydraulic System Relief Valve Pressure | 34818.5 kPa |
| Hydraulic Pump Flow Capacity | 226.4 L/min |
| Swing Speed | 11 rpm |
| Reference Bucket Capacity | 0.5 m3 |
| Minimum Bucket Capacity | 0.4 m3 |
| Maximum Bucket Capacity | 0.8 m3 |
