| Kondisi | Used |
|---|---|
| Lokasi | DKI JAKARTA |

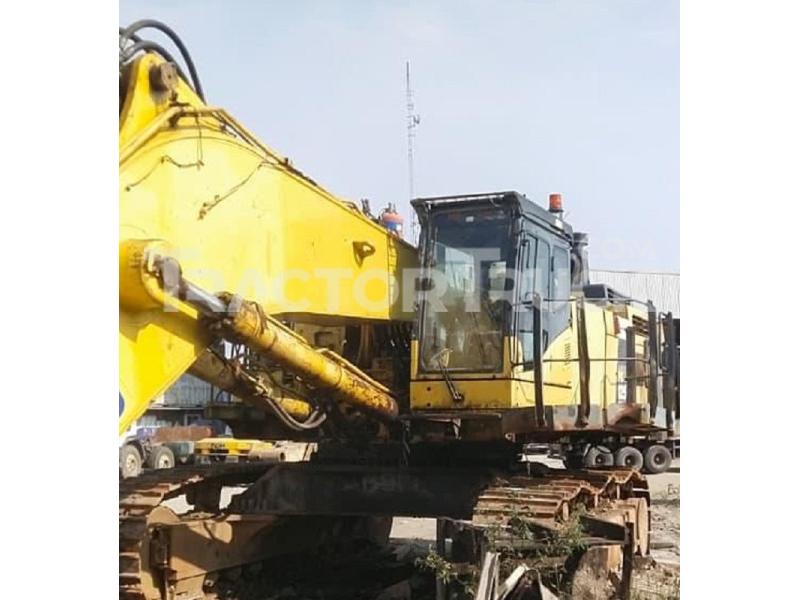

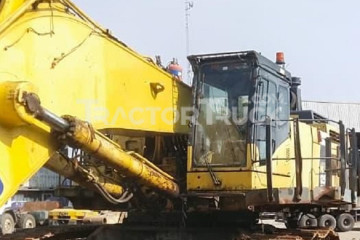

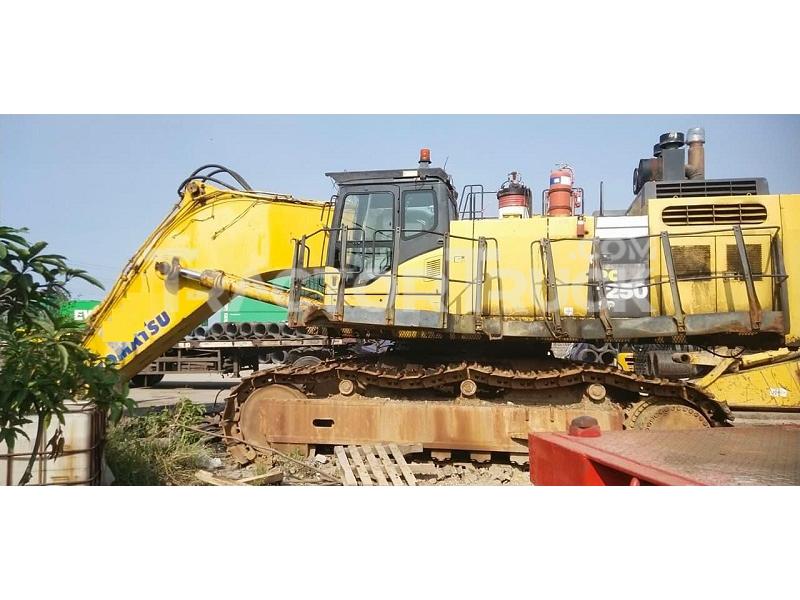

For Sale Excavator :
- Brand Komatsu
- Model PC1250SP-8R
- Year 2018
- As Is Condition & Running
- Hour Meter 25,500
- Serial Number J10148
- Price ex Work Java US$ 112,500
Rp. 113 Rb
Technical Specifications
| Ground Clearance | 1792.2 mm |
|---|---|
| Track Gauge | 701 mm |
| Overall Height | 6266.7 mm |
| Overall Track Width | 5355.3 mm |
| Overall Length | 14791.9 mm |
| Track Length On Ground | 6425.2 mm |
| Shoe Size | 700 mm |
| Track Rollerframe | Box-section |
| Number Of Carrier Rollers Per Side | 3 |
| Number Of Shoes Per Side | 48 |
| Number Of Track Shoes Per Side | 8 |
| Seal Of Track | Sealed |
| Track Adjustment | Hydraulic |
| Centre Frame | H-Leg Frame |
| Horsepower | Gross-Sae J1995 689.3 |
| Horsepower | Net-Iso 9249 673.2 |
| Horsepower | Net-Sae J1349 673.2 |
| Fan Drive Method | Hydraulic |
| Number Of Cylinders | 6 |
| Engine Model | Komatsu SAA6D170E-5 |
| Engine Type | 4-cycle water-cooled |
| Governor | All-speed electronic |
| Power Measured @ | 1800 rpm |
| Displacement | 23.2 L |
| Aspiration | Turbocharged and after cooled |
| Bore | 170.2 mm |
| Stroke | 170.2 mm |
| Gradeability | 70 % |
| Travel Speeds | 3.2 km/h |
| Swing Drive | 40.1 L |
| Fuel Tank | 1360.1 L |
| Hydraulic Tank | 670 L |
| Final Drive | 21.2 L |
| Engine Oil | 86.3 L |
| Radiator | 142.3 L |
| Boom Size | 6700022.2 mm |
| Boom Type | Super Excavation |
| Arm Size | 29900026.6 mm |
| Arm Crowd Force – Iso | 29900 |
| Arm Type | Super Excavation |
| Bucket Crowd Force – Iso | 27700 |
| Bucket Size – Kga Standard Gp | 3.5 m3 |
| Digging Depth – Maximum | 7071.4 mm |
| Digging Reach – Maximum | 11551.9 mm |
| Maximum Reach @ Ground Level | 11308.1 mm |
| Swing Radius | 3962.4 mm |
| Swing Speed | 5.8 rpm |
| Operating Weight | 61000 kg |
| Hydraulic System Type | Open -center Load Sensing |
| Selectable Work Modes | 2 |
| Economy Sub-Mode Selections | 4 |
| Main Pump Type | Variable-capacity piston |
| Maximum Flow Rate | 988.4 L/min |
