| Kondisi | Used |
|---|---|
| Lokasi | KALIMANTAN TIMUR |

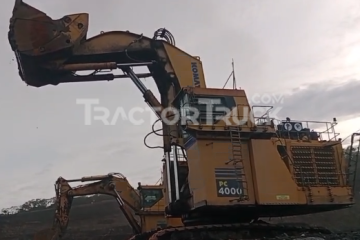

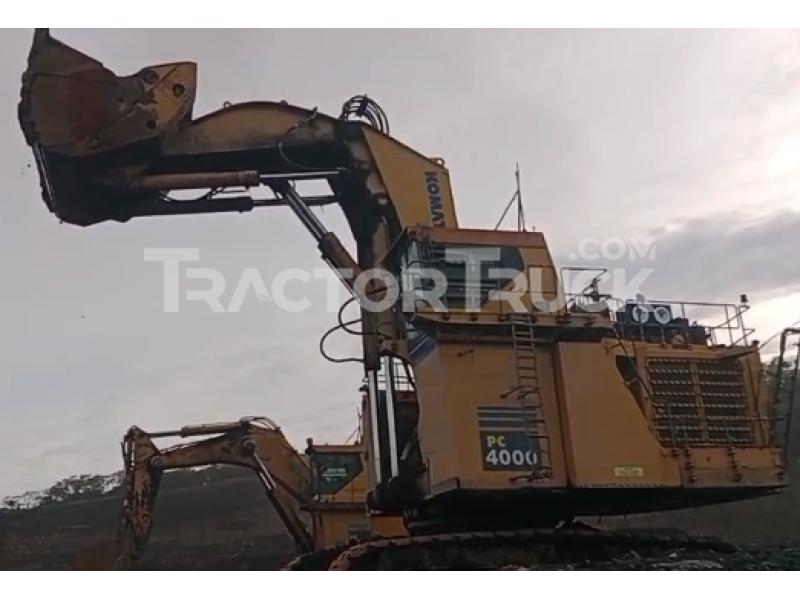

Dijual atas Excavator :
- Merek Komatsu
- Model PC4000-6
- Tahun 2012
- Ada 6 Unit
- Kondisi As Is dan Running
- Harga Loko Jobsite Rp. 4,45 Milyar per Unit
Rp. 4,45 M
Technical Specifications
| Backhoe Boom Length | 9750 mm |
|---|---|
| Backhoe Break-Out Force (Iso) | 1239 kN |
| Backhoe Max. Digging Depth | 15000 mm |
| Backhoe Max. Digging Reach | 17500 mm |
| Backhoe Max. Dumping Height | 9700 mm |
| Backhoe Stick Length | 4500 mm |
| Bucket Opening Width | 2650 mm |
| Crowd Force (Iso) | 1330 kN |
| Front Shovel Boom Length | 7150 mm |
| Front Shovel Break-Out Force (Iso) | 1349 kN |
| Front Shovel Max. Digging Depth | 2900 mm |
| Front Shovel Max. Digging Reach | 15100 mm |
| Front Shovel Max. Dumping Height | 12000 mm |
| Front Shovel Stick Length | 4900 mm |
| Level Crowd At Ground Level | 5700 mm |
| Max. Cutting Height | 17400 mm |
| Max. Digging Height | 9700 mm |
| Max. Digging Reach At Ground Level | 16650 mm |
| Tear-Out Force (Iso) | 1058 kN |
| Number Of Top Rollers Per Side | 3 |
| Number Of Track Shoes Per Side | 49 |
| Track Adjustment | Automatic hydraulic type |
| Number Of Bottom Rollers Per Side | 7 |
| Electric Drive Type | Squirrel cage induction motor |
| Power Output | 1350 kw |
| Voltage | 6.000 – 7.200 V |
| Amperage (Approximate) | 145 A - 120 A |
| Frequency Standard | 60 Hz @ 1800 rpm |
| Frequency Option | 50 Hz @ 1500 rpm |
| System | 24 V |
| Batteries (Series/Parallel) | 3 x 2 x 12 V |
| Alternator | 260 A |
| Standard Working Lights | 14 LED lights |
| Standard Service Lights | throughout the platform |
| Hydraulic Motors And Drives | 2 |
| Swing Brake, Service | Hydraulic brake |
| Swing Brake, Parking | Wet, multiple-disc |
| Swing Ring Teeth | External |
| Swing Speed (Maximum) | 4 rpm |
| Number Of Cylinders | 16 |
| Tier 1 Engine: Model | Komatsu SDA16V160 |
| Tier 2 Engine: Model | Komatsu SDA16V160E-2 |
| Engine Type | 4-cycle, water-cooled, direct injection |
| Governor | All-speed, electronic |
| Rated Power | 1400 kW 1875 HP @ 1800 rpm |
| Aspiration | Turbocharged and aftercooled |
| Shovel Capacity | 22 m3 29 yd3 SAE 2:1 heaped |
| Backhoe Capacity | 22 m3 29 yd3 SAE 1:1 heaped |
| Fuel Tank - Diesel | 6400 L |
| Hydraulic Tank | 3900 L |
| Hydraulic System | 5900 L |
| Engine Oil | 290 L |
| Engine Coolant | 475 L |
| Reserve Engine Oil Make Up Tank | 460 L |
| Operating Weight | 388 – 399 ton / 855,500 – 879,800 Ib |
| Relief Valve Setting | 30992 kPa |
| Swing Flow Rate | 1589.9 L/min |
| High Pressure In Line Filters | 200 microns one per pump located at the valve blocks |
| Rated Flow(Total Output) | 4148.9 L/min |
| Service Brake | Hydraulic brake |
| Parking Brake | Wet, multiple-disk |
| Travel Speed | 2.1 km/h |
| Gradeability | Up to 50 % |
| Travel Control | 2 foot pedals |
