| Kondisi | Used |
|---|---|
| Lokasi | BANTEN |

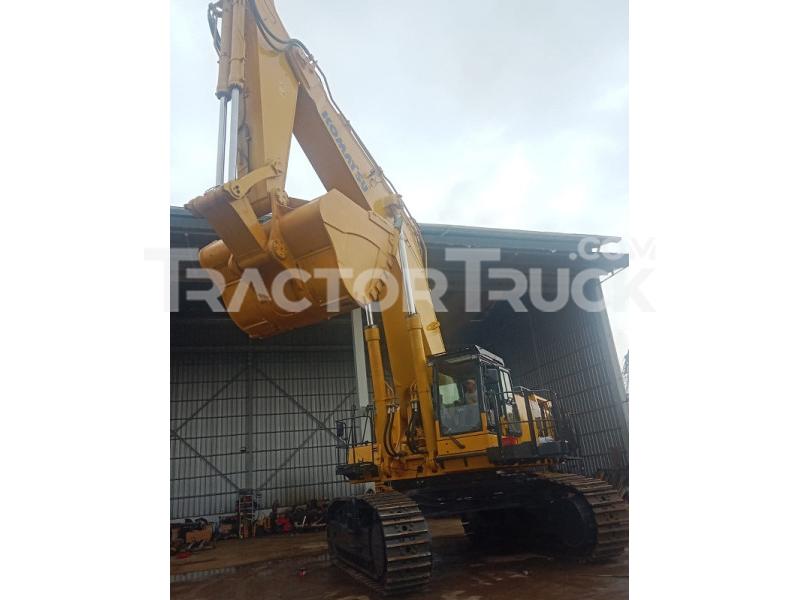

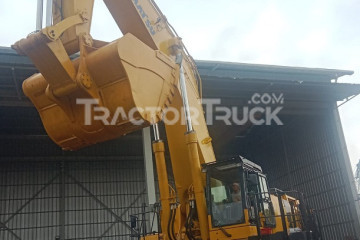

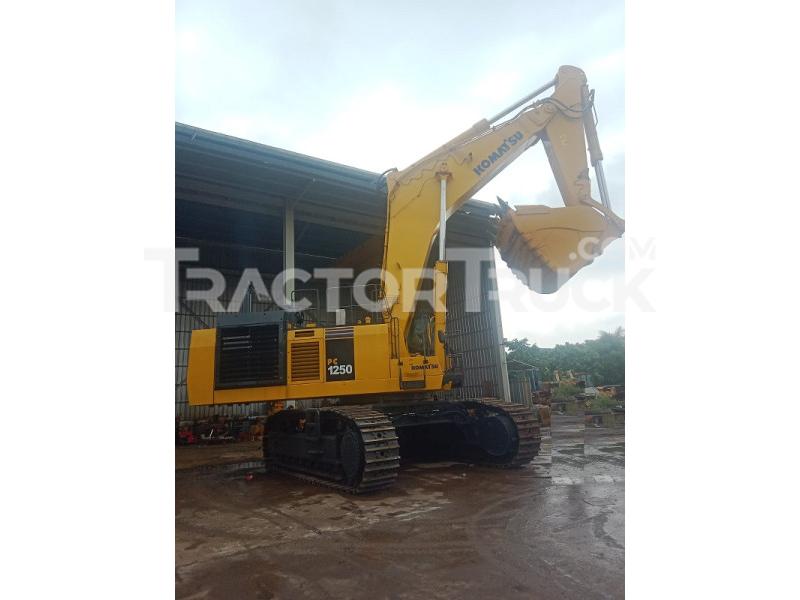

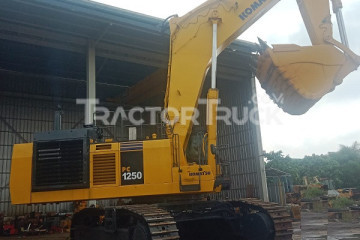

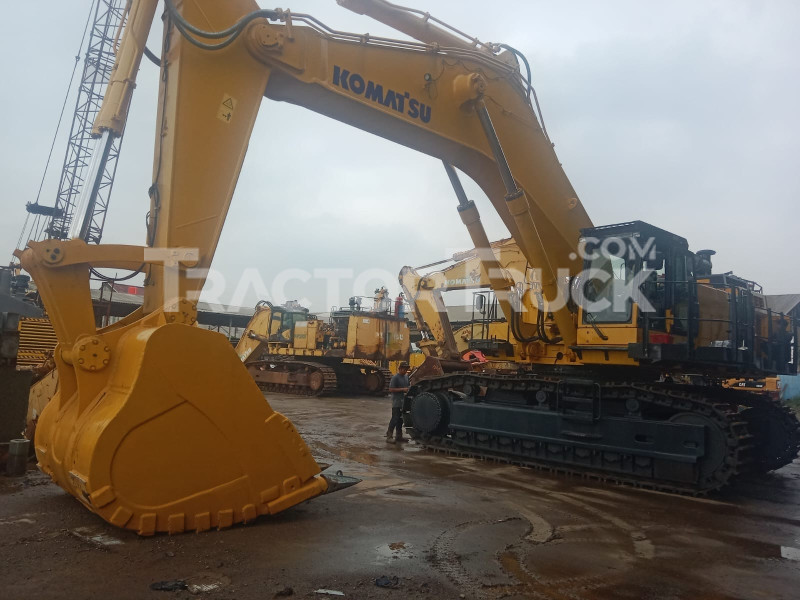

Dijual atas Excavator :
- Merek Komatsu
- Model PC1250-7
- Tahun 2010
- Harga Rp. 7,750 Milyar
Rp. 7,75 M
Technical Specifications
| Overall Length | 16020 mm |
|---|---|
| Max Dig Depth | 9350 mm |
| Height To Top Of Boom | 6040 mm |
| Max Vertical Wall Dig Depth | 7610 mm |
| Max Cutting Height | 13400 mm |
| Max Dump Height | 8680 mm |
| Backhoe Boom / Stick | boom w/ arm 3400mm |
| Arm Crowd Force | 88000 - |
| Max Reach On Ground | 15000 mm |
| Max Cutting Height | 13490 mm |
| Max Dump Height | 9000 mm |
| Overall Length | 16050 mm |
| Max Vertical Wall Dig Depth | 8490 mm |
| Height To Top Of Boom | 6460 mm |
| Max Dig Depth | 10440 mm |
| Arm Crowd Force | 72000 - |
| Backhoe Boom / Stick | boom w/ arm 4500mm |
| Max Reach On Ground | 16000 mm |
| Max Cutting Height | 13910 mm |
| Max Dump Height | 9440 mm |
| Max Vertical Wall Dig Depth | 9480 mm |
| Max Dig Depth | 11590 mm |
| Overall Length | 15840 mm |
| Height To Top Of Boom | 6990 mm |
| Backhoe Boom / Stick | boom w/ arm 5700mm |
| Max Reach On Ground | 17130 mm |
| Arm Crowd Force | 63000 - |
| Width Over Tracks | 4600 mm |
| Length Of Track On Ground | 4995 mm |
| Height To Top Of Cab | 4120 mm |
| Ground Clearance | 990 mm |
| Length Of Tracks | 6425 mm |
| Upper Structure Ground Clearance | 1790 mm |
| Max Dig Reach | 11400 mm |
| Max Dump Height | 8700 mm |
| Max Cutting Height | 12330 mm |
| Max Dig Depth | 3650 mm |
| Height To Top Of Boom - Shovel | 6200 mm |
| Overall Length - Shovel | 10940 mm |
| Arm Crowd Force | 137000 - |
| Loading Shovel | 6.5m (cube) bottom dump |
| Tail Swing Radius | 4870 mm |
| Loading Shovel Shoe Width | 700 mm |
| Track Gauge | 3900 mm |
| Backhoe Operating Weight - Shoe 2 | 109010 kg |
| Number Of Lower Rollers | 8 |
| Number Of Track Shoes Per Side | 48 |
| Number Of Upper Rollers | 3 |
| Max Travel Speed | 3.2 km/h |
| Backhoe Ground Pressure - Shoe 2 | 14.08 - |
| Backhoe Ground Pressure - Shoe 1 | 19.91 - |
| Loading Shovel Ground Pressure | 20.33 - |
| Loading Shovel Operating Weight | 109500 kg |
| Backhoe Operating Weight - Shoe 1 | 106700 kg |
| Backhoe Shoe Width 2 | 1000 mm |
| Backhoe Shoe Width 1 | 700 mm |
| Engine Make | 2238 |
| Engine Model | SAA6D170E-3 |
| Net Power | 485 kw |
| Displacement | 23.2 L |
| Aspiration | Turbocharged with aftercooler |
| Fuel Capacity | 1360 L |
| Cooling System Fluid Capacity | 140 L |
| Engine Oil Capacity | 56 L |
| Hydraulic System Fluid Capacity | 670 L |
| Swing Speed | 5.5 rpm |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 50 amps |
| Reference Bucket Capacity | 5 m3 |
