Alat Berat

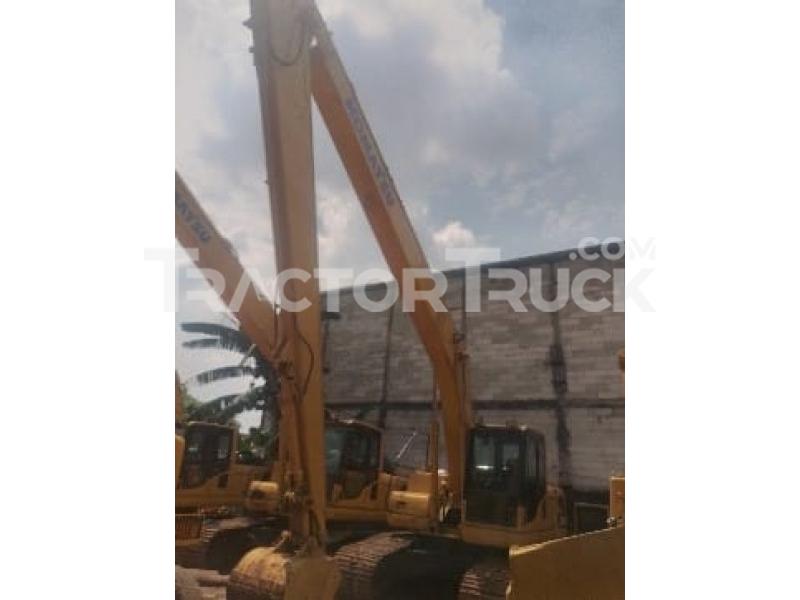

2011 Excavator Komatsu PC200-8

SKU: 0211230636
Last Update: 2024-05-20
Kondisi Used
Lokasi DKI JAKARTA

Dijual atas Long Arm Excavator :
- Merek Komatsu
- Model PC200-8
- Tahun 2011
- Unit baru selesai kerja
- Harga Rp. 650 Juta

Rp. 650 Jt
Share:

Technical Specifications

Shipping Length Of Unit 5702.8 mm
Shipping Height Of Unit 3191.3 mm
Max Cutting Height 9802.4 mm
Max Loading Height 6891.5 mm
Max Reach Along Ground 9192.8 mm
Max Vertical Wall Digging Depth 5434.6 mm
Max Digging Depth 6096 mm
Boom/Stick Option (Hex) 1 None / 7.92ft 2410mm
Shipping Length Of Unit 4815.8 mm
Max Cutting Height 10000.5 mm
Shipping Height Of Unit 3041.9 mm
Max Loading Height 7111 mm
Max Reach Along Ground 9701.8 mm
Max Vertical Wall Digging Depth 5968 mm
Max Digging Depth 6629.4 mm
Boom/Stick Option (Hex) 2 None / 9.58ft 2925mm
Ground Clearance 432.8 mm
Height To Top Of Cab 3048 mm
Width To Outside Of Tracks 3002.3 mm
Length Of Track On Ground 3276.6 mm
Tail Swing Radius 2743.2 mm
Removal Counterweight Clearance 1091.2 mm
Track Gauge 2200.7 mm
Shoe Size 800.1 mm
Drawbar Pull 18198.1 kg
Number Of Shoes Per Side 45
Number Of Carrier Rollers Per Side 2
Max Travel Speed 5.5 km/h
Number Of Track Rollers Per Side 7
Number Of Cylinders 6
Engine Make 2238
Engine Model SAA6D107E-1
Net Power 110.4 kw
Gross Power 115.6 kw
Power Measured @ 2000 rpm
Displacement 6.7 L
Aspiration Turbocharged and aftercooled
Operating Weight 20010 kg
Fuel Capacity 400.1 L
Cooling System Fluid Capacity 20.4 L
Hydraulic System Fluid Capacity 135.1 L
Engine Oil Capacity 23.1 L
Operating Voltage 24 V
Swing Drive Fluid Capacity 6.4 L
Alternator Supplied Amperage 50 amps
Hydraulic System Relief Valve Pressure 37231.7 kPa
Hydraulic Pump Flow Capacity 439.1 L/min
Swing Torque 67664.9 Nm
Swing Speed 12.4 rpm
Reference Bucket Capacity 1.1 m3
Minimum Bucket Capacity 0.5 m3
Maximum Bucket Capacity 1.2 m3
