| Kondisi | Used |
|---|---|
| Lokasi | DKI JAKARTA |

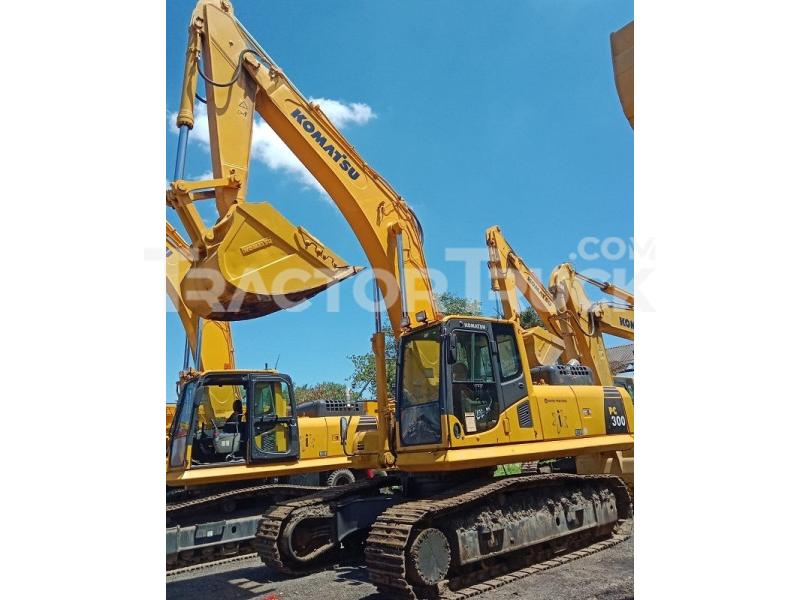

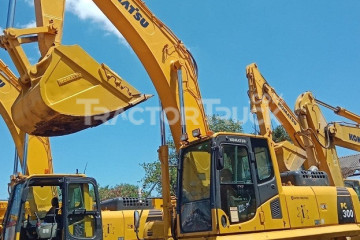

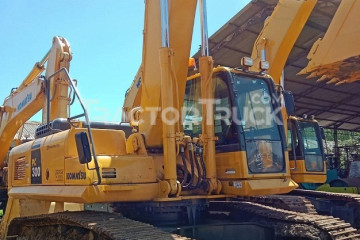

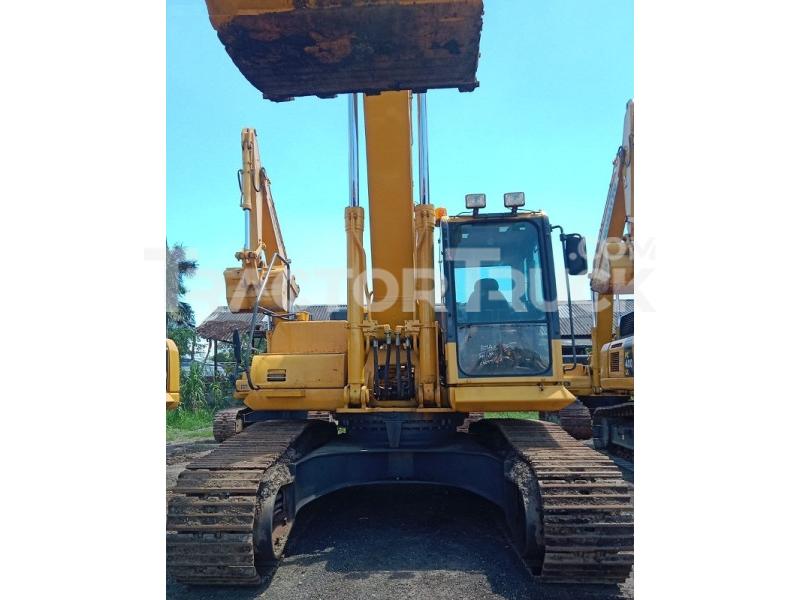

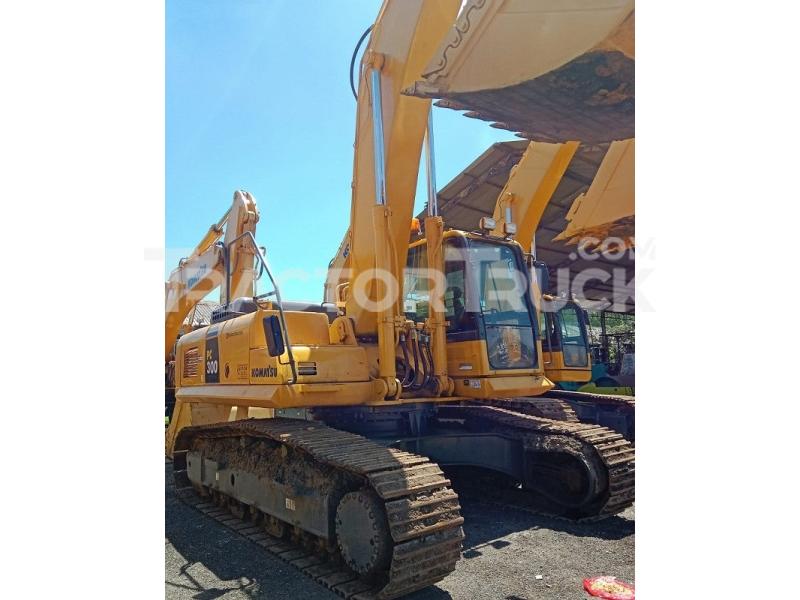

Dijual atas Excavator :
- Merek Komatsu
- Model PC300-8M0
- Tahun 2017
- Unit siap kerja
- Harga Rp. 1,5 Milyar
Rp. 1,5 M
Technical Specifications
| Ground Clearance | 502.9 mm |
|---|---|
| Tail Swing Radius | 3450.3 mm |
| Track Gauge | 2590.8 mm |
| Grouser Height | 36.6 mm |
| Machine Cab Height | 2587.8 mm |
| Machine Cab Width | 3090.7 mm |
| Width Of Crawler | 3191.3 mm |
| Ground Clearance (Minimum) | 502.9 mm |
| Ground Clearance | Counterweight 3.89 |
| Overall Track Width | 3191.3 mm |
| Shoe Width | 600.5 mm |
| Track Length | 385.6 mm |
| Track Length On Ground | 3700.3 mm |
| Distance | Swing Center To Rear End 11.18 |
| Overall Height | 3285.7 mm |
| Overall Length | 11152.6 mm |
| Shoe Size | 600.2 mm |
| Number Of Track Rollers Per Side | 7 |
| Number Of Carrier Rollers Per Side | 2 |
| Number Of Shoes Per Side | 45 |
| Track Adjuster | Hydraulic |
| Horsepower | Gross-Sae J1995 260.2 |
| Horsepower | Net-Iso 9249 250.8 |
| Horsepower | Net-Sae J1349 250.8 |
| Fan Drive Method | Mechanical |
| Number Of Cylinders | 6 |
| Engine Model | Komatsu SAA6D114E-3 |
| Power Measured @ | 1950 rpm |
| Displacement | 8.3 L |
| Drawbar Pull | Maximum 59304.4 |
| Gradeability | 70 % |
| Travel Speeds | 5.6 km/h |
| Swing Drive | 16.7 L |
| Fuel Tank | 605.3 L |
| Hydraulic Tank | 188.1 L |
| Final Drive | 9.1 L |
| Engine Oil | 37.1 L |
| Engine Coolant | 31 L |
| Boom Size | 6470020.1 mm |
| Boom Type | Heavy Duty |
| Arm Size | 3185007.6 mm |
| Arm Crowd Force – Iso | 17400 kgf |
| Arm Type | Heavy Duty |
| Bucket Crowd Force – Iso | 23200 kgf |
| Bucket Size – Kga Standard Gp | 1.7 m3 |
| Digging Depth – Maximum | 7406.6 mm |
| Digging Reach – Maximum | 11125.2 mm |
| Maximum Reach @ Ground Level | 10942.3 mm |
| Swing Radius | 3474.7 mm |
| Swing Speed | 9.5 rpm |
| Bucket Weight - Kga Gp | 1630 kg |
| Quick Hitch Weight – Kga | 483 kg |
| Total Operating Weight | 33800 kg |
| Hydraulic System Type | HydrauMind System |
| Selectable Work Modes | 6 |
| Economy Sub-Mode Selections | 4 |
| Main Pump Type | Variable displacement piston |
| Maximum Flow Rate | 535.3 L/min |
