| Kondisi | Used |
|---|---|
| Lokasi | DKI JAKARTA |

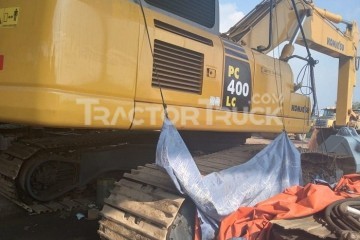

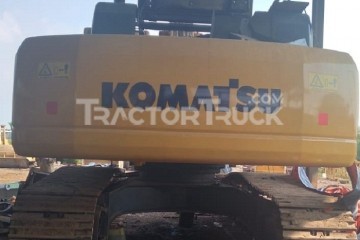

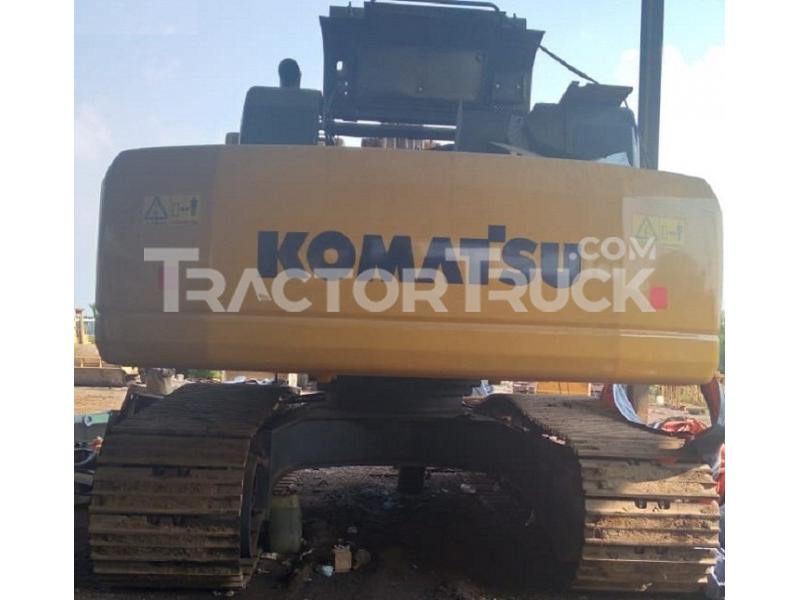

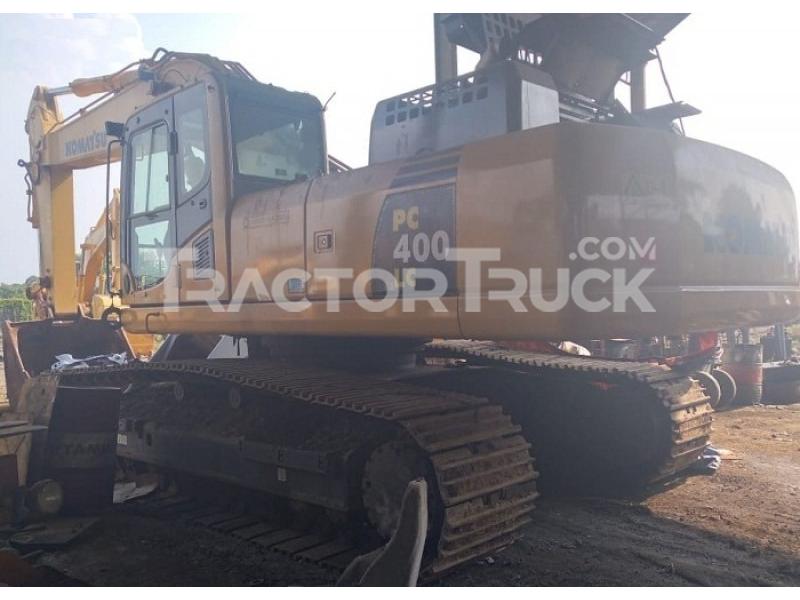

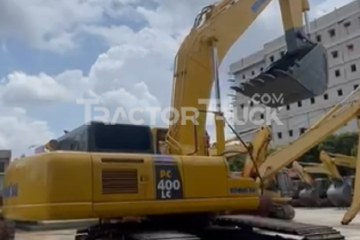

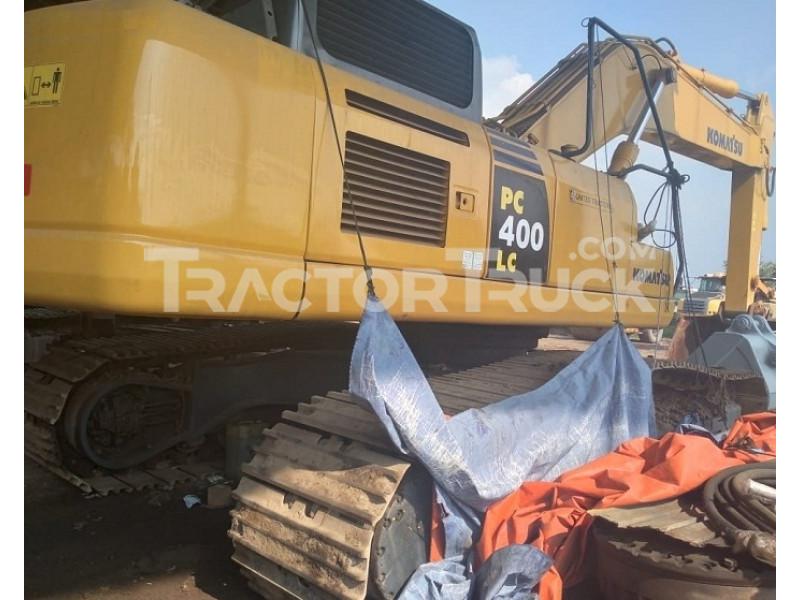

Dijual Excavator :
- Merek Komatsu
- Model PC400LC-8
- Tahun 2011
- Hour Meter 8000 an
- Harga Rp. 1,225 Milyar
Rp. 1,225 M
Technical Specifications
| Shipping Length Of Unit | 11905.5 mm |
|---|---|
| Shipping Height Of Unit | 3852.7 mm |
| Max Cutting Height | 10311.4 mm |
| Max Loading Height | 7071.4 mm |
| Max Reach Along Ground | 10857 mm |
| Max Vertical Wall Digging Depth | 5306.6 mm |
| Max Digging Depth | 6845.8 mm |
| Boom/Stick Option (Hex) 1 | One-piece Boom 7060mm / arm 2400mm |
| Shipping Length Of Unit | 11996.9 mm |
| Max Cutting Height | 10287 mm |
| Shipping Height Of Unit | 3746 mm |
| Max Loading Height | 7080.5 mm |
| Max Reach Along Ground | 11231.9 mm |
| Max Vertical Wall Digging Depth | 7345.7 mm |
| Max Digging Depth | 7345.7 mm |
| Boom/Stick Option (Hex) 2 | One-piece Boom 7060mm / arm 2900mm |
| Shipping Length Of Unit | 11942.1 mm |
| Max Cutting Height | 10917.9 mm |
| Max Loading Height | 7565.1 mm |
| Shipping Height Of Unit | 3636.3 mm |
| Max Reach Along Ground | 11820.1 mm |
| Max Vertical Wall Digging Depth | 6870.2 mm |
| Max Digging Depth | 7821.2 mm |
| Boom/Stick Option (Hex) 3 | One-piece Boom 7060mm / arm 3380mm |
| Shipping Length Of Unit | 11951.2 mm |
| Shipping Height Of Unit | 3886.2 mm |
| Max Cutting Height | 11027.7 mm |
| Max Loading Height | 7717.5 mm |
| Max Reach Along Ground | 12365.7 mm |
| Max Digging Depth | 8446 mm |
| Max Vertical Wall Dig Depth | 7287.8 mm |
| Boom/Stick Option (Hex) 4 | One-piece Boom 7060mm / arm 4000mm |
| Shipping Length Of Unit | 11795.8 mm |
| Shipping Height Of Unit | 4437.9 mm |
| Max Cutting Height | 11487.9 mm |
| Max Loading Height | 8147.3 mm |
| Max Reach Along Ground | 13182.6 mm |
| Max Digging Depth | 9256.8 mm |
| Max Vertical Wall Dig Depth | 8150.4 mm |
| Boom/Stick Option (Hex) 5 | One-piece Boom 7060mm / arm 4800mm |
| Ground Clearance | 551.7 mm |
| Height To Top Of Cab | 3267.5 mm |
| Width To Outside Of Tracks | 3642.4 mm |
| Length Of Track On Ground | 5385.8 mm |
| Tail Swing Radius | 3645.4 mm |
| Removal Counterweight Clearance | 1322.8 mm |
| Track Gauge | 2740.2 mm |
| Shoe Size | 900.2 mm |
| Ground Pressure | 67.1 kPa |
| Max Travel Speed | 5.5 km/h |
| Drawbar Pull | 33548.7 kg |
| Number Of Track Rollers Per Side | 8 |
| Number Of Shoes Per Side | 49 |
| Number Of Carrier Rollers Per Side | 2 |
| Number Of Cylinders | 6 |
| Engine Make | 2238 |
| Engine Model | SAA6D125E-5 |
| Net Power | 257 kw |
| Gross Power | 270 kw |
| Power Measured @ | 1900 rpm |
| Displacement | 11 L |
| Aspiration | Turbocharged aftercooled |
| Operating Weight | 45648 kg |
| Fuel Capacity | 650.3 L |
| Cooling System Fluid Capacity | 37.1 L |
| Hydraulic System Fluid Capacity | 248.3 L |
| Engine Oil Capacity | 38.2 L |
| Operating Voltage | 24 V |
| Swing Drive Fluid Capacity | 16.3 L |
| Alternator Supplied Amperage | 50 amps |
| Hydraulic System Relief Valve Pressure | 37231.7 kPa |
| Hydraulic Pump Flow Capacity | 690.1 L/min |
| Swing Torque | 150576 Nm |
| Swing Speed | 9 rpm |
| Reference Bucket Capacity | 2 m3 |
| Minimum Bucket Capacity | 1.1 m3 |
| Maximum Bucket Capacity | 2.9 m3 |
