| Kondisi | Used |
|---|---|
| Lokasi | BANTEN |

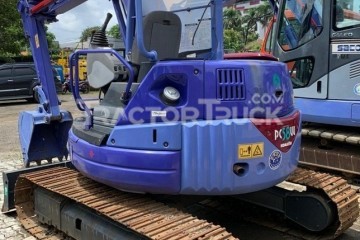

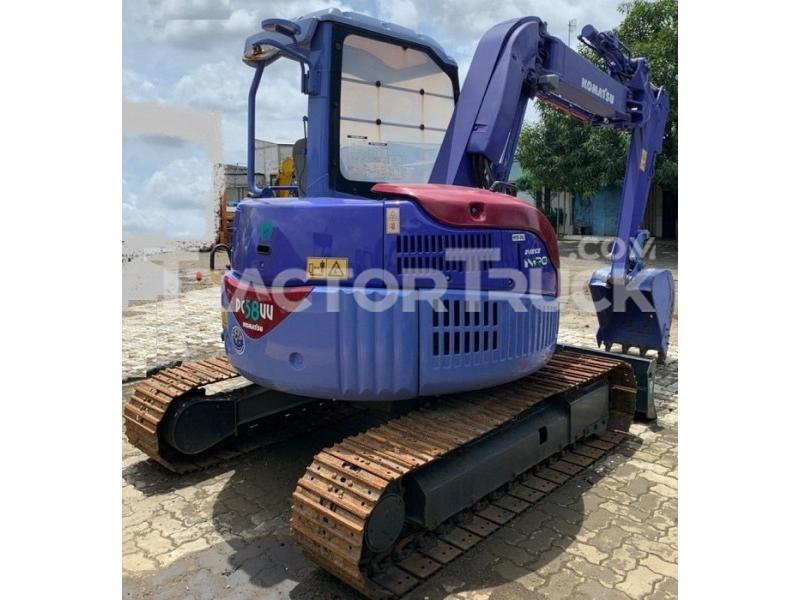

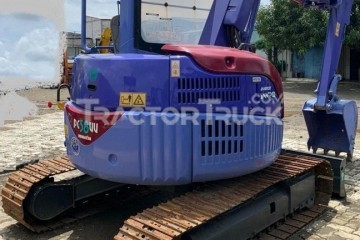

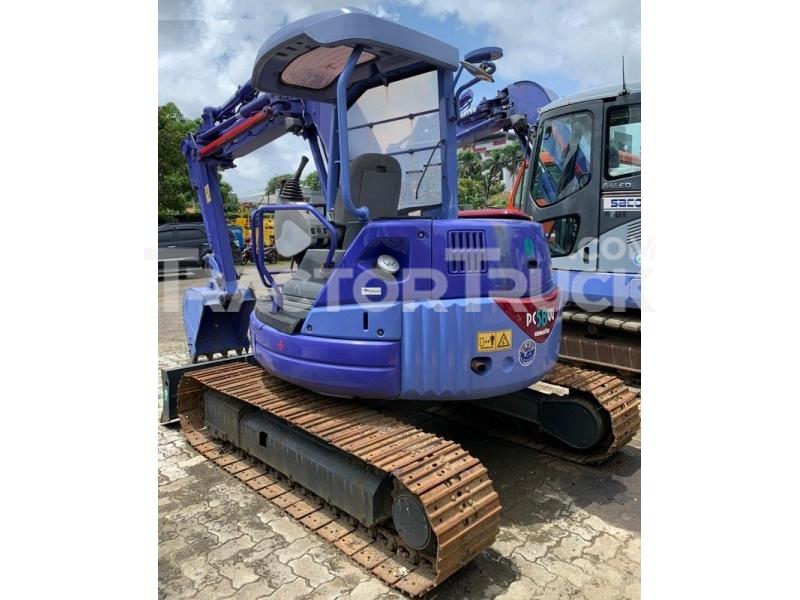

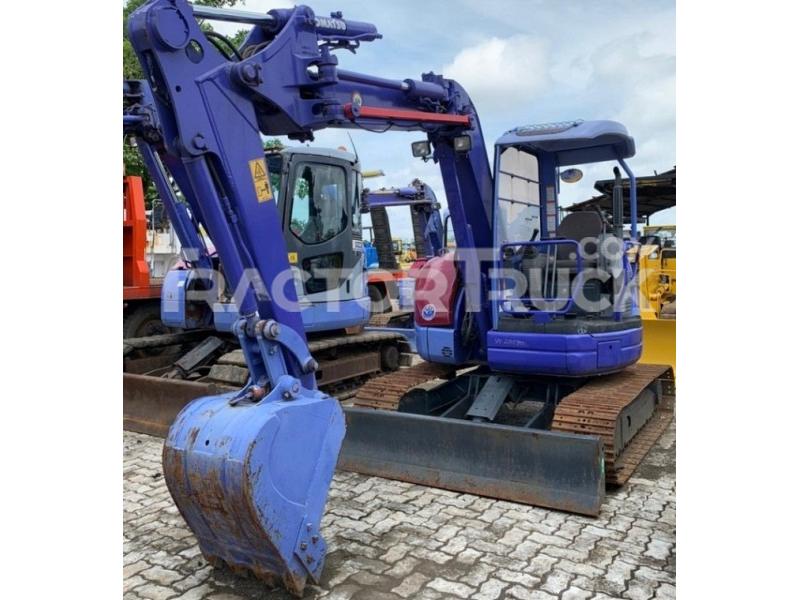

Dijual Excavator Mini :
- Merek Komatsu
- Model PC58UU-3
- Ex Import, Built Up
- Masuk Indonesia tahun 2018
- Memakai Track besi
- Semi Cabin dan ada Blade
- Harga Rp. 445 Juta
Untuk informasi lebih lanjut dapat menghubungi Bpk. MANAN di 0813-85189222 & Whatsapp di 0812-35189222 atau 021-8510550
Rp. 445 Jt
Technical Specifications
| Shipping Length Of Unit | 6324.6 mm |
|---|---|
| Max Cutting Height | 4852.4 mm |
| Max Loading Height | 4596.4 mm |
| Max Reach Along Ground | 3986.8 mm |
| Max Vertical Wall Digging Depth | 3505.2 mm |
| Max Digging Depth | 2895.6 mm |
| Boom/Stick Option (Hex) 1 | 1060mm 3'6" |
| Shipping Length Of Unit | 6653.8 mm |
| Max Cutting Height | 4876.8 mm |
| Max Loading Height | 3986.8 mm |
| Max Reach Along Ground | 4395.2 mm |
| Max Digging Depth | 3148.6 mm |
| Boom/Stick Option (Hex) 2 | 1275mm 4'2" |
| Width To Outside Of Tracks | 405.4 mm |
| Length Of Track On Ground | 5334 mm |
| Ground Clearance | 1905 mm |
| Height To Top Of Cab | 2615.2 mm |
| Tail Swing Radius | 405.4 mm |
| Removal Counterweight Clearance | 2462.8 mm |
| Max Travel Speed | 4.5 km/h |
| Drawbar Pull | 4649.8 kg |
| Number Of Track Rollers Per Side | 5 |
| Number Of Shoes Per Side | 38 |
| Number Of Carrier Rollers Per Side | 1 |
| Number Of Cylinders | 4 |
| Engine Make | 2238 |
| Engine Model | 4D88E |
| Gross Power | 29.8 kw |
| Displacement | 2.2 L |
| Operating Weight | 5293.4 kg |
| Fuel Capacity | 79.9 L |
| Operating Voltage | 12 V |
| Hydraulic System Fluid Capacity | 64 L |
| Engine Oil Capacity | 9.1 L |
| Alternator Supplied Amperage | 40 amps |
| Swing Speed | 10 rpm |
| Reference Bucket Capacity | 0.2 m3 |
