| Kondisi | Used |
|---|---|
| Lokasi | BANTEN |

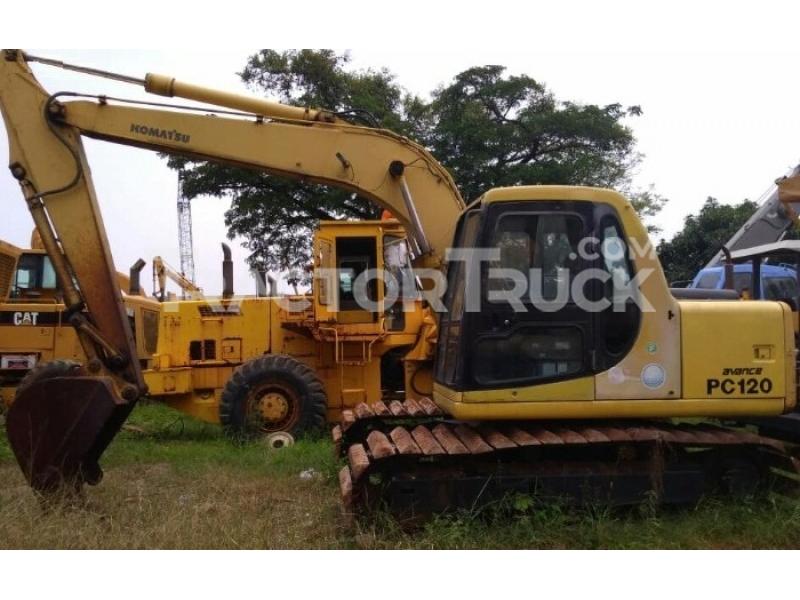

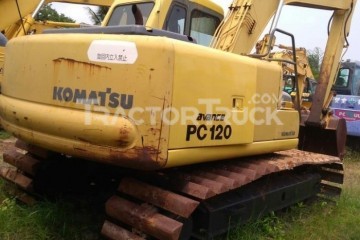

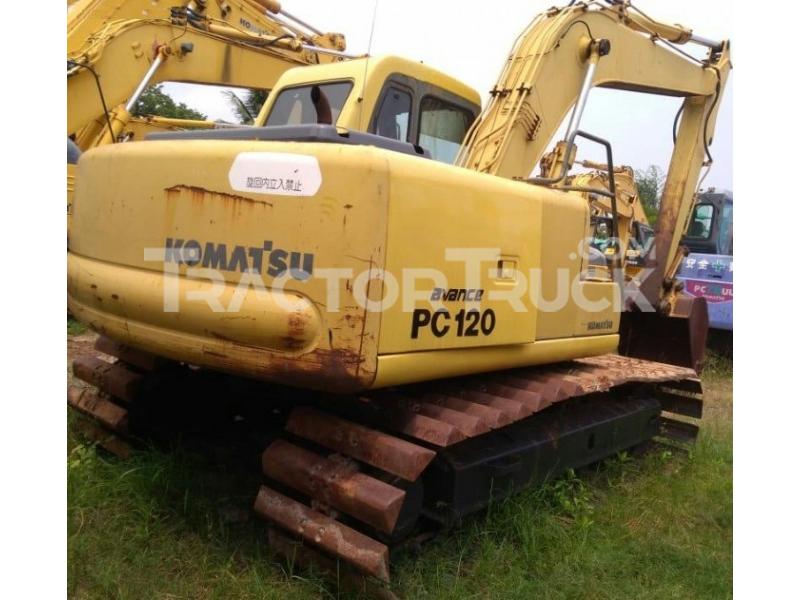

Dijual atas Alat Berat bekas :
- Excavator
- Merek Komatsu
- Model PC120 advance
- Track type Swamp Shoe
- Ex Import / Built Up
- Masuk Indonesia tahun 2020
- Belum pernah dipkai di Lokal
- Harga Rp. 635 Juta
Rp. 635 Jt
Technical Specifications
| Shipping Length Of Unit | 7470.6 mm |
|---|---|
| Shipping Height Of Unit | 2676.1 mm |
| Max Cutting Height | 7552.9 mm |
| Max Loading Height | 5221.2 mm |
| Max Reach Along Ground | 7540.8 mm |
| Max Vertical Wall Digging Depth | 4200.1 mm |
| Max Digging Depth | 5001.8 mm |
| Boom/Stick Option (Hex) 1 | Boom 15'1" (4600mm)/Stick 6'7" (2002mm) |
| Max Cutting Height | 7702.3 mm |
| Max Loading Height | 5550.4 mm |
| Max Reach Along Ground | 8342.4 mm |
| Max Vertical Wall Digging Depth | 4690.9 mm |
| Max Digging Depth | 5940.6 mm |
| Boom/Stick Option (Hex) 2 | Boom 15'1" (4600mm)/Stick 9'10" (3000mm) |
| Ground Clearance | 402.3 mm |
| Height To Top Of Cab | 2676.1 mm |
| Width To Outside Of Tracks | 2432.3 mm |
| Length Of Track On Ground | 2572.5 mm |
| Tail Swing Radius | 2225 mm |
| Removal Counterweight Clearance | 911.4 mm |
| Track Gauge | 1950.7 mm |
| Shoe Size | 480.1 mm |
| Max Travel Speed | 3.6 km/h |
| Ground Pressure | 41.2 kPa |
| Engine Make | 2238 |
| Engine Model | S4D105-5 |
| Gross Power | 67.1 kw |
| Aspiration | turbocharged |
| Displacement | 4.3 L |
| Operating Weight | 11498.6 kg |
| Fuel Capacity | 230.2 L |
| Hydraulic System Fluid Capacity | 145.4 L |
| Hydraulic System Relief Valve Pressure | 17236.9 kPa |
| Hydraulic Pump Flow Capacity | 323.3 L/min |
| Swing Speed | 12 rpm |
