| Kondisi | Used |
|---|---|
| Lokasi | BANTEN |

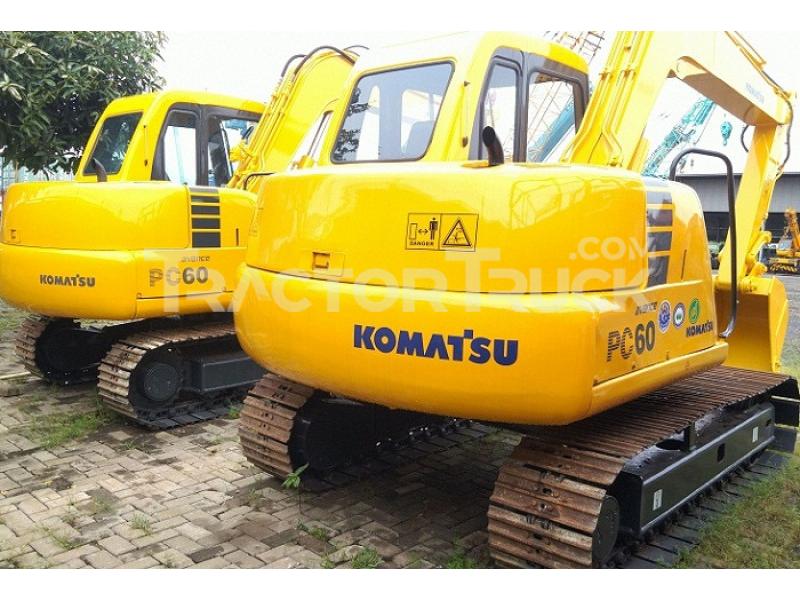

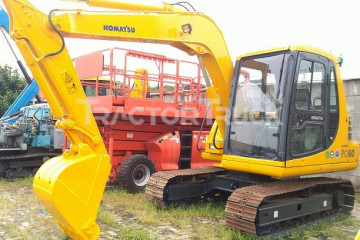

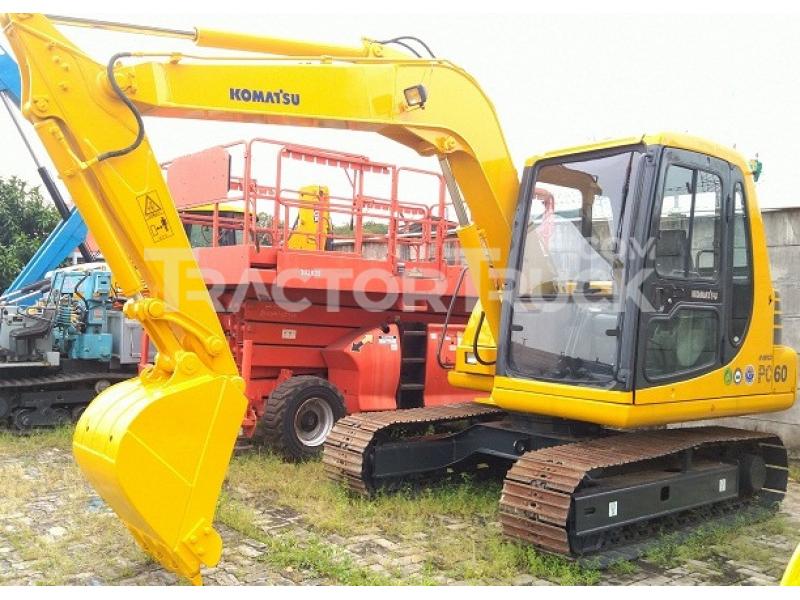

Dijual Excavator :
- Merek Komatsu
- Model PC60-7
- Ex Import / Built Up
- Masuk Indonesia tahun 2015
- Belum pernah dipakai di Lokal
- Memakai Cabin
- Ada Instalasi Hydraulic Breaker
- Harga Rp. 435 Juta.
Rp. 435 Jt
Download dokumen
Dokumen 1Technical Specifications
| Shipping Length Of Unit | 6080.8 mm |
|---|---|
| Shipping Height Of Unit | 2590.8 mm |
| Max Cutting Height | 7150.6 mm |
| Max Loading Height | 5017 mm |
| Max Reach Along Ground | 6221 mm |
| Max Vertical Wall Digging Depth | 3505.2 mm |
| Max Digging Depth | 4102.6 mm |
| Boom/Stick Option (Hex) 1 | Boom 12'2" (3710mm)/Stick 5'5" (1650mm) |
| Shipping Length Of Unit | 6105.1 mm |
| Shipping Height Of Unit | 2831.6 mm |
| Max Cutting Height | 7120.1 mm |
| Max Loading Height | 5032.2 mm |
| Max Reach Along Ground | 6772.7 mm |
| Max Digging Depth | 4602.5 mm |
| Max Vertical Wall Digging Depth | 3807 mm |
| Boom/Stick Option (Hex) 2 | Boom 12'2" (3710mm)/Stick 7'5" (2250mm) |
| Width To Outside Of Tracks | 2151.9 mm |
| Length Of Track On Ground | 2130.6 mm |
| Ground Clearance | 350.5 mm |
| Height To Top Of Cab | 2590.8 mm |
| Tail Swing Radius | 1752.6 mm |
| Removal Counterweight Clearance | 752.9 mm |
| Shoe Size | 450.1 mm |
| Track Gauge | 1700.8 mm |
| Max Travel Speed | 4.5 km/h |
| Ground Pressure | 29.6 kPa |
| Number Of Cylinders | 4 |
| Engine Make | 2238 |
| Engine Model | 4D102E |
| Gross Power | 40 kw |
| Power Measured @ | 1750 rpm |
| Displacement | 3.9 L |
| Operating Weight | 6280 kg |
| Fuel Capacity | 130.2 L |
| Hydraulic System Fluid Capacity | 57.2 L |
| Hydraulic System Relief Valve Pressure | 24545.3 kPa |
| Hydraulic Pump Flow Capacity | 155.2 L/min |
| Swing Speed | 12 rpm |
| Reference Bucket Capacity | 0.3 m3 |
| Minimum Bucket Capacity | 0.2 m3 |
| Maximum Bucket Capacity | 0.4 m3 |
