| Kondisi | Used |
|---|---|
| Lokasi | BANTEN |

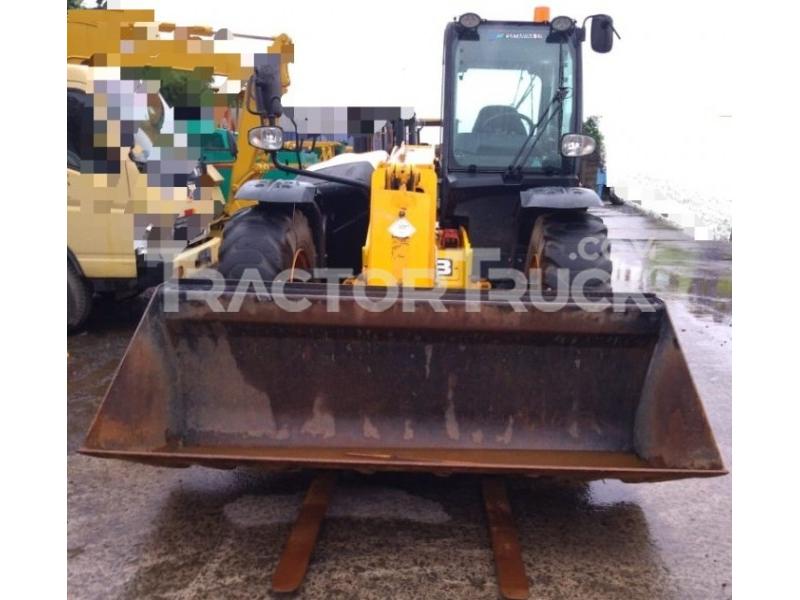

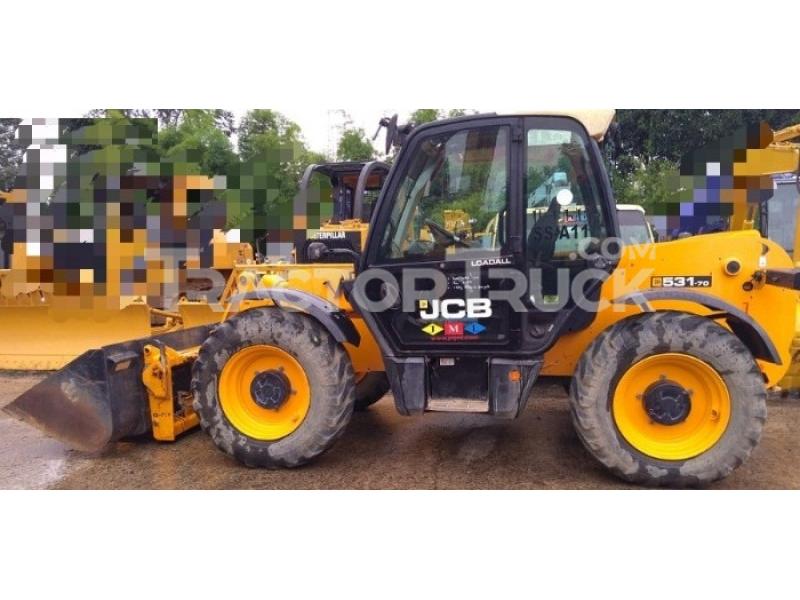

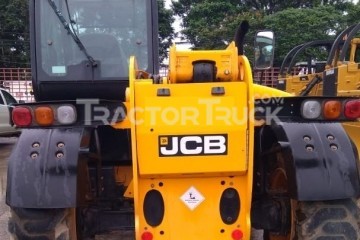

Dijual atas Tele Handler :
- Merek JCB
- Model 531-70
- Kapasitas Angkat 2,5 Ton
- Pembuatan tahun 2017
- Memakai Cabin
- Baru dipakai sebentar di Pertamina
- Gross Power 47 kw / 63 HP
- Number of 4 Cylinders
- Harga Rp. 850 Juta
Rp. 850 Jt
Technical Specifications
| Ground Clearance | 402.3 mm |
|---|---|
| Width Over Tires | 2231.1 mm |
| Overall Height | 2490.2 mm |
| Wheelbase | 2752.3 mm |
| Dump Angle | 37.5 degrees |
| Lift Capacity To Full Height | 2500 kg |
| Weight | 7850 kg |
| Max Lift Height | 12822.9 mm |
| Max Forward Reach | 9250.7 mm |
| Max Lift Capacity | 4100 kg |
| Number Of Cylinders | 4 |
| Engine Model | JCB EcoMAX T4i/IIIB |
| Aspiration | turbocharged cooled |
| Lift Capacity At Full Reach | 600 kg |
| Travel Speed | 20.1 km/h |
| Transmission Type | Hydrostatic |
| Bucket Crowd | 2.9 sec |
| Retract | 5 sec |
| Extend | 6.8 sec |
| Max Operating Pressure | 260 bar |
| Hydraulic Pump | 82 L |
| Raise Time | 8.8 sec |
| Dump Time | 5 sec |
| Lower Time | 6.5 sec |
