| Kondisi | Used |
|---|---|
| Lokasi | JAWA BARAT |

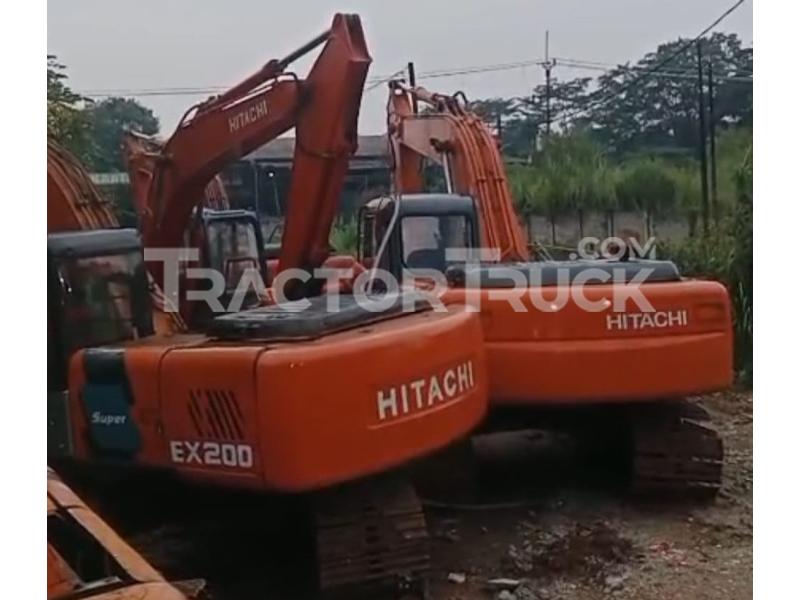

Dijual atas Excavator :
- Merek Hitachi
- Model EX200-3 Landy
- Saat ini ada 4 Unit
- Harga Rp. 235 Juta per Unit
Rp. 235 Jt
Technical Specifications
| Shipping Length Of Unit | 9561.6 mm |
|---|---|
| Shipping Height Of Unit | 3032.8 mm |
| Max Cutting Height | 9171.4 mm |
| Max Loading Height | 6391.7 mm |
| Max Reach Along Ground | 9080 mm |
| Max Vertical Wall Digging Depth | 5142 mm |
| Max Digging Depth | 5980.2 mm |
| Boom/Stick Option (Hex) 1 | Arm - 2.22 m 7.3 ft in |
| Shipping Length Of Unit | 9491.5 mm |
| Max Cutting Height | 9601.2 mm |
| Shipping Height Of Unit | 2892.6 mm |
| Max Loading Height | 6781.8 mm |
| Max Reach Along Ground | 9750.6 mm |
| Max Vertical Wall Digging Depth | 6050.3 mm |
| Max Digging Depth | 6672.1 mm |
| Boom/Stick Option (Hex) 2 | Arm - 2.291 m 9.7 ft in |
| Shipping Length Of Unit | 9601.2 mm |
| Max Cutting Height | 10223 mm |
| Max Loading Height | 7412.7 mm |
| Shipping Height Of Unit | 3502.2 mm |
| Max Reach Along Ground | 11131.3 mm |
| Max Vertical Wall Digging Depth | 7552.9 mm |
| Max Digging Depth | 8171.7 mm |
| Boom/Stick Option (Hex) 3 | Arm - 4.41 m 14.6 ft in |
| Ground Clearance | 451.1 mm |
| Height To Top Of Cab | 2852.9 mm |
| Width To Outside Of Tracks | 2852.9 mm |
| Length Of Track On Ground | 4172.7 mm |
| Tail Swing Radius | 2752.3 mm |
| Removal Counterweight Clearance | 1030.2 mm |
| Track Gauge | 2200.7 mm |
| Shoe Size | 600.2 mm |
| Number Of Carrier Rollers Per Side | 2 |
| Max Travel Speed | 5.5 km/h |
| Number Of Shoes Per Side | 46 |
| Number Of Track Rollers Per Side | 7 |
| Number Of Cylinders | 6 |
| Engine Make | Isuzu |
| Engine Model | 6BD1T |
| Net Power | 99 kw |
| Power Measured @ | 2050 rpm |
| Max Torque | 461.1 Nm |
| Displacement | 5.8 L |
| Torque Measured @ | 1600 rpm |
| Operating Weight | 15000 kg |
| Fuel Capacity | 310 L |
| Cooling System Fluid Capacity | 21.2 L |
| Hydraulic System Fluid Capacity | 230.2 L |
| Operating Voltage | 24 V |
| Engine Oil Capacity | 25.4 L |
| Swing Drive Fluid Capacity | 8.3 L |
| Hydraulic Pump Flow Capacity | 370.2 L/min |
| Swing Speed | 11 rpm |
