| Kondisi | Used |
|---|---|
| Lokasi | BANTEN |

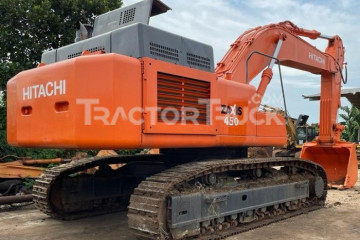

Dijual atas Excavator :
- Merek Hitachi
- Model ZX450LC-3F
- Pembuatan tahun 2010
- Unit baru selesai kerja
- Harga Rp. 975 Juta
Rp. 975 Jt
Technical Specifications
| Max Cutting Height | 10750.3 mm |
|---|---|
| Max Loading Height | 7211.6 mm |
| Max Reach Along Ground | 10320.5 mm |
| Max Vertical Wall Digging Depth | 4620.8 mm |
| Max Digging Depth | 5900.9 mm |
| Boom/Stick Option (Hex) 1 | Boom 6300mm/Stick 2500mm |
| Max Cutting Height | 10881.4 mm |
| Max Loading Height | 7330.4 mm |
| Max Reach Along Ground | 10610.1 mm |
| Max Vertical Wall Digging Depth | 5020.1 mm |
| Max Digging Depth | 6230.1 mm |
| Boom/Stick Option (Hex) 2 | Boom 6300mm/Stick 2900mm |
| Max Cutting Height | 10250.4 mm |
| Max Loading Height | 7031.7 mm |
| Max Reach Along Ground | 11170.9 mm |
| Max Vertical Wall Digging Depth | 5270 mm |
| Max Digging Depth | 7281.7 mm |
| Boom/Stick Option (Hex) 3 | Boom 7000mm/Stick 2900mm |
| Shipping Length Of Unit | 11911.6 mm |
| Shipping Height Of Unit | 3480.8 mm |
| Max Cutting Height | 11061.2 mm |
| Max Loading Height | 7650.5 mm |
| Max Reach Along Ground | 11841.5 mm |
| Max Digging Depth | 7772.4 mm |
| Boom/Stick Option (Hex) 4 | Boom 7000mm/Stick 3400mm |
| Max Vertical Wall Dig Depth | 6592.8 mm |
| Max Cutting Height | 11161.8 mm |
| Max Loading Height | 7772.4 mm |
| Max Reach Along Ground | 12280.4 mm |
| Max Digging Depth | 8272.3 mm |
| Max Vertical Wall Dig Depth | 6983 mm |
| Boom/Stick Option (Hex) 5 | Boom 7000mm/Stick 3900mm |
| Max Cutting Height | 12240.8 mm |
| Max Loading Height | 9220.2 mm |
| Max Reach Along Ground | 14331.7 mm |
| Max Digging Depth | 10232.1 mm |
| Boom/Stick Option (Hex) 6 | Boom 8200mm/Stick 4900mm |
| Max Vertical Wall Dig Depth | 9400 mm |
| Ground Clearance | 725.4 mm |
| Height To Top Of Cab | 3331.5 mm |
| Width To Outside Of Tracks | 3493 mm |
| Length Of Track On Ground | 4471.4 mm |
| Tail Swing Radius | 3645.4 mm |
| Removal Counterweight Clearance | 1362.5 mm |
| Track Gauge | 2892.6 mm |
| Shoe Size | 600.2 mm |
| Number Of Shoes Per Side | 53 |
| Max Travel Speed | 5.5 km/h |
| Number Of Track Rollers Per Side | 9 |
| Number Of Carrier Rollers Per Side | 3 |
| Ground Pressure | 79 kPa |
| Number Of Cylinders | 6 |
| Engine Make | 2353 |
| Engine Model | AH-6WG1XYSA-01 |
| Net Power | 234.1 kw |
| Power Measured @ | 1800 rpm |
| Max Torque | 1275 Nm |
| Displacement | 15.7 L |
| Aspiration | Turbocharged |
| Torque Measured @ | 1500 rpm |
| Operating Weight | 46700 kg |
| Fuel Capacity | 725.3 L |
| Cooling System Fluid Capacity | 55.3 L |
| Hydraulic System Fluid Capacity | 560.2 L |
| Engine Oil Capacity | 57.2 L |
| Swing Drive Fluid Capacity | 6.8 L |
| Hydraulic System Relief Valve Pressure | 34300 kPa |
| Hydraulic Pump Flow Capacity | 720.4 L/min |
| Swing Speed | 9 rpm |
| Reference Bucket Capacity | 1.9 m3 |
| Minimum Bucket Capacity | 1.2 m3 |
| Maximum Bucket Capacity | 2.7 m3 |
