| Kondisi | Used |
|---|---|
| Lokasi | BANTEN |

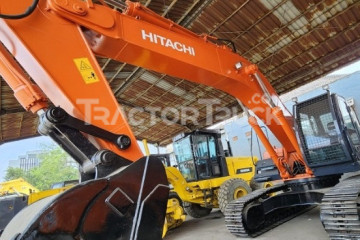

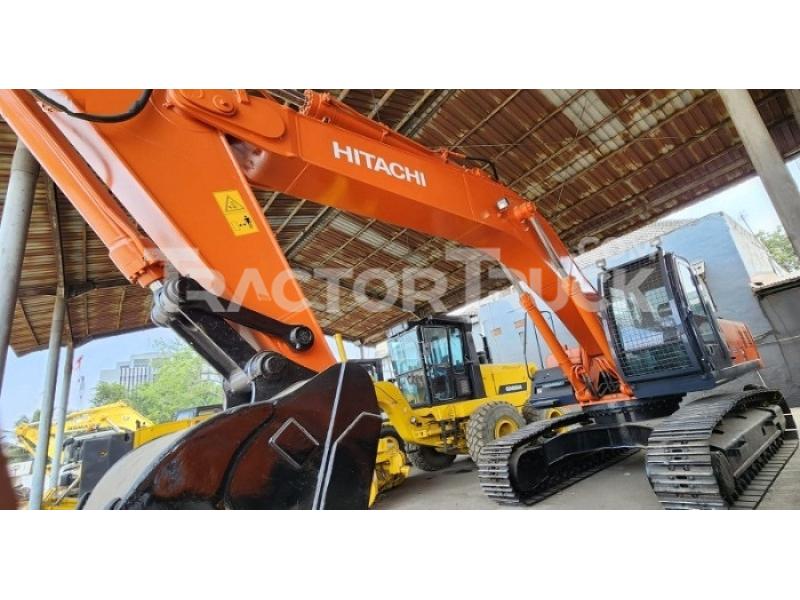

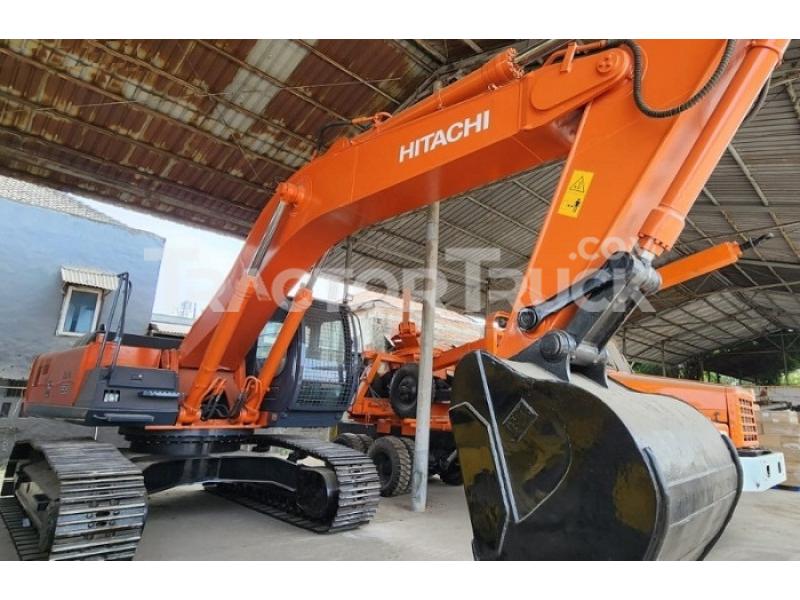

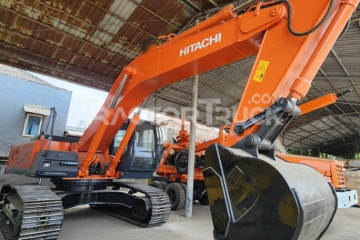

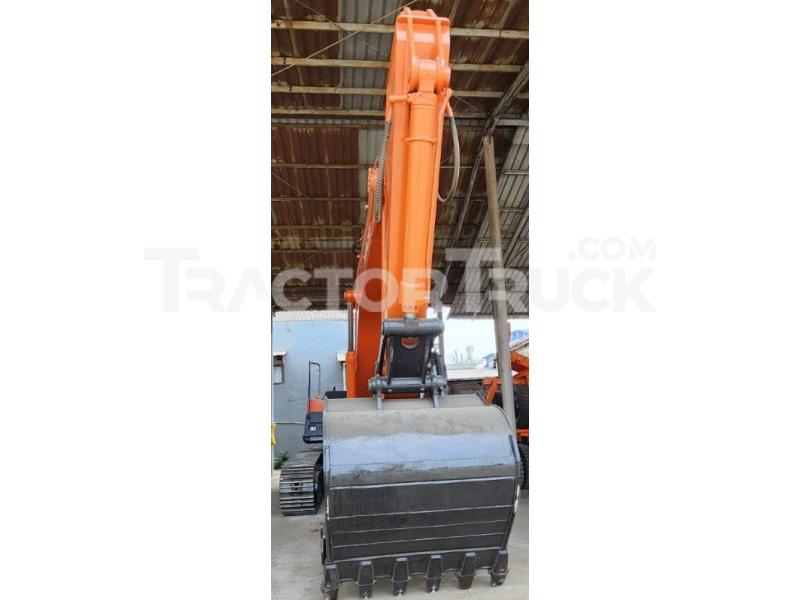

Dijual atas Excavator :
- Merek Hitachi
- Model ZX330
- Memakai Cabin
- Unit siap kerja
- Harga Rp. Juta
Rp. Call
Technical Specifications
| Shipping Length Of Unit | 11091.7 mm |
|---|---|
| Shipping Height Of Unit | 3471.7 mm |
| Max Cutting Height | 9872.5 mm |
| Max Loading Height | 6830.6 mm |
| Max Reach Along Ground | 10372.3 mm |
| Max Vertical Wall Digging Depth | 5620.5 mm |
| Max Digging Depth | 6851.9 mm |
| Boom/Stick Option (Hex) 1 | boom 6400 mm w/ stick 2660mm |
| Shipping Length Of Unit | 10972.8 mm |
| Max Cutting Height | 10232.1 mm |
| Shipping Height Of Unit | 3230.9 mm |
| Max Loading Height | 7132.3 mm |
| Max Reach Along Ground | 10902.7 mm |
| Max Vertical Wall Digging Depth | 6480 mm |
| Max Digging Depth | 7382.3 mm |
| Boom/Stick Option (Hex) 2 | boom 6400mm w/ stick 3200mm |
| Shipping Length Of Unit | 11052 mm |
| Max Cutting Height | 10622.3 mm |
| Max Loading Height | 7501.1 mm |
| Shipping Height Of Unit | 3572.3 mm |
| Max Reach Along Ground | 11683 mm |
| Max Vertical Wall Digging Depth | 7370.1 mm |
| Max Digging Depth | 8180.8 mm |
| Boom/Stick Option (Hex) 3 | boom 6400mm w/ stick 4000mm |
| Ground Clearance | 502.9 mm |
| Height To Top Of Cab | 3121.2 mm |
| Width To Outside Of Tracks | 3191.3 mm |
| Length Of Track On Ground | 3730.8 mm |
| Tail Swing Radius | 3322.3 mm |
| Removal Counterweight Clearance | 1143 mm |
| Track Gauge | 2590.8 mm |
| Shoe Size | 600.2 mm |
| Number Of Track Rollers Per Side | 8 |
| Number Of Carrier Rollers Per Side | 2 |
| Max Travel Speed | 5.5 km/h |
| Ground Pressure | 63 kPa |
| Number Of Shoes Per Side | 45 |
| Number Of Cylinders | 6 |
| Engine Make | 2353 |
| Engine Model | AA-6HK1X |
| Net Power | 184.2 kw |
| Power Measured @ | 2000 rpm |
| Max Torque | 873 Nm |
| Displacement | 7.8 L |
| Aspiration | turbocharged intercooled |
| Torque Measured @ | 1700 rpm |
| Operating Weight | 33339 kg |
| Fuel Capacity | 560.2 L |
| Cooling System Fluid Capacity | 35.2 L |
| Hydraulic System Fluid Capacity | 320.2 L |
| Operating Voltage | 24 V |
| Engine Oil Capacity | 36.3 L |
| Swing Drive Fluid Capacity | 16.7 L |
| Alternator Supplied Amperage | 50 amps |
| Hydraulic System Relief Valve Pressure | 34818.5 kPa |
| Hydraulic Pump Flow Capacity | 580.3 L/min |
| Swing Speed | 11.8 rpm |
| Reference Bucket Capacity | 1.5 m3 |
| Minimum Bucket Capacity | 0.9 m3 |
| Maximum Bucket Capacity | 1.7 m3 |
