| Kondisi | Used |
|---|---|
| Lokasi | BANTEN |

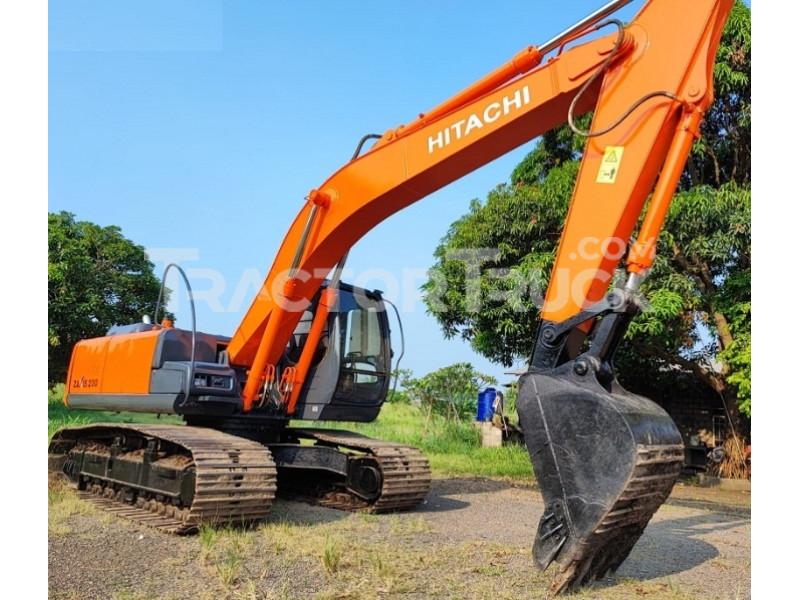

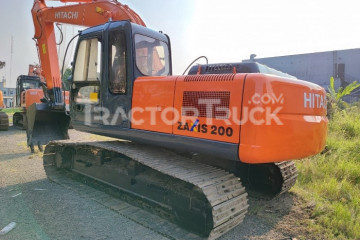

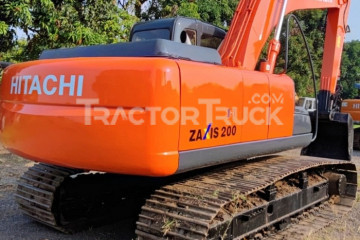

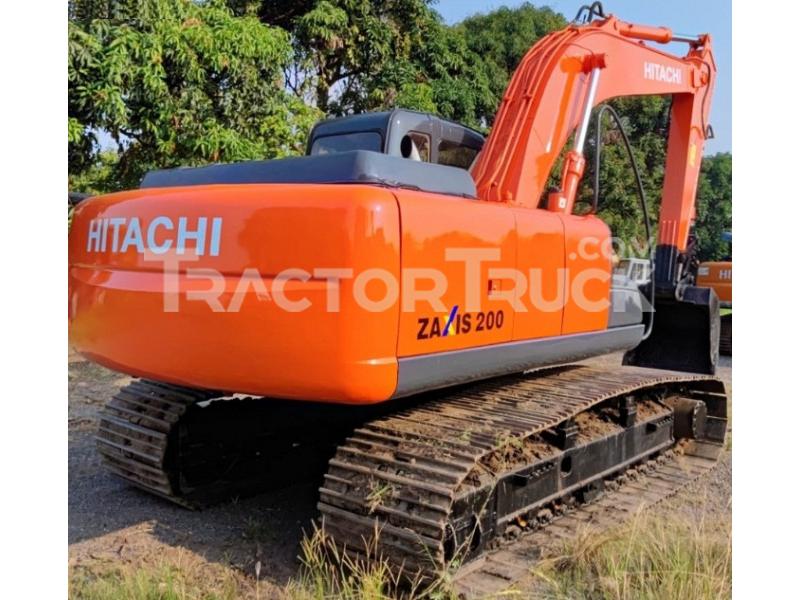

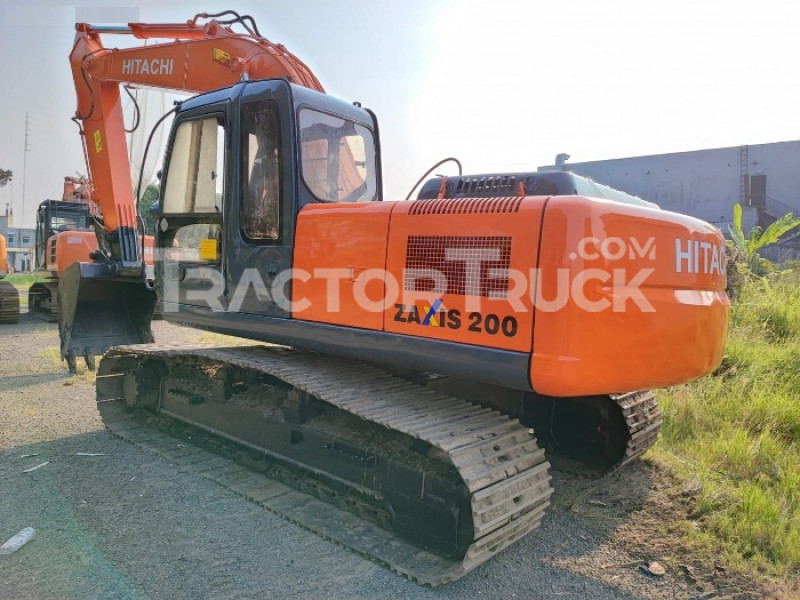

Dijual atas Excavator :
- Merek Hitachi
- Model ZX200
- Tahun 2012
- Unit siap kerja
- Harga Rp. 495 Juta
Rp. 495 Jt
Technical Specifications
| Shipping Length Of Unit | 9622.5 mm |
|---|---|
| Shipping Height Of Unit | 3130.3 mm |
| Max Cutting Height | 9171.4 mm |
| Max Loading Height | 6391.7 mm |
| Max Reach Along Ground | 9080 mm |
| Max Vertical Wall Digging Depth | 5142 mm |
| Max Digging Depth | 5980.2 mm |
| Boom/Stick Option (Hex) 1 | boom 5680mm w/ stick 2220mm |
| Shipping Length Of Unit | 9500.6 mm |
| Max Cutting Height | 9601.2 mm |
| Shipping Height Of Unit | 2971.8 mm |
| Max Loading Height | 6781.8 mm |
| Max Reach Along Ground | 9750.6 mm |
| Max Vertical Wall Digging Depth | 6050.3 mm |
| Max Digging Depth | 6672.1 mm |
| Boom/Stick Option (Hex) 2 | boom 5680mm w/ stick 2910mm |
| Shipping Length Of Unit | 9461 mm |
| Max Cutting Height | 10223 mm |
| Max Loading Height | 7412.7 mm |
| Shipping Height Of Unit | 3550.9 mm |
| Max Reach Along Ground | 11100.8 mm |
| Max Vertical Wall Digging Depth | 7540.8 mm |
| Max Digging Depth | 8162.5 mm |
| Boom/Stick Option (Hex) 3 | boom 5680mm w/ stick 4410mm |
| Ground Clearance | 451.1 mm |
| Height To Top Of Cab | 2950.5 mm |
| Width To Outside Of Tracks | 2801.1 mm |
| Length Of Track On Ground | 3371.1 mm |
| Tail Swing Radius | 2752.3 mm |
| Removal Counterweight Clearance | 1030.2 mm |
| Track Gauge | 2200.7 mm |
| Shoe Size | 600.2 mm |
| Number Of Track Rollers Per Side | 7 |
| Number Of Carrier Rollers Per Side | 2 |
| Max Travel Speed | 5.5 km/h |
| Ground Pressure | 43 kPa |
| Number Of Shoes Per Side | 46 |
| Number Of Cylinders | 6 |
| Engine Make | 2353 |
| Engine Model | AA-6BGIT |
| Net Power | 109.6 kw |
| Power Measured @ | 2100 rpm |
| Max Torque | 550.1 Nm |
| Displacement | 6.5 L |
| Aspiration | turbocharged intercooled |
| Torque Measured @ | 1600 rpm |
| Operating Weight | 19400 kg |
| Fuel Capacity | 360.4 L |
| Cooling System Fluid Capacity | 23.1 L |
| Hydraulic System Fluid Capacity | 200.2 L |
| Operating Voltage | 24 V |
| Engine Oil Capacity | 25.4 L |
| Swing Drive Fluid Capacity | 6.4 L |
| Alternator Supplied Amperage | 50 amps |
| Hydraulic System Relief Valve Pressure | 34335.9 kPa |
| Hydraulic Pump Flow Capacity | 388 L/min |
| Swing Speed | 13.3 rpm |
| Reference Bucket Capacity | 0.8 m3 |
| Minimum Bucket Capacity | 0.5 m3 |
| Maximum Bucket Capacity | 0.9 m3 |
