| Kondisi | Used |
|---|---|
| Lokasi | BANTEN |

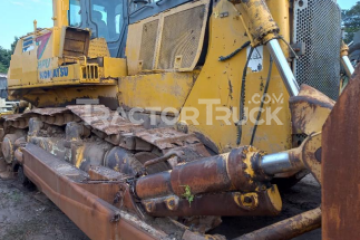

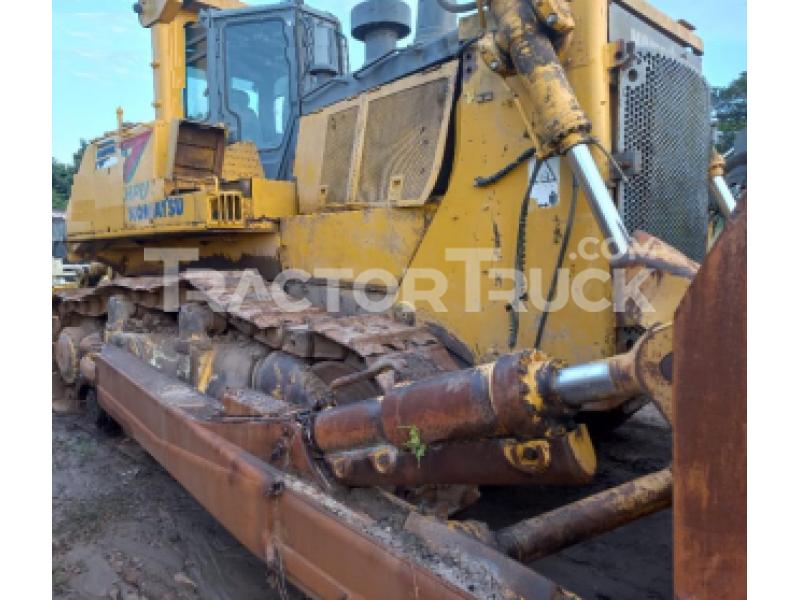

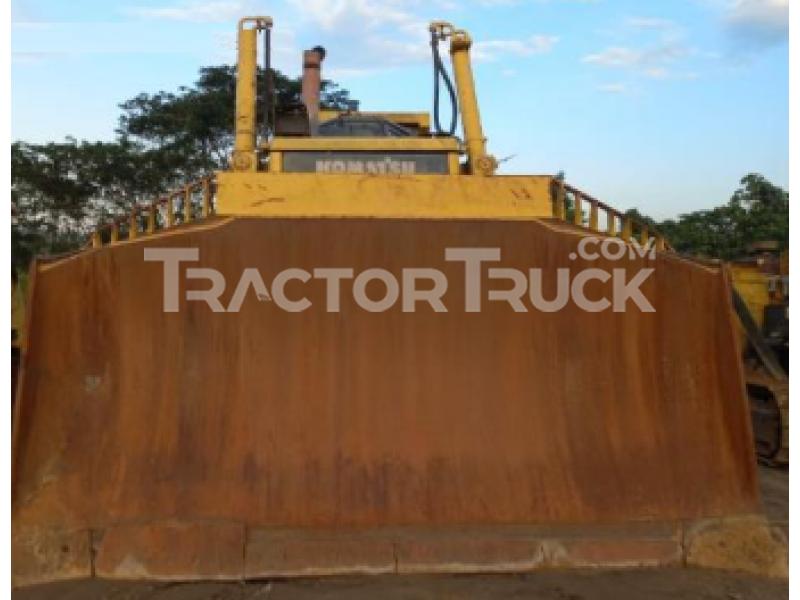

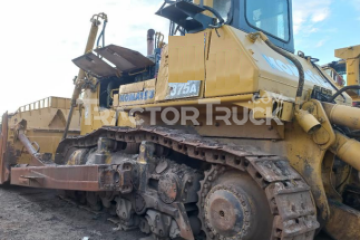

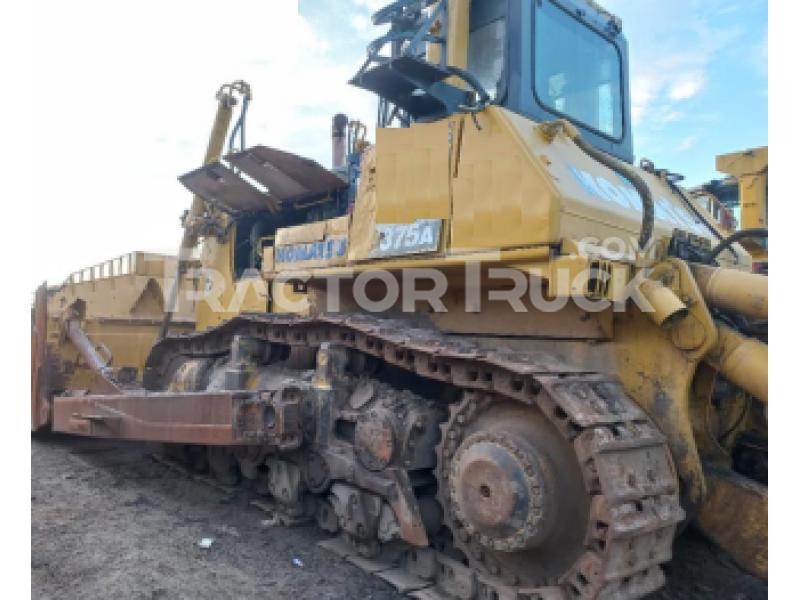

Dijual atas Bulldozer :
- Merek Komatsu
- Model D375A-6
- Pembutan tahun 2011
- RFU Condition
- Harga Rp. 3,85 Milyar
Rp. 3,85 M
Technical Specifications
| Height To Top Of Cab | 4285.5 mm |
|---|---|
| Length Of Track On Ground | 3980.7 mm |
| Ground Clearance | 612.6 mm |
| Track Gauge | 2502.4 mm |
| Length | 10485.1 mm |
| Number Of Shoes (Each Side) | 41 |
| Number Of Shoes Per Side | 41 |
| Number Of Track Rollers Per Side | 8 |
| Shoe Size | 610.1 mm |
| Suspension | Oscillating equaliser bar and pivot shaft |
| Track Rollerframe | Cylinder high-tensile-strength steel construction |
| Ground Contact Area | 4.9 m2 |
| Ground Pressure | 107.6 kPa |
| Grouser Height | 90.2 mm |
| Number Of Carrier Rollers Per Side | 2 |
| Minimum Turning Radius | 4206.2 mm |
| Horsepower | Gross-Sae J1995 635.7 |
| Horsepower | Net-Iso 9249 610.2 |
| Horsepower | Net-Sae J1349 610.2 |
| Fan Drive Method | Hydraulic |
| Lubrication Method | Gear pump force lubrication |
| Filter | Full flow |
| Number Of Cylinders | 6 |
| Engine Make | 2238 |
| Engine Model | SAA6D170E-5 |
| Governor | All-speed and mid-range electronic |
| Power Measured @ | 1800 rpm |
| Displacement | 23.2 L |
| Aspiration | Turbochanged |
| Bore | 170.2 mm |
| Stroke | 170.2 mm |
| Maximum Speeds Fwd | 11.9 km/h |
| Maximum Speeds Rev | 15.9 km/h |
| Transmission | Torqflow |
| Number Of Speeds - Forward | 3 |
| Number Of Speeds - Reverse | 3 |
| Transmission | Bevel Gear And Steering System |
| Fuel Tank | 1200.4 L |
| Final Drive | 65.1 L |
| Engine Oil | 86.3 L |
| Coolant | 120.4 L |
| Blade Capacity | 18.5 m3 |
| Blade Type | Semi-U |
| Blade Length | 4696.5 mm |
| Blade Height | 2265.7 mm |
| Blade Cut Depth | 736.6 mm |
| Ripper Type | Adjust |
| Ripper Depth | 1140.5 mm |
| Transmission Type | Torqflow |
| Operating Weight | 71640 kg |
| Ripper Weight | 6800 kg |
| Blade Weight | 10920 kg |
| Hydraulic System Type | Closed-center Load Sensing System (CLSS) |
