| Kondisi | Used |
|---|---|
| Kapasitas | 16 Ton |
| Lokasi | DKI JAKARTA |

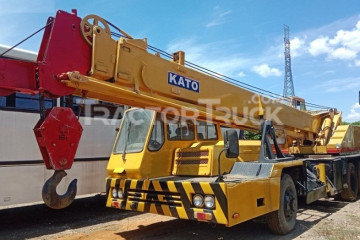

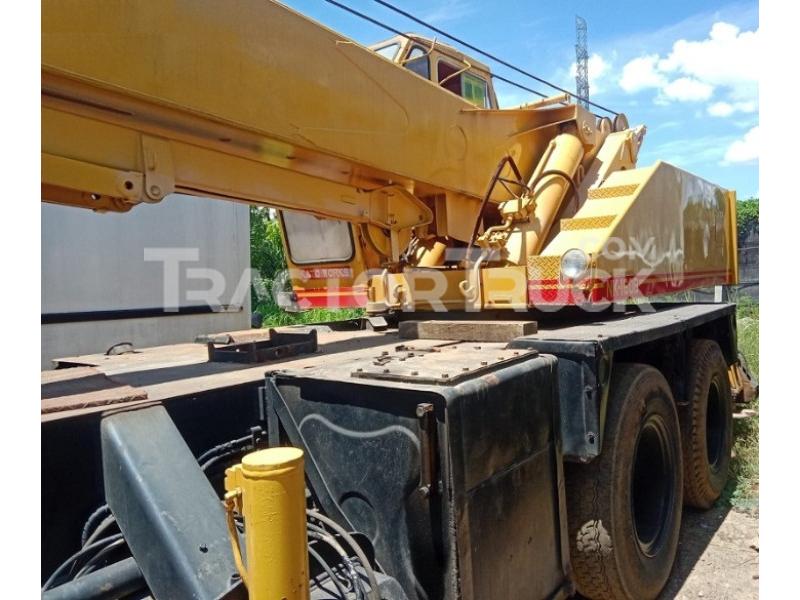

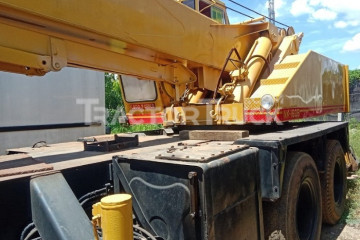

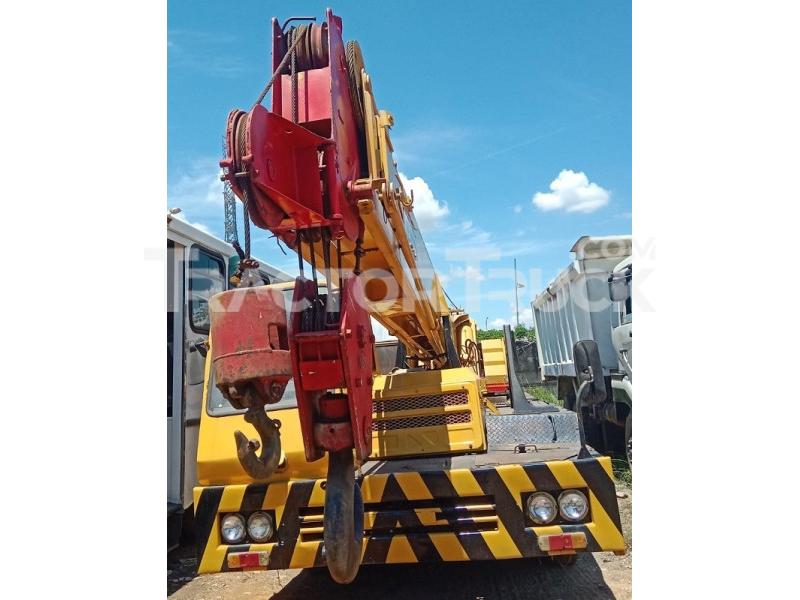

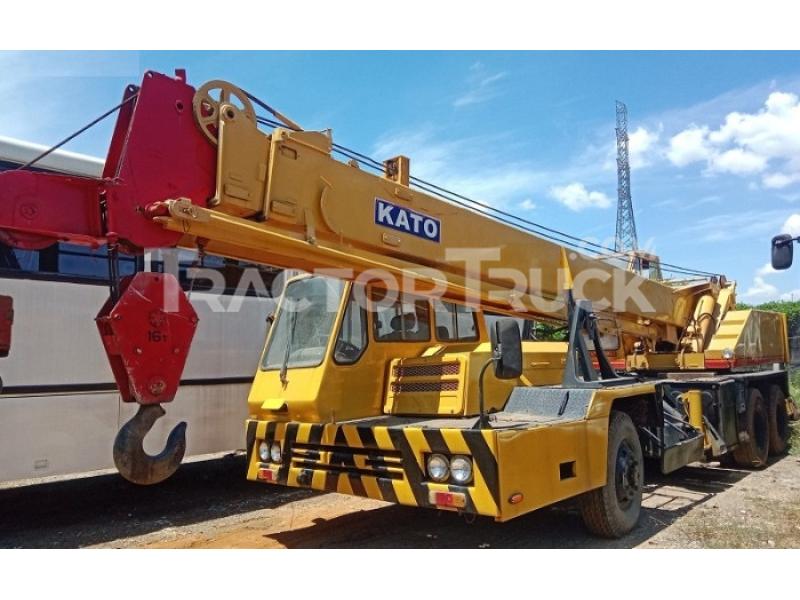

Dijual atas Mobile Crane :
- Merek Kato
- Model NK160
- Kapasitas 16 Ton
- Unit siap kerja
- Harga Rp. 750 Juta
Rp. 750 Jt
Technical Specifications
| Min Height @ Max Raise Angle | 9500.6 mm |
|---|---|
| Max Height @ Max Raise Angle - No Jib | 23500.1 mm |
| Max Elevating Angle | 80 degrees |
| Number Of Sections | 3 |
| Swing Speed | 3.1 rpm |
| Transport Length | 11582.4 mm |
| Transport Width | 2502.4 mm |
| Transport Height | 3450.3 mm |
| Width W/ Outriggers Extended | 4800.6 mm |
| Upper Structure Tail Swing Radius | 2807.2 mm |
| Make | Kato |
| Model | 6DC20A |
| Gross Power | 147.1 kw |
| Power Measured @ | 2500 rpm |
| Operating Weight | 20300 kg |
| Tire Size | 11.00-20-14PR |
| Transmission Type | Synchromesh |
| Max Speed - Forward | 70 km/h |
