| Kondisi | Used |
|---|---|
| Lokasi | DKI JAKARTA |

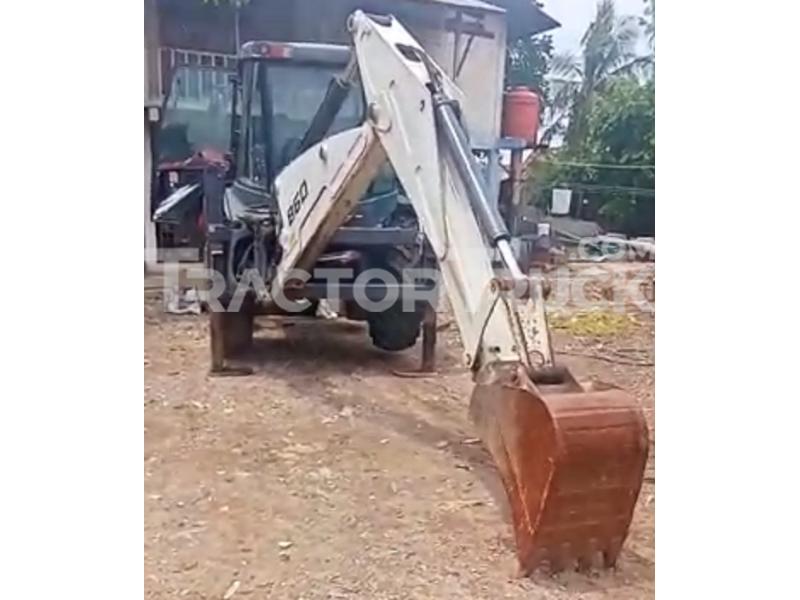

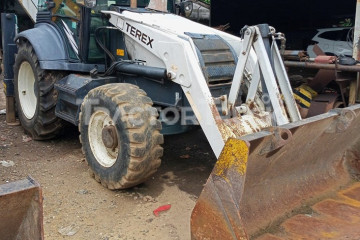

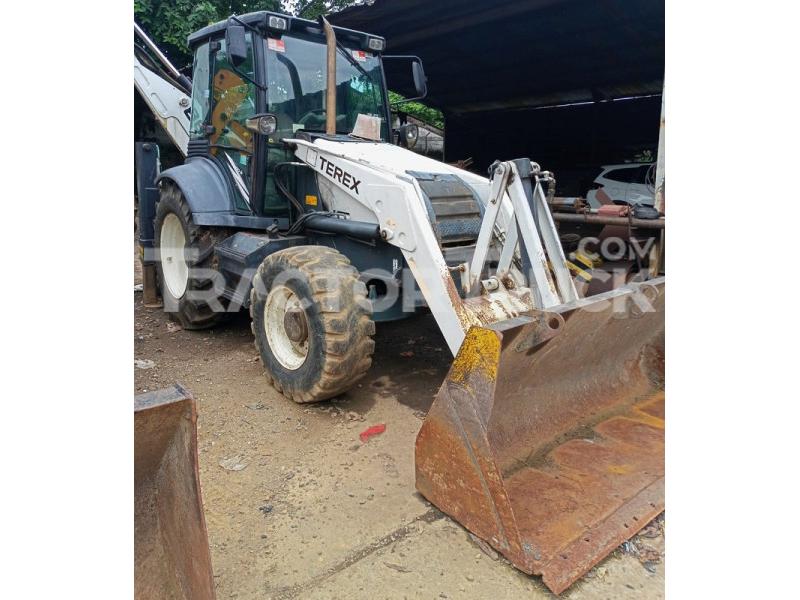

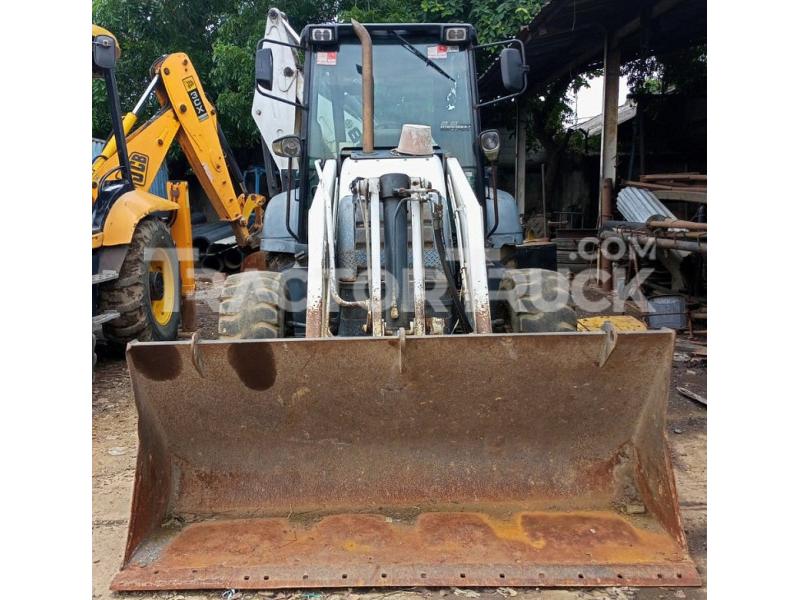

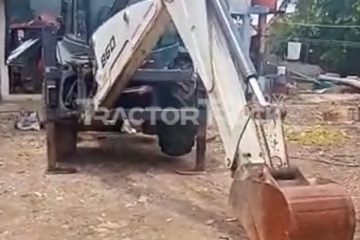

Dijual atas Backhoe Loader :
- Merek Terex
- Model 860
- Tahun 2009
- Unit siap kerja
- Harga Rp. 325 Juta
Rp. 325 Jt
Technical Specifications
| Load Height - Std | 3587.5 mm |
|---|---|
| Reach From Swivel - Std | 5727.2 mm |
| Dig Depth - Std | 4440.9 mm |
| Reach At Load Height - Std | 1996.4 mm |
| Bucket Dig Force - Std | 5260 kg |
| Bucket Dig Force - Ext | 5260 kg |
| Reach From Swivel - Ext | 7019.5 mm |
| Dig Depth - Ext | 5782.1 mm |
| Reach At Load Height - Ext | 2926.1 mm |
| Load Height - Ext | 4565.9 mm |
| Transport Length | 7339.6 mm |
| Transport Width | 2313.4 mm |
| Transport Height | 3764.3 mm |
| Wheelbase | 2130.6 mm |
| Ground Clearance | 454.2 mm |
| Height To Top Of Suspended Cab | 2770.6 mm |
| Clearance At Max Dump Height | 2664 mm |
| Reach At Max Dump Height | 646.2 mm |
| Dig Depth | 123.2 mm |
| Lift Capacity At Full Height | 3983.9 kg |
| Bucket Capacity | 1.2 m3 |
| Bucket Width | 2387.1 mm |
| Bucket Breakout Force | 5575.1 kg |
| Number Of Cylinders | 4 |
| Engine Make | 2351 |
| Engine Model | 1104C-44T |
| Net Power | 70.1 kw |
| Gross Power | 74.6 kw |
| Power Measured @ | 2200 rpm |
| Torque Measured @ | 1400 rpm |
| Net Max Torque | 413.5 Nm |
| Displacement | 4.4 L |
| Operating Weight 4wd | 7370 kg |
| Fuel Capacity | 130.2 L |
| Max Weight | 7514.2 kg |
| Hydraulic System Fluid Capacity | 143.1 L |
| Oil System Fluid Capacity | 8.7 L |
| Cooling System Fluid Capacity | 16.3 L |
| Transmission Fluid Capacity | 23.1 L |
| Front Axle Fluid Capacity | 12.9 L |
| Rear Axle Fluid Capacity | 17.8 L |
| Turning Radius | 3962.4 mm |
| Tire Size Front - 2wd / 4wd | 16/70x20 |
| Rear Tires Size 2wd/4wd | 18.4x26 |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 75 amps |
| Transmission Type | full powershift |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 4 |
| Max Speed - Forward | 41 km/h |
| Max Speed Reverse | 41.2 km/h |
| Pump Type | twin gear |
| Pump Flow Capacity | 160.1 L/min |
| Relief Valve Pressure | 22408 kPa |
