| Kondisi | Used |
|---|---|
| Lokasi | DKI JAKARTA |

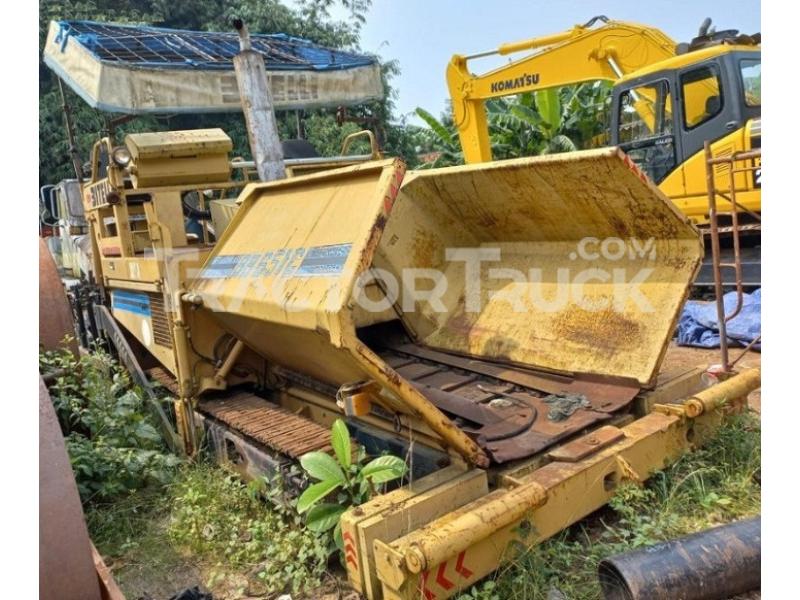

Dijual atas Unit Asphalt Finisher :
- Merek Bitelli
- Model BB651C
- Lebar Bentangan 4,5 meter
- Memakai Track Besi
- Unit akan disiapkan
- Harga Rp. 500 Juta
Rp. 500 Jt
Technical Specifications
| Length W/ Screed | 5462 mm |
|---|---|
| Transport Width | 2502.4 mm |
| Transport Height | 3550.9 mm |
| Transport Height - Muffler Removed | 2499.4 mm |
| Transport Width - Hoppers Raised - With End Gates With Extend-A-Mat B Screed | 2499.4 mm |
| Length - With Push Roller And Extend-A-Mat B Screed | 5459 mm |
| Width W/ Hopper Open | 3121.2 mm |
| Overall Height | 3550.9 mm |
| Track Contact Length | 2340.9 mm |
| Engine Make | 2349 |
| Engine Model | F5L 912 |
| Gross Power | 70.1 kw |
| Engine Model | Deutz F5L 914 |
| Operating Weight W/O Screed | 10310 kg |
| Operating Weight W/ Screed | 14500 kg |
| Fuel Capacity | 140.1 L |
| Hydraulic System Fluid Capacity | 155.2 L |
| Hopper Capacity | 3.1 kg |
| Paving Width - Std | 2529.8 mm |
| Paving Width - Max | 6004.6 mm |
| Paving Speed - Max | 52 m/min |
| Travel Speed - Max | 11.1 km/h |
| Tractor Weight | 10310 kg |
| Operating Weight - With Extend-A-Mat 8-16b Screed | 14500 kg |
| Operating Weight - With Screed | 14500 kg |
| Paving Width Minimum | 2499.4 mm |
| Paving Width Maximum | 6004.6 mm |
| Cooling System | 30.3 L |
| Fuel Tank Capacity | 140.1 L |
| Hydraulic Oil Tank | 155.2 L |
| Maximum Paving Speed | 104.99 ft/min |
| Maximum Travel Speed | 4.5 km/h |
| Hopper Capacity | 370.8 ft |
