| Kondisi | Used |
|---|---|
| Lokasi | BANTEN |

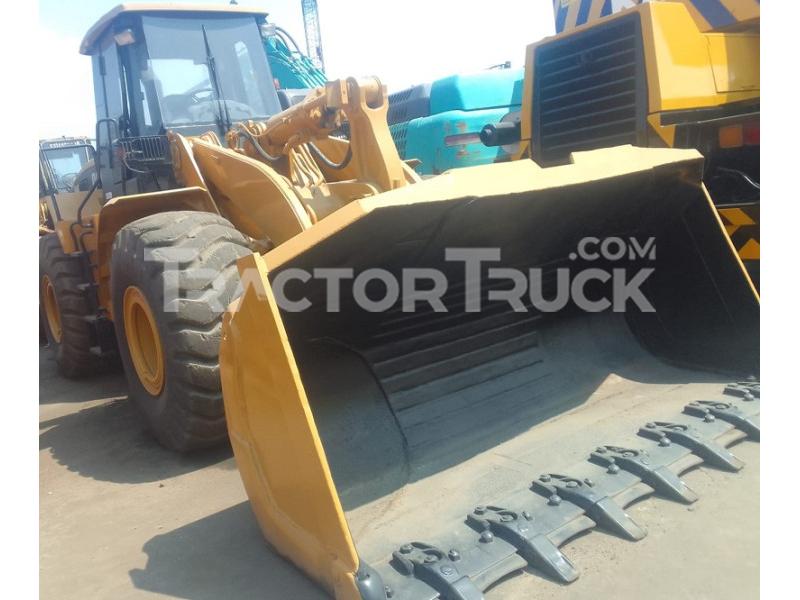

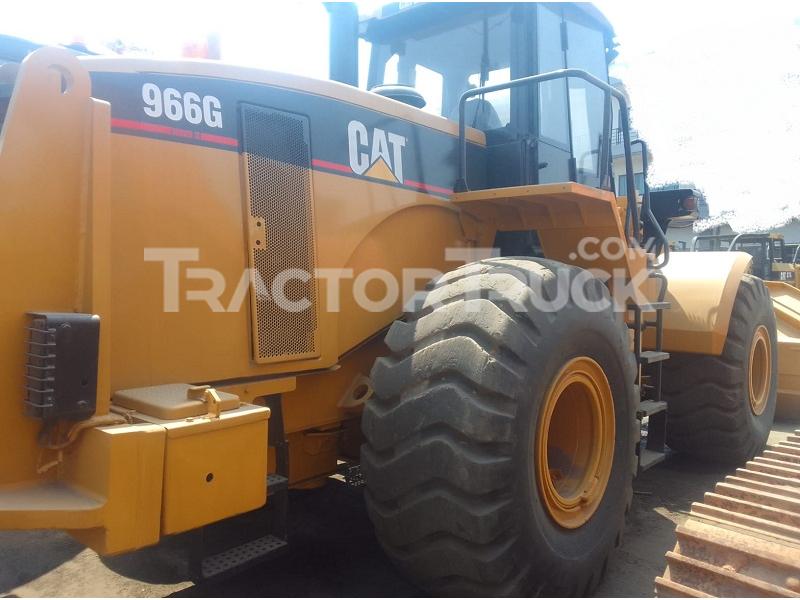

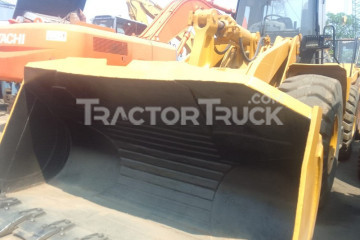

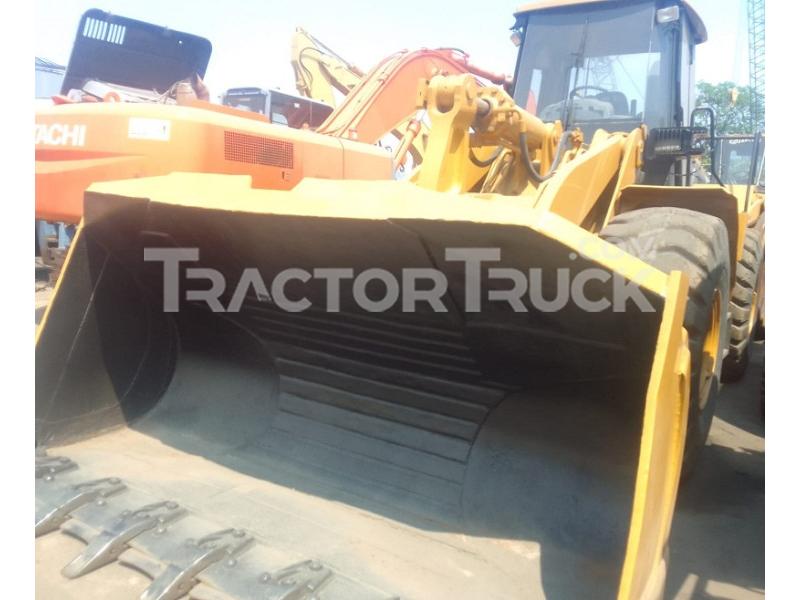

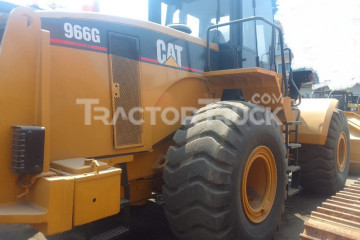

Dijual atas Wheel Loader :
- Merek Caterpillar
- Model 966G
- Ex Import & Built Up
- Masuk Indonesia tahun 2019
- Memakai Cabin dan Bucket
- Harga Rp. 1,1 Milyar
Rp. 1,1 M
Technical Specifications
| Dump Clearance At Max Raise | 3100 mm |
|---|---|
| Breakout Force | 44120 |
| Bucket Capacity - Heaped | 3.3 m3 |
| Bucket Width | 3060 mm |
| Ground Clearance | 430 mm |
| Length With Bucket On Ground | 8825 mm |
| Width Over Tires | 2960 mm |
| Height To Top Of Cab | 3590 mm |
| Reach At Max Lift And Dump | 1305 mm |
| Number Of Cylinders | 6 |
| Engine Make | 2236 |
| Engine Model | 3306DITA |
| Net Power | 188.7 kw |
| Gross Power | 175.3 kw |
| Power Measured @ | 2200 rpm |
| Displacement | 10.5 L |
| Engine Model | Cat? 3306 DITA |
| Flywheel Power | 175.3 kw |
| Maximum Flywheel Power | 188.7 kw |
| Operating Weight | 22750 kg |
| Fuel Capacity | 410 L |
| Hydraulic System Fluid Capacity | 207 L |
| Static Tipping Weight | 15754 kg |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 4 |
| Max Speed - Forward | 37.3 km/h |
| Max Speed - Reverse | 42.3 km/h |
| Travel Speed | 37.2 km/h |
| Forward - 1 | 7.2 km/h |
| Forward - 2 | 12.7 km/h |
| Forward - 3 | 21.7 km/h |
| Forward - 4 | 37.4 km/h |
| Reverse - 1 | 8.3 km/h |
| Reverse - 2 | 14.4 km/h |
| Reverse - 3 | 24.7 km/h |
| Reverse - 4 | 42.3 km/h |
| Operating Weight | 22865.6 kg |
| Maximum Bucket Capacity | 4.1 m3 |
| Raise Time | 6.6 sec |
| Dump Time | 1.3 sec |
| Lower Time | 1.8 sec |
| Front | Fixed |
| Rear | Trunnion |
| Maximum Single-Wheel Rise And Fall | 502 mm |
| Hydraulic Cycle Time - Total | 9.7 s |
| Hydraulic Cycle Time - Lower | 1.8 s |
| Hydraulic Cycle Time - Raise | 6.6 s |
| Hydraulic Cycle Time - Dump | 1.3 s |
| Static Tipping Load - Full Turn | 14002.4 kg |
| Dump Clearance | 3.1 m |
| Breakout Force | 20012.5 kg |
| Cooling System | 80 L |
| Crankcase | 28.1 L |
| Hydraulic Tank | 140 L |
| Hydraulic System - Including Tank | 207 L |
| Fuel Tank - Standard | 410 L |
| Transmission | 50.1 L |
| Differential - Final Drives - Front | 64.1 L |
| Differential - Final Drives - Rear | 64.1 L |
