| Kondisi | Used |
|---|---|
| Lokasi | BANTEN |

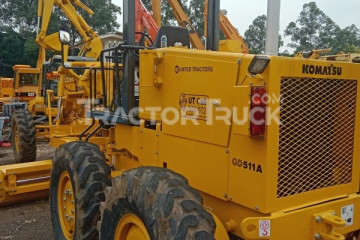

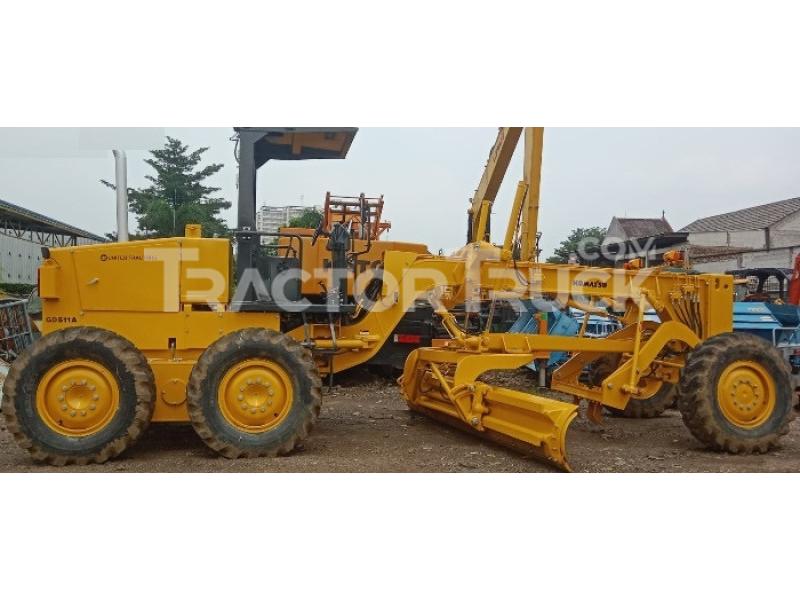

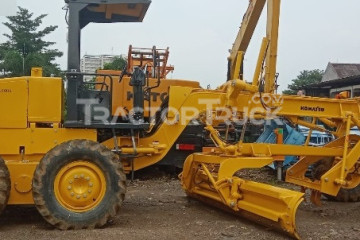

Dijual atas Motor Grader :
- Merek Komatsu
- Model GD511A-1
- Kondisi siap pakai
- Harga To Be Advice
Rp. Call
Technical Specifications
| Overall Length | 7897.4 mm |
|---|---|
| Width Over Tires | 2395.7 mm |
| Wheelbase | 5782.1 mm |
| Rear Ground Clearance | 365.8 mm |
| Tandem Axle Wheelbase | 1536.2 mm |
| Blade Base | 2542 mm |
| Height To Top Of Isomount Cab | 3486.9 mm |
| Number Of Cylinders | 6 |
| Engine Make | 2238 |
| Engine Model | S6D95L |
| Power Measured @ | 2900 rpm |
| Net Power Gear 5-6 | 101 kw |
| Max Power | 101 kw |
| Displacement | 4.9 L |
| Std Operation Weight - Total | 10800 kg |
| Fuel Capacity | 227.1 L |
| Tire Size | 13.00-24-8PR |
| Articulation Angle | 27 degrees |
| Turning Radius | 6614.2 mm |
| Number Of Gears - Forward | 6 |
| Max Speed - Forward | 44.6 km/h |
| Max Speed - Reverse | 54.6 km/h |
| Ground Clearance | 365.8 mm |
| Moldboard Width | 3718.6 mm |
| Moldboard Height | 645.2 mm |
