| Kondisi | Used |
|---|---|
| Lokasi | JAWA BARAT |

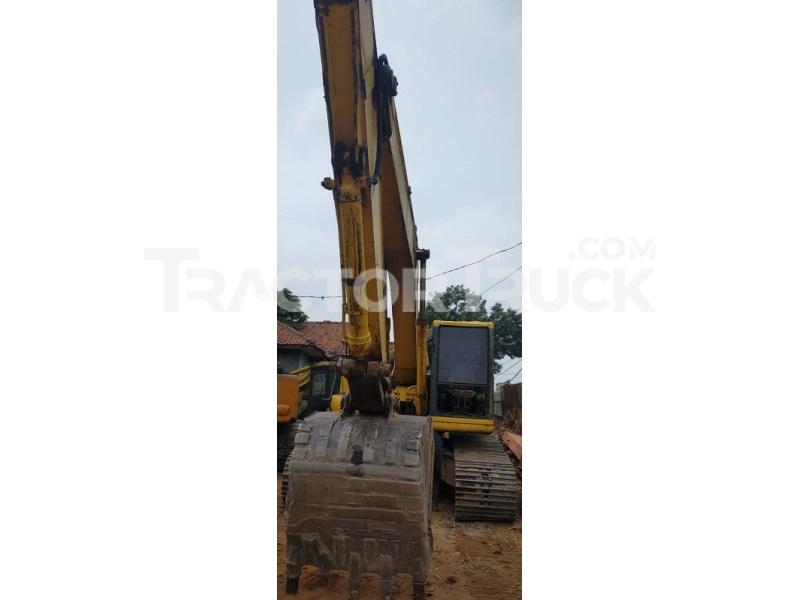

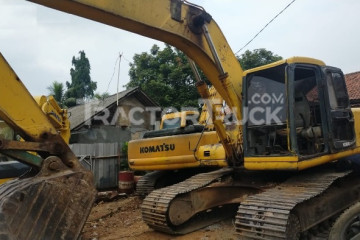

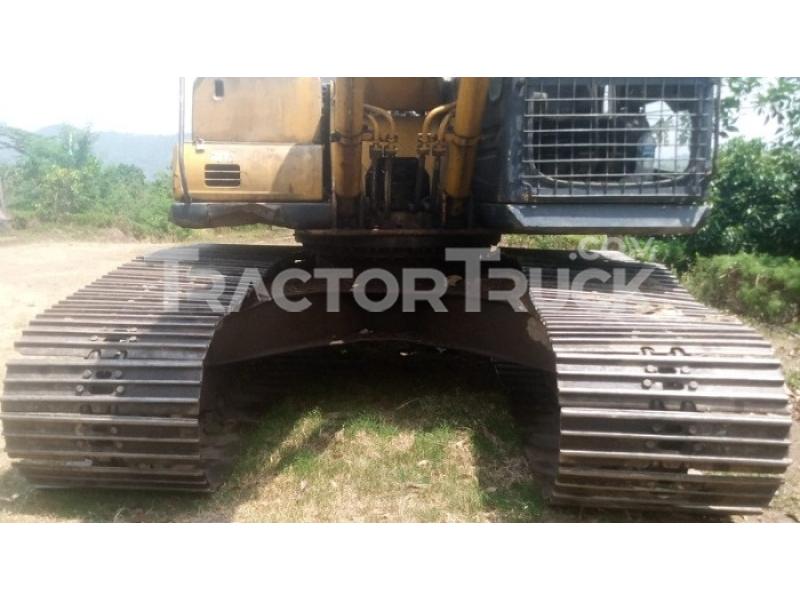

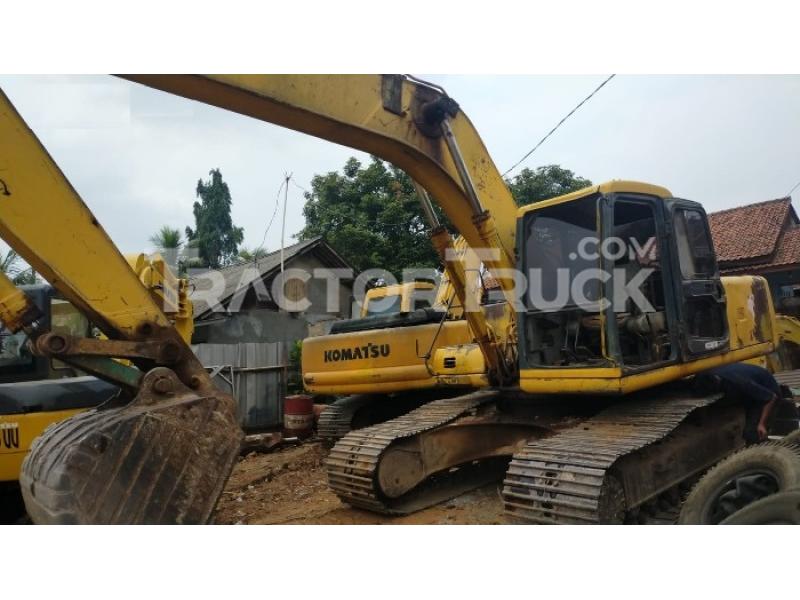

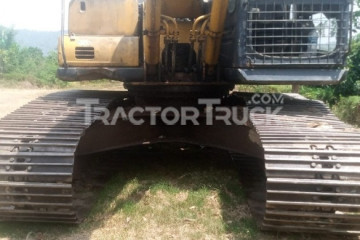

Dijual atas Unit Excavator :
- Merek Komatsu
- Model PC200-6
- Tahun 2001
- Harga Rp. 350 Juta
Rp. 350 Jt
Technical Specifications
| Shipping Length Of Unit | 9512.8 mm |
|---|---|
| Shipping Height Of Unit | 2987 mm |
| Max Cutting Height | 8897.1 mm |
| Max Loading Height | 6065.5 mm |
| Max Reach Along Ground | 8720.3 mm |
| Max Vertical Wall Digging Depth | 4965.2 mm |
| Max Digging Depth | 5535.2 mm |
| Boom/Stick Option (Hex) 1 | Boom 18'8" (5700mm)/Stick 6'0" (1840mm) |
| Shipping Length Of Unit | 9485.4 mm |
| Max Cutting Height | 9052.6 mm |
| Shipping Height Of Unit | 3173 mm |
| Max Loading Height | 6257.5 mm |
| Max Reach Along Ground | 9208 mm |
| Max Vertical Wall Digging Depth | 5315.7 mm |
| Max Digging Depth | 6096 mm |
| Boom/Stick Option (Hex) 2 | Boom 18'8" (5700mm)/Stick 7'11" (2410mm) |
| Shipping Length Of Unit | 9427.5 mm |
| Max Cutting Height | 9305.5 mm |
| Max Loading Height | 6477 mm |
| Shipping Height Of Unit | 2971.8 mm |
| Max Reach Along Ground | 9701.8 mm |
| Max Vertical Wall Digging Depth | 5980.2 mm |
| Max Digging Depth | 6620.3 mm |
| Boom/Stick Option (Hex) 3 | Boom 18'8" (5700mm)/Stick 9'7" (2930mm) |
| Shipping Length Of Unit | 9427.5 mm |
| Shipping Height Of Unit | 3173 mm |
| Max Cutting Height | 9701.8 mm |
| Max Loading Height | 6970.8 mm |
| Max Reach Along Ground | 10881.4 mm |
| Max Digging Depth | 7726.7 mm |
| Max Vertical Wall Dig Depth | 7077.5 mm |
| Boom/Stick Option (Hex) 4 | Boom 18'8" (5700mm) / Stick 13'4" (4060mm) |
| Ground Clearance | 442 mm |
| Height To Top Of Cab | 2907.8 mm |
| Width To Outside Of Tracks | 2801.1 mm |
| Length Of Track On Ground | 3270.5 mm |
| Tail Swing Radius | 2752.3 mm |
| Removal Counterweight Clearance | 1085.1 mm |
| Track Gauge | 2200.7 mm |
| Shoe Size | 600.2 mm |
| Ground Pressure | 44.1 kPa |
| Max Travel Speed | 5.5 km/h |
| Number Of Cylinders | 6 |
| Engine Make | 2238 |
| Engine Model | S6D102E |
| Gross Power | 99 kw |
| Power Measured @ | 2200 rpm |
| Displacement | 5.9 L |
| Operating Weight | 19180 kg |
| Fuel Capacity | 340.3 L |
| Hydraulic System Fluid Capacity | 166.2 L |
| Hydraulic System Relief Valve Pressure | 34818.5 kPa |
| Hydraulic Pump Flow Capacity | 412.2 L/min |
| Swing Speed | 12.4 rpm |
| Reference Bucket Capacity | 0.8 m3 |
| Minimum Bucket Capacity | 0.5 m3 |
| Maximum Bucket Capacity | 1.2 m3 |
