| Kondisi | Used |
|---|---|
| Lokasi | BANTEN |

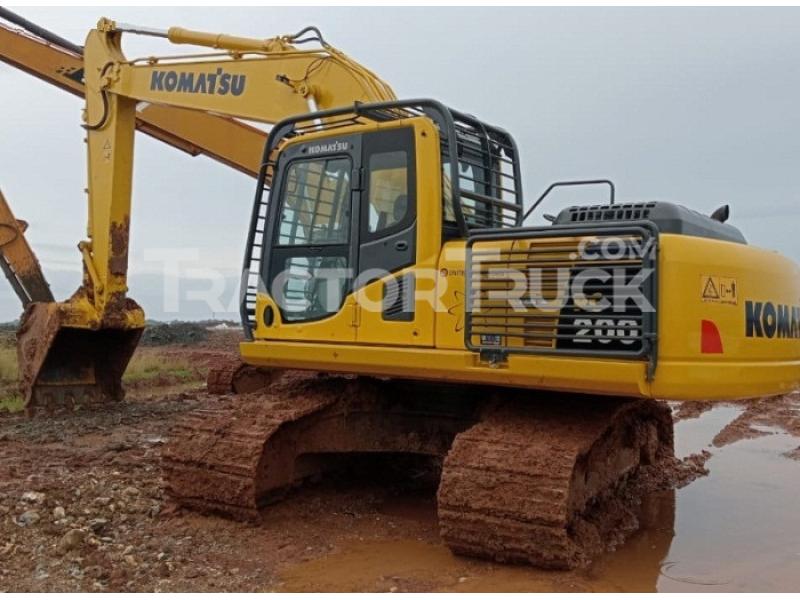

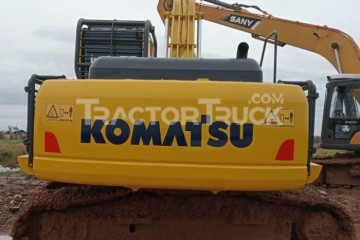

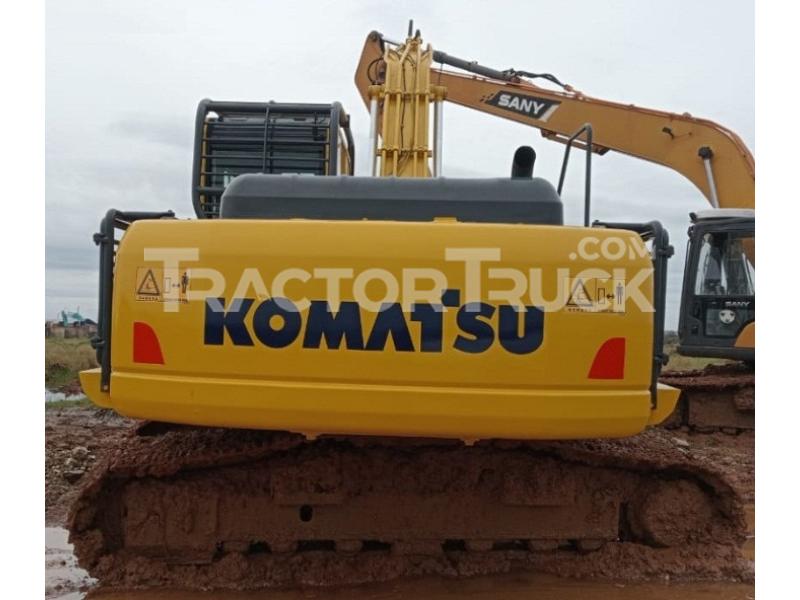

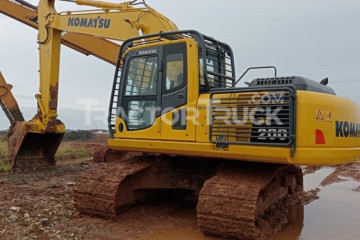

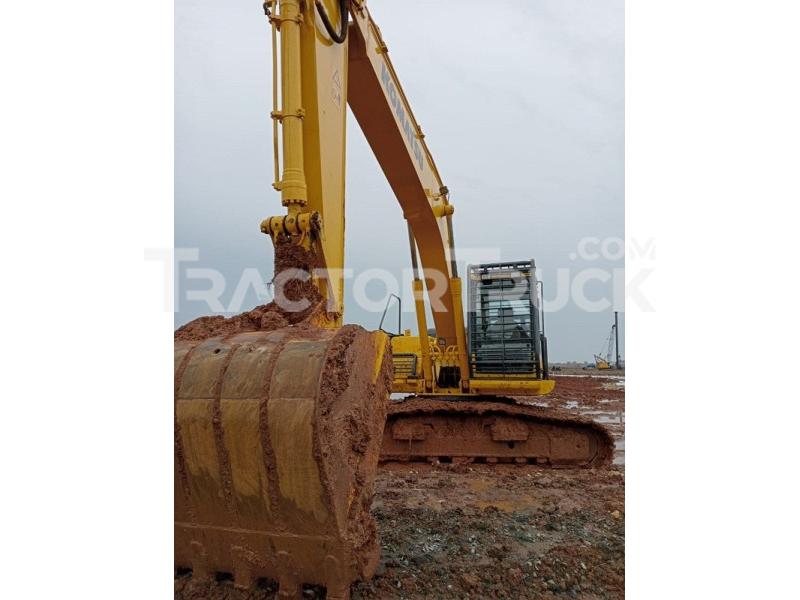

Dijual atas Excavator :
- Merek Komatsu
- Model PC200-8M0
- Tahun 2015
- Hour Meter 7000 an
- Unit siap kerja
- Harga Rp. 850 Juta
Rp. 850 Jt
Technical Specifications
| Ground Clearance | 442 mm |
|---|---|
| Tail Swing Radius | 2941.3 mm |
| Track Gauge | 2380.5 mm |
| Overall Track Width | 2980.9 mm |
| Track Length On Ground | 3462.5 mm |
| Overall Height | 3185.2 mm |
| Overall Length | 9887.7 mm |
| Shoe Size | 600.2 mm |
| Seal Of Track | Sealed track |
| Number Of Carrier Rollers Per Side | 2 |
| Number Of Shoes (Each Side) | 47 |
| Number Of Track Rollers(Each Side) | 8 |
| Centre Frame | X-Frame |
| Shoetype | triple grouser |
| Track Adjuster | Hydraulic |
| Track Frame | Box-Section |
| Horsepower | Gross-Sae J1995 173 |
| Horsepower | Net-Iso 9249 165 |
| Horsepower | Net-Sae J1349 165 |
| Fan Drive Method | Mechanical |
| Number Of Cylinders | 6 |
| Engine Model | Komatsu SAA6D107E-1 |
| Engine Type | Water-cooled 4-cycle |
| Governor | All-speed control electronic |
| Power Measured @ | 2000 rpm |
| Displacement | 6.7 L |
| Aspiration | Turbocharged aftercooled |
| Bore | 109.2 mm |
| Stroke | 124.5 mm |
| Drawbar Pull | Maximum 45349.1 |
| Gradeability | 70 % |
| Travel Speeds | 5.6 km/h |
| Swing Drive | 7.6 L |
| Fuel Tank | 400.1 L |
| Hydraulic Tank | 135.1 L |
| Final Drive | 3.8 L |
| Engine Oil | 23.5 L |
| Engine Coolant | 20.1 L |
| Boom Size | 5852.2 mm |
| Boom Type | Heavy Duty |
| Arm Size | 3048 mm |
| Swing Radius | 2956.6 mm |
| Arm Type | Heavy Duty |
| Bucket Crowd Force – Iso | 17500 kgf |
| Bucket Size – Kga Standard Gp | 1.1 m3 |
| Digging Depth – Maximum | 6949.4 mm |
| Digging Reach – Maximum | 10180.3 mm |
| Maximum Reach @ Ground Level | 10027.9 mm |
| Arm Crowd Force – Iso | 12200 kgf |
| Swing Speed | 11.7 rpm |
| Bucket Weight - Kga Gp | 935 kg |
| Quick Hitch Weight – Kga | 306 kg |
| Total Operating Weight | 24400 kg |
| Hydraulic System Type | HydrauMind System |
| Selectable Work Modes | 6 |
| Economy Sub-Mode Selections | 4 |
| Main Pump Type | Variable displacement piston |
| Maximum Flow Rate | 439.1 L/min |
