Alat Berat

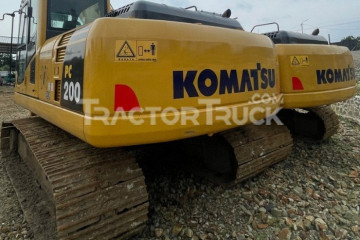

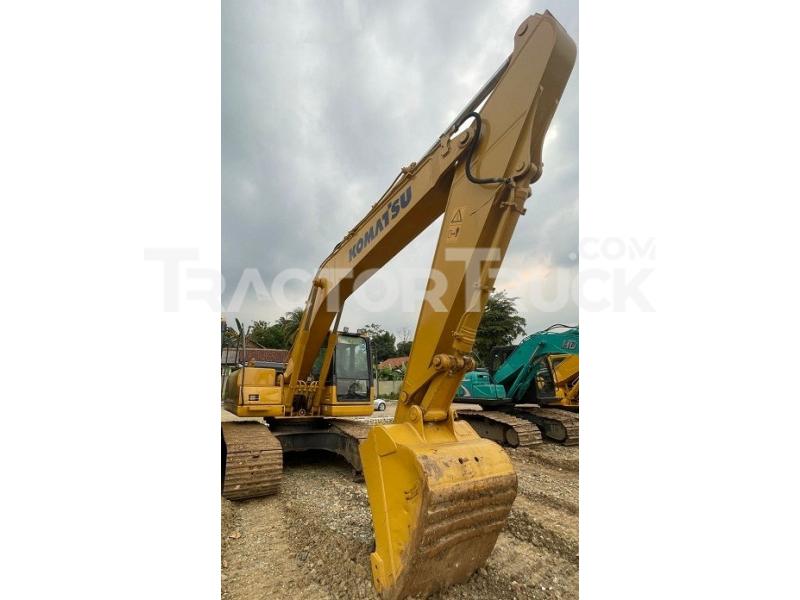

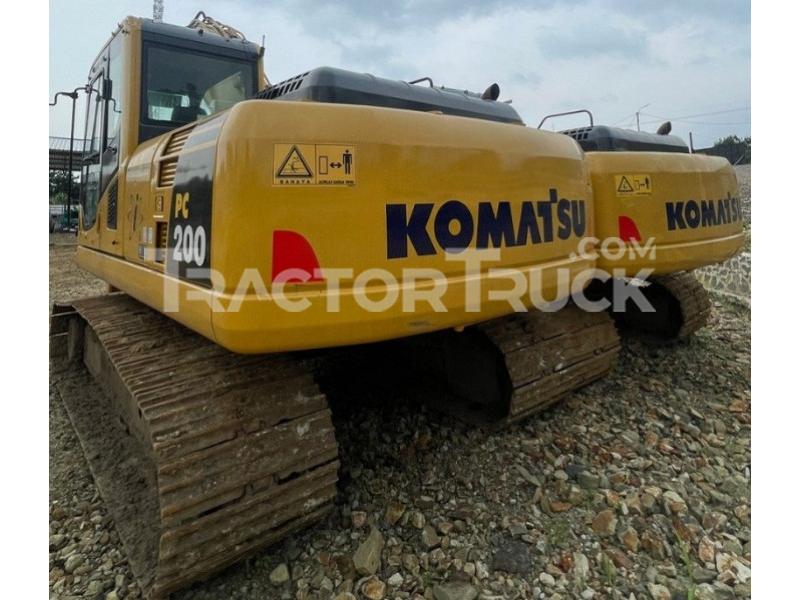

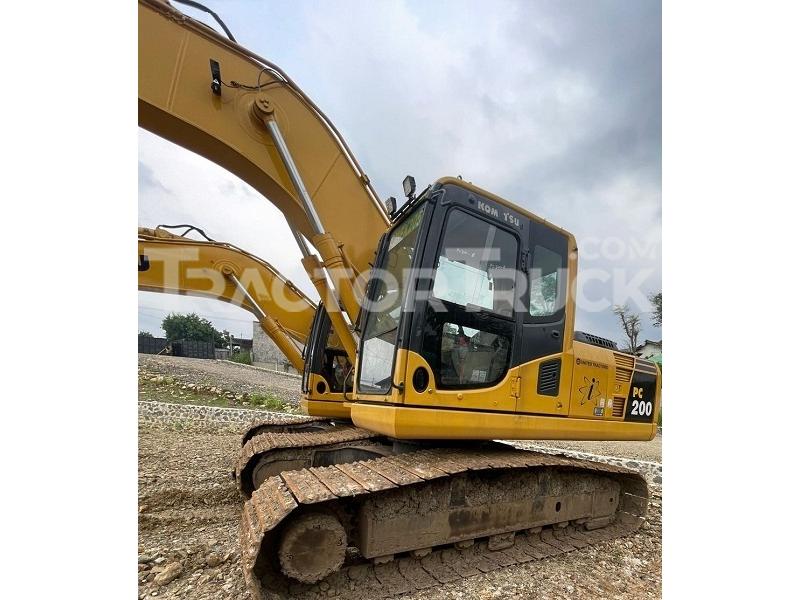

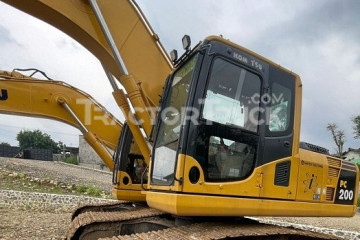

2018 Excavator Komatsu PC200-8M0

SKU: 0211230496
Last Update: 2022-11-02
Kondisi Used
Lokasi JAWA BARAT

Dijual atas Excavator :
- Merek Komatsu
- Model PC200-8M0
- Tahun 2018
- Hour Meter 7000 an
- Unit siap kerja
- Harga Rp. 975 Juta

Rp. 975 Jt
Share:

Technical Specifications

Ground Clearance 442 mm
Tail Swing Radius 2941.3 mm
Track Gauge 2380.5 mm
Overall Track Width 2980.9 mm
Track Length On Ground 3462.5 mm
Overall Height 3185.2 mm
Overall Length 9887.7 mm
Shoe Size 600.2 mm
Seal Of Track Sealed track
Number Of Carrier Rollers Per Side 2
Number Of Shoes (Each Side) 47
Number Of Track Rollers(Each Side) 8
Centre Frame X-Frame
Shoetype triple grouser
Track Adjuster Hydraulic
Track Frame Box-Section
Horsepower Gross-Sae J1995 173
Horsepower Net-Iso 9249 165
Horsepower Net-Sae J1349 165
Fan Drive Method Mechanical
Number Of Cylinders 6
Engine Model Komatsu SAA6D107E-1
Engine Type Water-cooled 4-cycle
Governor All-speed control electronic
Power Measured @ 2000 rpm
Displacement 6.7 L
Aspiration Turbocharged aftercooled
Bore 109.2 mm
Stroke 124.5 mm
Drawbar Pull Maximum 45349.1
Gradeability 70 %
Travel Speeds 5.6 km/h
Swing Drive 7.6 L
Fuel Tank 400.1 L
Hydraulic Tank 135.1 L
Final Drive 3.8 L
Engine Oil 23.5 L
Engine Coolant 20.1 L
Boom Size 5852.2 mm
Boom Type Heavy Duty
Arm Size 3048 mm
Swing Radius 2956.6 mm
Arm Type Heavy Duty
Bucket Crowd Force – Iso 17500 kgf
Bucket Size – Kga Standard Gp 1.1 m3
Digging Depth – Maximum 6949.4 mm
Digging Reach – Maximum 10180.3 mm
Maximum Reach @ Ground Level 10027.9 mm
Arm Crowd Force – Iso 12200 kgf
Swing Speed 11.7 rpm
Bucket Weight - Kga Gp 935 kg
Quick Hitch Weight – Kga 306 kg
Total Operating Weight 24400 kg
Hydraulic System Type ​HydrauMind System
Selectable Work Modes 6
Economy Sub-Mode Selections 4
Main Pump Type Variable displacement piston
Maximum Flow Rate 439.1 L/min
