| Kondisi | Used |
|---|---|
| Lokasi | JAWA BARAT |

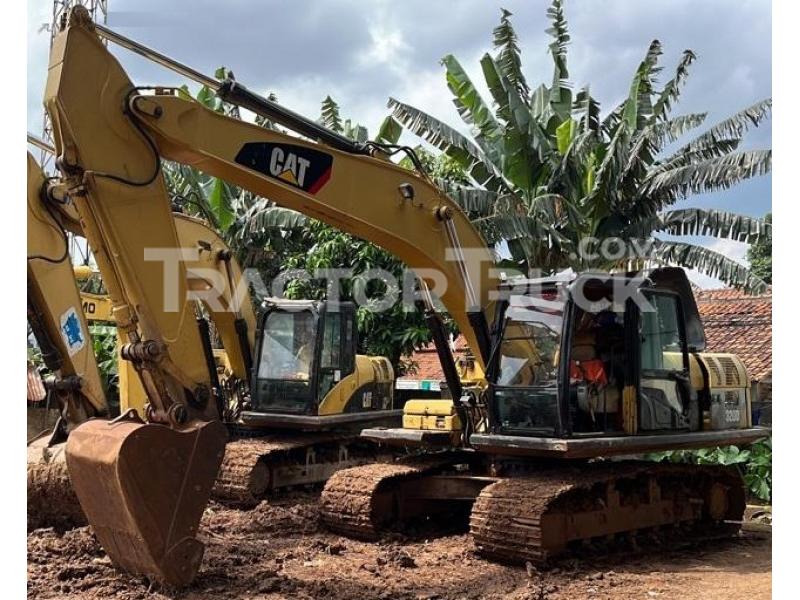

Dijual atas Excavator :
- Merek Caterpillar
- Model 320D
- Tahun 2008
- Masih memakai Fuel Injection Pump (FIP)
- Harga Rp. 445 Juta
Rp. 445 Jt
Technical Specifications
| Shipping Length Of Unit | 9440 mm |
|---|---|
| Shipping Height Of Unit | 3740 mm |
| Max Cutting Height | 9940 mm |
| Max Loading Height | 6940 mm |
| Max Reach Along Ground | 10760 mm |
| Max Vertical Wall Digging Depth | 6970 mm |
| Max Digging Depth | 7660 mm |
| Boom/Stick Option (Hex) 1 | Boom 18'7" (5680mm)/ Stick 12'8" (3900mm) |
| Shipping Length Of Unit | 9460 mm |
| Max Cutting Height | 9490 mm |
| Shipping Height Of Unit | 3030 mm |
| Max Loading Height | 6940 mm |
| Max Reach Along Ground | 9860 mm |
| Max Vertical Wall Digging Depth | 6060 mm |
| Max Digging Depth | 6720 mm |
| Boom/Stick Option (Hex) 2 | Boom 18'7" (5680mm)/ Stick 9'7" (2900mm) |
| Shipping Length Of Unit | 9460 mm |
| Max Cutting Height | 9290 mm |
| Max Loading Height | 6290 mm |
| Shipping Height Of Unit | 3050 mm |
| Max Reach Along Ground | 9460 mm |
| Max Vertical Wall Digging Depth | 5650 mm |
| Max Digging Depth | 6300 mm |
| Boom/Stick Option (Hex) 3 | Boom 18'7" (5680mm)/ Stick 8'2" (2500mm) |
| Shipping Length Of Unit | 9050 mm |
| Shipping Height Of Unit | 3280 mm |
| Max Cutting Height | 8930 mm |
| Max Loading Height | 5720 mm |
| Max Reach Along Ground | 8960 mm |
| Max Digging Depth | 5890 mm |
| Max Vertical Wall Dig Depth | 5360 mm |
| Boom/Stick Option (Hex) 4 | Boom 17'1" (5200mm)/ Stick 7'10" (2400mm) |
| Shipping Length Of Unit | 12680 mm |
| Shipping Height Of Unit | 3190 mm |
| Max Cutting Height | 13240 mm |
| Max Loading Height | 11150 mm |
| Max Reach Along Ground | 15590 mm |
| Max Digging Depth | 11740 mm |
| Max Vertical Wall Dig Depth | 11300 mm |
| Boom/Stick Option (Hex) 5 | Boom 29'1" (8850mm)/ Stick 20'7" (6280mm) |
| Ground Clearance | 450 mm |
| Height To Top Of Cab | 2950 mm |
| Width To Outside Of Tracks | 2800 mm |
| Length Of Track On Ground | 3265 mm |
| Tail Swing Radius | 2750 mm |
| Removal Counterweight Clearance | 1020 mm |
| Track Gauge | 2200 mm |
| Shoe Size | 600 mm |
| Drawbar Pull | 206.01 kN |
| Max Travel Speed | 5.5 km/h |
| Engine Make | 2236 |
| Engine Model | 3066 ATAAC |
| Net Power | 104.4 kw |
| Power Measured @ | 1800 rpm |
| Displacement | 6.4 L |
| Aspiration | Turbocharged |
| Operating Weight | 20330 kg |
| Fuel Capacity | 410 L |
| Cooling System Fluid Capacity | 25 L |
| Hydraulic System Fluid Capacity | 260 L |
| Engine Oil Capacity | 30 L |
| Swing Drive Fluid Capacity | 8 L |
| Hydraulic System Relief Valve Pressure | 34997.8 kPa |
| Hydraulic Pump Flow Capacity | 204.5 L/min |
| Swing Torque | 0 Nm |
| Swing Speed | 11.5 rpm |
| Reference Bucket Capacity | 0.9 m3 |
| Minimum Bucket Capacity | 0.5 m3 |
| Maximum Bucket Capacity | 1.2 m3 |
