| Kondisi | Used |
|---|---|
| Lokasi | BANTEN |

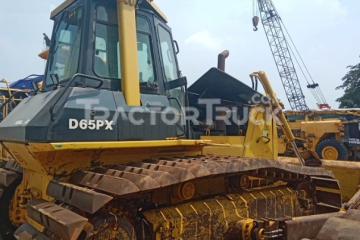

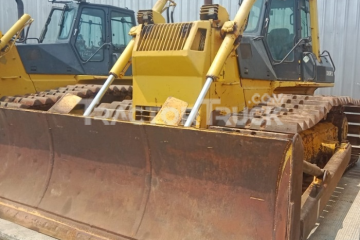

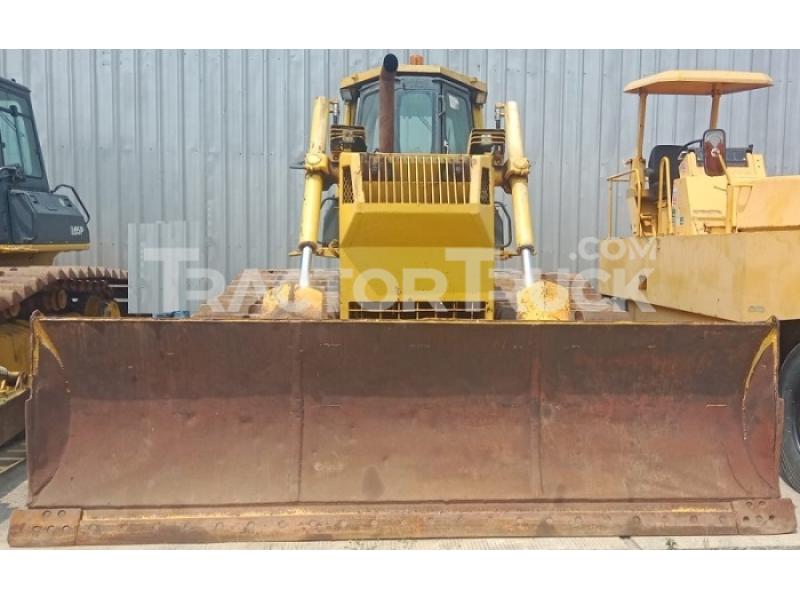

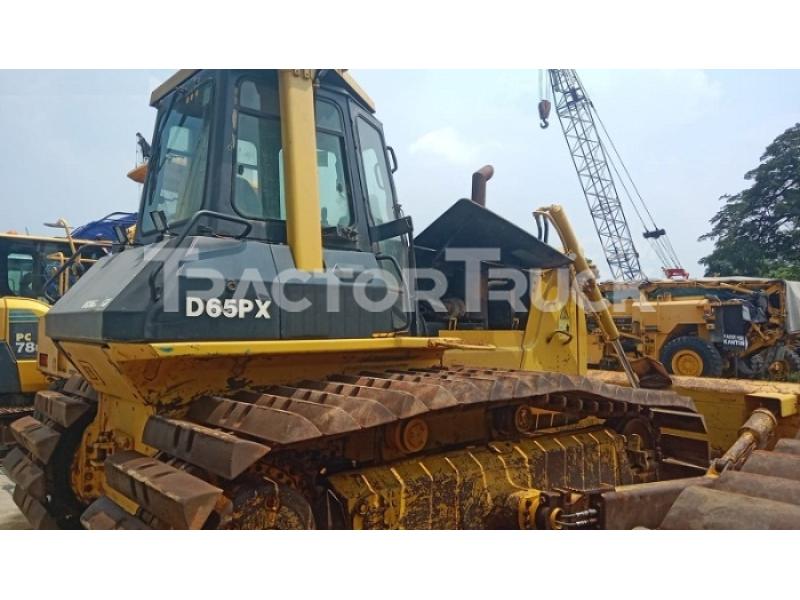

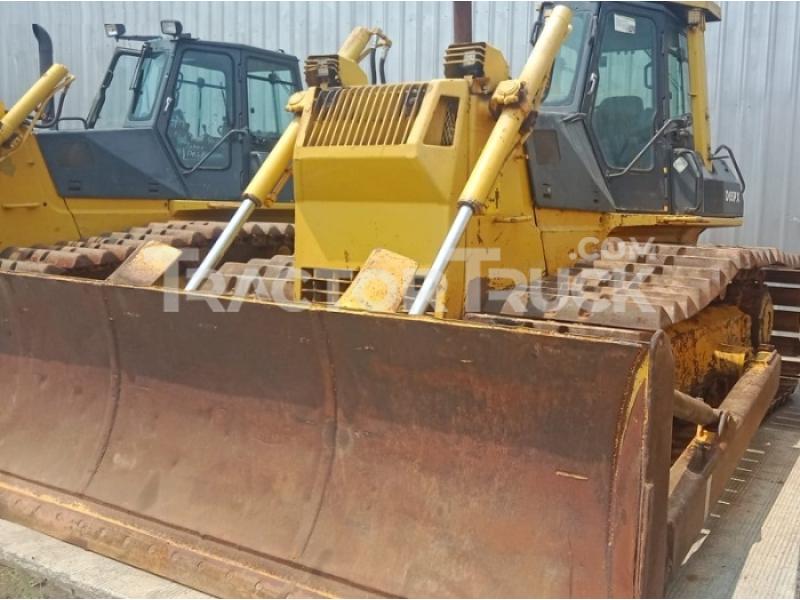

Dijual atas Unit Bulldozer :
- Merek Komatsu
- Model D65PX-12 LGP
- Ex Import/Built Up
- Masuk Indonesia tahun 2016
- Harga Rp. 800 Juta
Rp. 800 Jt
Technical Specifications
| Length W/ Blade | 5550.4 mm |
|---|---|
| Width Over Tracks | 3002.3 mm |
| Height To Top Of Cab | 3081.5 mm |
| Length Of Track On Ground | 3285.7 mm |
| Ground Clearance | 512.1 mm |
| Length W/Blade | 4431.8 mm |
| Track Gauge | 2051.3 mm |
| Standard Shoe Size | 950.2 mm |
| Number Of Shoes Per Side | 45 |
| Ground Pressure | 27.5 kPa |
| Number Of Carrier Rollers Per Side | 2 |
| Ground Contact Area | 6 m2 |
| Number Of Track Rollers Per Side | 8 |
| Track Pitch | 203.2 mm |
| Number Of Cylinders | 6 |
| Engine Make | 2238 |
| Engine Model | S6D125E-2 |
| Gross Power | 141.7 kw |
| Power Measured @ | 1950 rpm |
| Max Torque | 981.1 Nm |
| Displacement | 11 L |
| Aspiration | Turbocharged engine |
| Operating Weight | 19440 kg |
| Fuel Capacity | 406.2 L |
| Cooling System Fluid Capacity | 52.2 L |
| Engine Oil Capacity | 38.2 L |
| Powertrain Fluid Capacity | 48.1 L |
| Final Drives Fluid Capacity | 27.3 L |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 35 amps |
| Transmission Type | TF HSS |
| Number Of Forward Gears | 3 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 6.3 km/h |
| Max Speed - Reverse | 8 km/h |
| Pump Type | Double acting Piston |
| Relief Valve Pressure | 20600.2 kPa |
| Width | 3992.9 mm |
| Height | 1102.4 mm |
| Capacity | 3.7 m3 |
| Cutting Depth | 541 mm |
