Kondisi | Used |
---|---|
Lokasi | KALIMANTAN TIMUR |

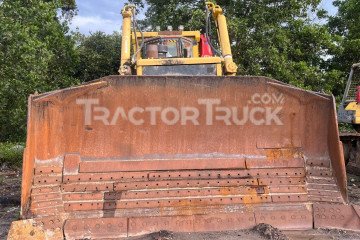

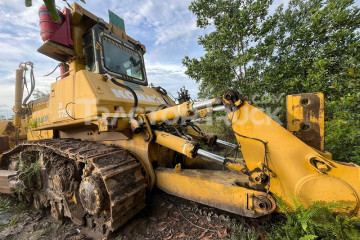

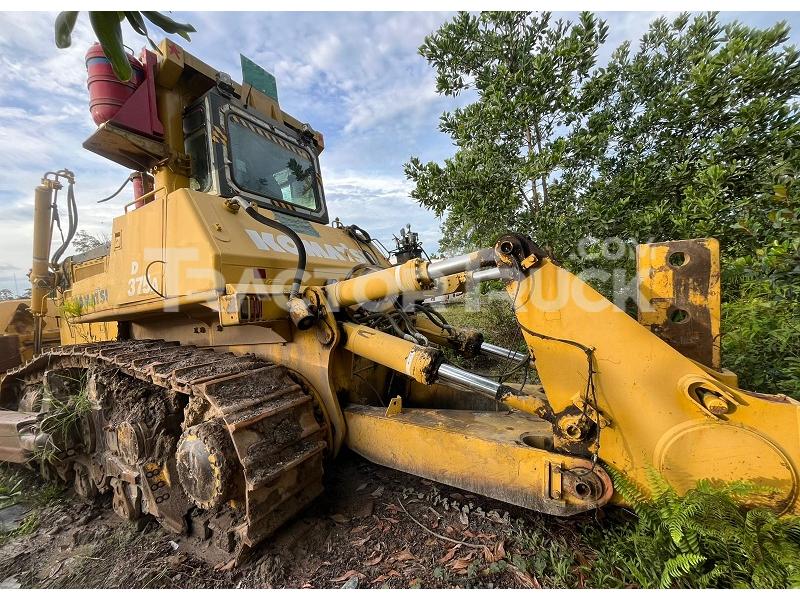

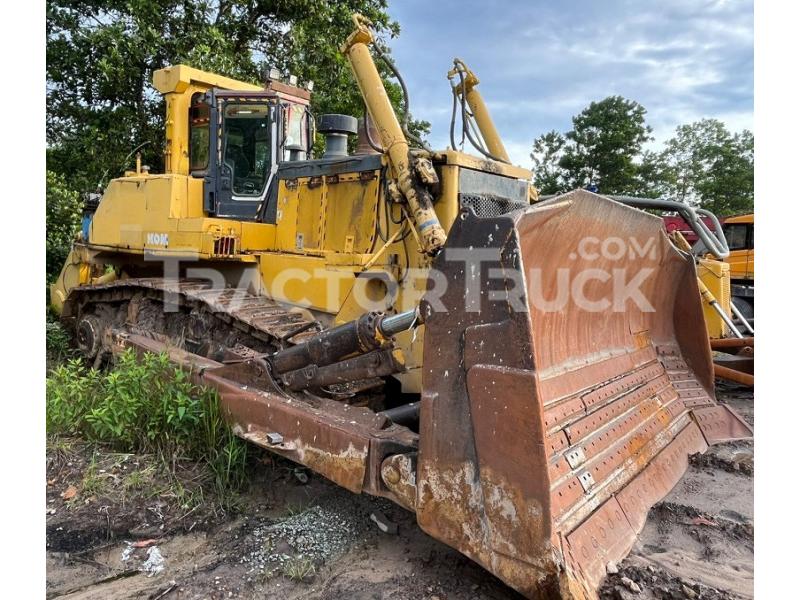

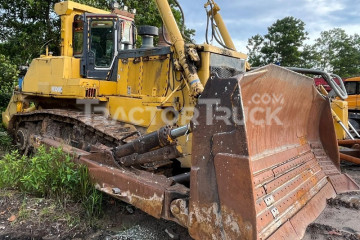

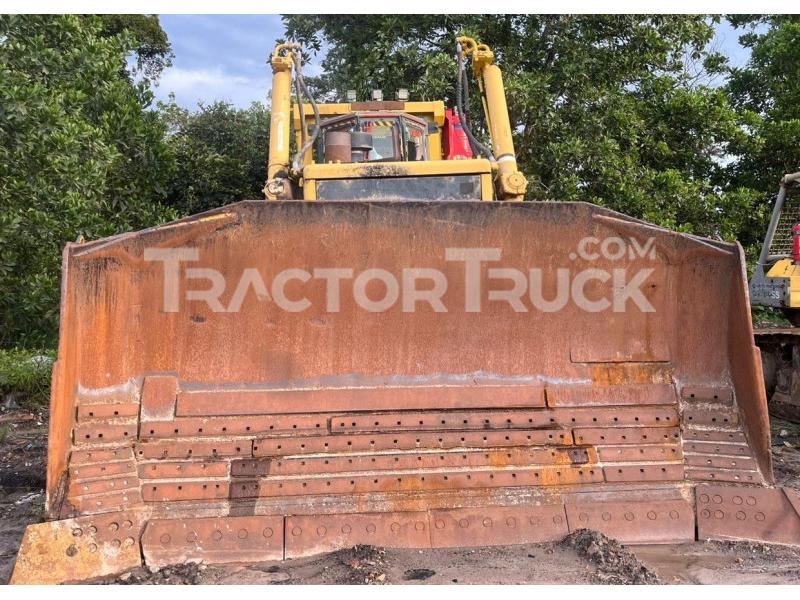

Bulldozer :
- Brand Komatsu
- Model D375A-6
- As Is Condition dan Ready for Use (RFU)
- Location Kalimantan / Borneo - Indonesia
- Year Manufacturing 2011
- Availabe 2 (two) Units
- Price US$ 150,000 per Unit
Rp. Call
Technical Specifications
Height To Top Of Cab | 4285.5 mm |
---|---|
Length Of Track On Ground | 3980.7 mm |
Ground Clearance | 612.6 mm |
Track Gauge | 2502.4 mm |
Length | 10485.1 mm |
Number Of Shoes (Each Side) | 41 |
Number Of Shoes Per Side | 41 |
Number Of Track Rollers Per Side | 8 |
Shoe Size | 610.1 mm |
Suspension | Oscillating equaliser bar and pivot shaft |
Track Rollerframe | Cylinder high-tensile-strength steel construction |
Ground Contact Area | 4.9 m2 |
Ground Pressure | 107.6 kPa |
Grouser Height | 90.2 mm |
Number Of Carrier Rollers Per Side | 2 |
Minimum Turning Radius | 4206.2 mm |
Horsepower | Gross-Sae J1995 635.7 |
Horsepower | Net-Iso 9249 610.2 |
Horsepower | Net-Sae J1349 610.2 |
Fan Drive Method | Hydraulic |
Lubrication Method | Gear pump force lubrication |
Filter | Full flow |
Number Of Cylinders | 6 |
Engine Make | 2238 |
Engine Model | SAA6D170E-5 |
Governor | All-speed and mid-range electronic |
Power Measured @ | 1800 rpm |
Displacement | 23.2 L |
Aspiration | Turbochanged |
Bore | 170.2 mm |
Stroke | 170.2 mm |
Maximum Speeds Fwd | 11.9 km/h |
Maximum Speeds Rev | 15.9 km/h |
Transmission | Torqflow |
Number Of Speeds - Forward | 3 |
Number Of Speeds - Reverse | 3 |
Transmission | Bevel Gear And Steering System |
Fuel Tank | 1200.4 L |
Final Drive | 65.1 L |
Engine Oil | 86.3 L |
Coolant | 120.4 L |
Blade Capacity | 18.5 m3 |
Blade Type | Semi-U |
Blade Length | 4696.5 mm |
Blade Height | 2265.7 mm |
Blade Cut Depth | 736.6 mm |
Ripper Type | Adjust |
Ripper Depth | 1140.5 mm |
Transmission Type | Torqflow |
Operating Weight | 71640 kg |
Ripper Weight | 6800 kg |
Blade Weight | 10920 kg |
Hydraulic System Type | Closed-center Load Sensing System (CLSS) |
